Description

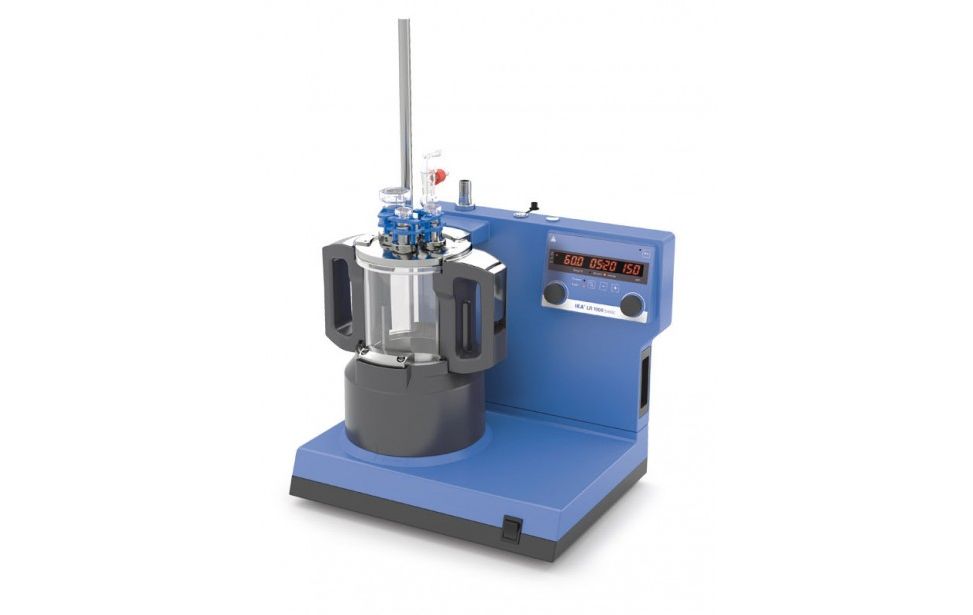

LR 1000 basic Package

The LR 1000 basic is a cost efficient, modular laboratory reactor designed for optimizing chemical reaction processes as well as for mixing, dispersing and homogenization applications at the laboratory scale. The reactor is especially designed for the unique applications requirements that define the cosmetic and pharmaceutical industries. The temperature of the medium can be as high as 120 ºC. The temperature of the heating source, which is located at the bottom of the vessel, is controlled accordingly to reach the set temperature inside the medium. A PT 100.30 temperature sensor and the corresponding receptacle LR 1000.61 for the lid are included with this package.

- Digital display for monitoring the speed and temperature

- Expandable for use with the ULTRA- TURRAX® T 25 digital (Accessory)

- Standard joint fittings on the lid: 1x NS 29, 3x NS 14 for flexible adaptation of further equipment

- Vacuum valve included with delivery

- Anchor stirrer with PTFE-scrapers available (Accessory)

- Connections to attach a cooling source to the back of the unit

- Manual adjustable safety circuit

- Integrated safety shutdown when vessel or lid is removed from the base

Technical data :

Support rod diameter (with integrated fastening on stand) : 16mm

Viscosity max. : 100000mPas

Nominal torque : 3Nm

Attainable vacuum : 25mbar

Working temperature max. : 120°C

Speed max. : 150rpm

Speed min. : 10rpm

Weight : 16kg

Heat control accuracy of medium with sensor : 0.2±K

Voltage : 230V

Usable volume max. : 1000ml

Heat output : 1000W

Cooling medium temperature min. : 3°C

Cooling medium permissible operating pressure : 1bar

Width : 443mm

Usable volume without disperser tool min. : 500ml

Depth : 295mm

Height : 360mm

Power input : 1200W

Usable volume with disperser tool min. : 300ml

Adjustable safety circuit, lower temperature value deviation : 10±K

Speed deviation : 5±rpm

Adjustable safety circuit, upper temperature value : 225°C

Adjustable safety circuit, lower temperature value : 47°C

Adjustable safety circuit, upper temperature value deviation : 20±K

Temperature measurement resolution : 0.1K

Speed min (adjustable) : 10rpm

Speed display : 7 segment LED

Temperature display : yes

Connection for ext. temperature sensor : PT 100

Speed control : 1 RPM steps

Type of cooling : flow

Heat control : LED
