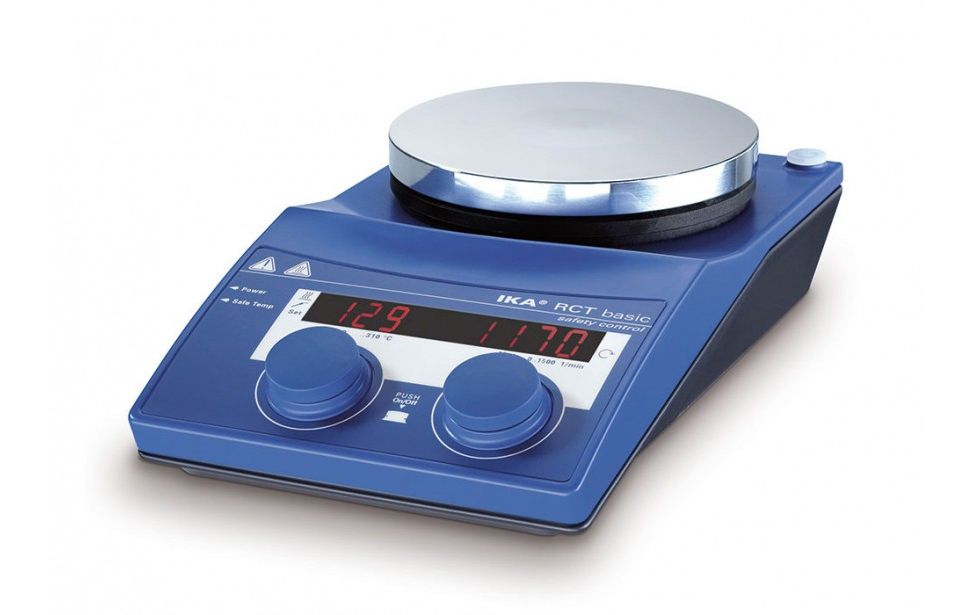

RCT basic

Magnetic Stirrers with Heating

The bestseller in laboratories: Strong motor for a higher range of speeds, additional temperature control mode for faster heating of medium

Specifications :

- Integrated temperature control

- Incl. PT 1000 temperature sensor (PT 1000.60)

- Exact temperature and speed setting via digital display, even when switched off

- Set safety temperature limit displayed digitally

- Hot Top indicator >> hot surface warning to prevent burns!

- Digital error code display

- With adjustable safety circuit of heating plate temperature (50 - 360 °C)

- Safety magnetic stirrer with heating, suitable for unsupervised operation

- Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control

- High level of safety thanks to improved heat control technology

- Enclosed assembly (IP 42) guarantees long service life

- Aluminium heating plate for optimum heat transfer

- Improved magnetic adhesion

- Incl. protection cover H 100

- Max. stirring quantity (H2O): 20 l

- Speed range: 50 - 1500 rpm

- Temperature range: RT - 310 °C

Technical data :

- Adjustable safety circuit min. : 50°C

- Adjustable safety circuit max. : 360°C

- Set-up plate dimensions : Ø 135mm

- Self-heating of the hotplate by max. stirring (RT:22°C/duration:1h) : 28+K

- Heating temperature min. : Room temp. + device self heating°C

- Heating temperature max. : 310°C

- Speed min. : 50rpm

- Heat output : 600W

- Heating rate heating plate : 6.5K/min

- Stirring bar length min. : 20mm

- Temperature setting range min. : 0°C

- Depth : 270mm

- Height : 85mm

- Weight : 2.5kg

- Power input : 650W

- Width : 160mm

- Setting accuracy speed : 10rpm

- Temperature setting range max. : 310°C

- Temperature setting resolution of heating plate : 1K

- Temperature setting resolution of medium : 1K

- Motor rating output : 9W

- Stirring bar length max. : 80mm

- Connection for ext. temperature sensor : PT1000

- Set-up plate material : Aluminium alloy

- Speed display actual-value : LED

- Temperature display set-value : LED

- Heat control : Turning knob

- Protection class according to DIN EN 60529 : IP 42

- Speed control : Turning knob

- Direction of rotation : right

- Speed display set-value : LED

- Temperature display actual-value : LED

- Temperature unit : °C

- Speed max. : 1500rpm

- Stirring quantity max. per stirring position (H2O) : 20l

- Voltage : 220 - 230V

- Frequency : 50/60Hz

- Permissible relative humidity : 80%

- Sensor in medium detection (Error 5) : yes

- Permissible ambient temperature min. : 5°C

- Permissible ambient temperature max. : 40°C

- Number of stirring positions : 1
