Description

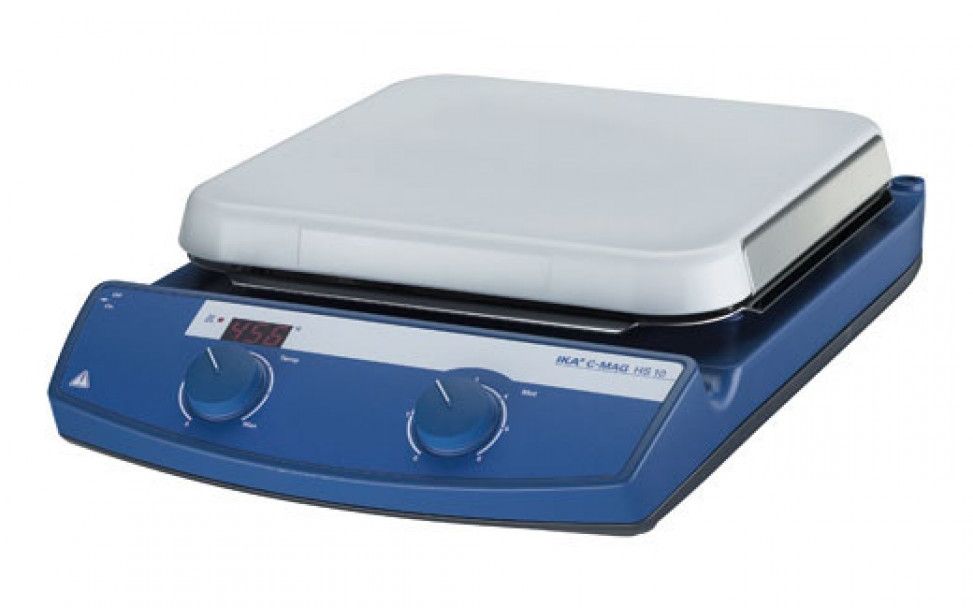

C-MAG HS 10

Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.

- Powerful motor for stirring quantities of up to 15 l (H2O)

- Fixed safety circuit of 550 °C

- Hot Top indicator >> hot surface warning to prevent burns!

- Exact temperature setting via digital display (LED)

- Digital error code display

- Elevated control panel for protection against leaking liquids

Technical data :

- Heating rate heating plate : 5K/min

- Heating temperature max. : 500°C

- Stirring bar length max. : 80mm

- Motor rating output : 1.5W

- Voltage : 230V

- Weight : 6kg

- Heating temperature min. : 50°C

- Fixed safety circuit : 550°C

- Depth : 415mm

- Power input : 1520W

- Set-up plate dimensions : 260 x 260mm

- Heat output : 1500W

- Stirring quantity max. per stirring position (H2O) : 15l

- Height : 105mm

- Speed min. : 100rpm

- Connection for ext. temperature sensor : ETS-D5

- Set-up plate material : ceramic

- Heat control : LED

- Speed control : scale 0 - 6

- Protection class according to DIN EN 60529 : IP 21

- Direction of rotation : left

- Permissible ambient temperature min. : 5°C

- Speed max. : 1500rpm

- Width : 300mm

- Frequency : 50/60Hz

- Permissible relative humidity : 80%

- Permissible ambient temperature max. : 40°C

- Number of stirring positions : 1
