- Quick-assembly and disassembly
Each component can be removed easily by hand for cleaning and autoclaving to prevent biofilms and eliminates sources of contamination.
- Convertible funnel adaptor
Convertible funnel adaptor design allows user to fit their desired funnel (reusable or disposable) easily.
- Innovative vent valve design
An adjustable vent valve integrated with the pipe can eliminate water hammer phenomenon and help drain out residual waste water.
- Quick-Fit hose barb
Detachable hose barb can be connected to either side of the manifold quickly towards the vacuum source.
- Individual control valve
Each branch permits individual control.
- Compatible to different sizes of funnels
MultiVac 300-MB / 600-MB manifolds are available to 100, 300, 500ml funnel at option.
- Filtration for microbiology test
- Chemical experiment
- General laboratory filtration
- Number of branch : 3
- Filter diameter : 47 mm / 50 mm
- Funnel capacity : 100 ml / 300 ml / 500 ml
- Effective filtration area : 9.6 cm²
- Hose barb : 5/16 inch (8mm)
- Dimension (LxWxH) : 48 x 13 x 11 cm
- Body : SUS316
- Control valve : SUS316
- Funnel support base : SUS316
- Membrane support : SUS316
- Handle : Aluminum
- Connector : SUS316
Ordering Information :

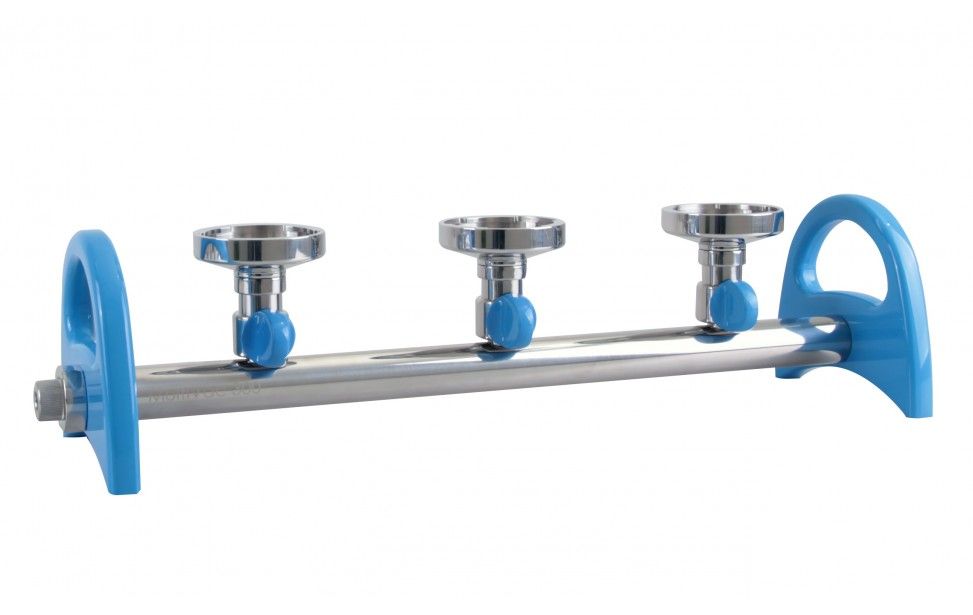

180300-02, MultiVac 300-MB, 3-Places Stainless Steel Manifold
