Request for Quote

Description

Rocker 300 - MF 31

Filtration System

Features :

- No air pollution, maintenance free

Rocker series pumps are piston-driven, no need for lubricant, regular oil changes and maintenance with no oil pollution.

- The patented magnetic design

Rocker 300 - MF 31 strong magnetic seal allows one-handed operation, prevents possible twisting and tearing of the membrane.

International safety certification :
- CE certification
- CSA certification (Rocker 300)

Applications :
- Air sampling
- Suspended solid test
- Vacuum Filtration

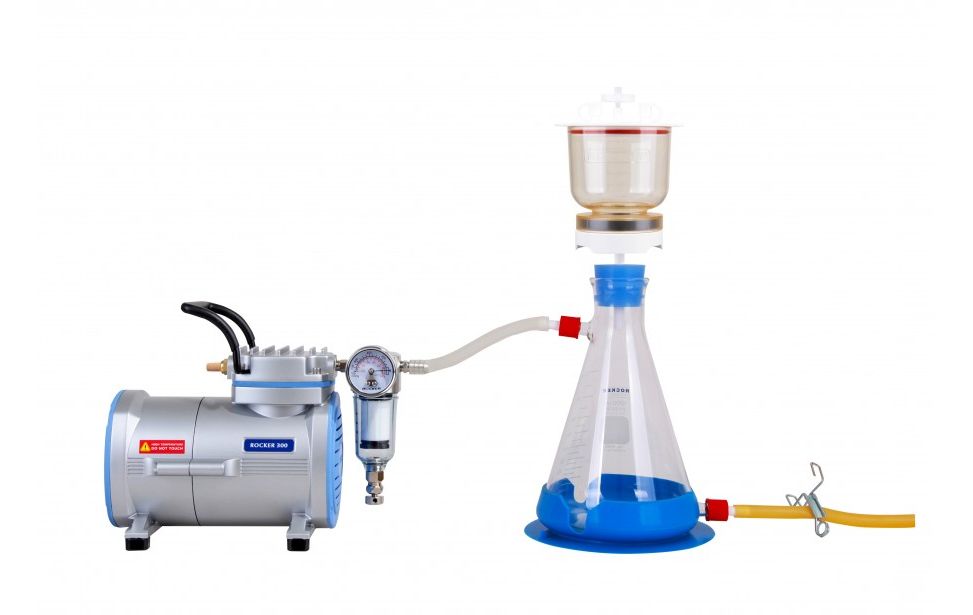

Complete system includes :
- Rocker 300 Oil Free Vacuum Pump
- MF 31 Filtration Set
- Silicone Tube (1m)

Specification (110V, 60Hz) :
- Max. flow rate : 23 l/min
- Max. vacuum : -680 mmHg
- Capacity : 300 ml / 1000 ml
- Filter diameter : 47 mm / 50 mm
- Effective filtration area : 13.1 cm²
- Hose barb : 5/16 inch (8 mm)

Specification (220V, 50Hz) :
- Max. flow rate : 20 l/min
- Max. vacuum : -680 mmHg
- Capacity : 300 ml / 1000 ml
- Filter diameter : 47 mm / 50 mm
- Effective filtration area : 13.1 cm²
- Hose barb : 5/16 inch (8 mm)

Material :
- Filter funnel : PES
- Funnel support base : PES
- Membrane support : PES
- Waste bottle : Borosilicate glass (with drain)
- Funnel lid : PP

Ordering Information :

167311-11(22), Rocker 300 - MF 31, Vacuum Filtration System, complete set includes :
- Rocker 300, Vacuum Pump
- MF 31, Filtration Set
- Silicone Tube (1m)
