Description

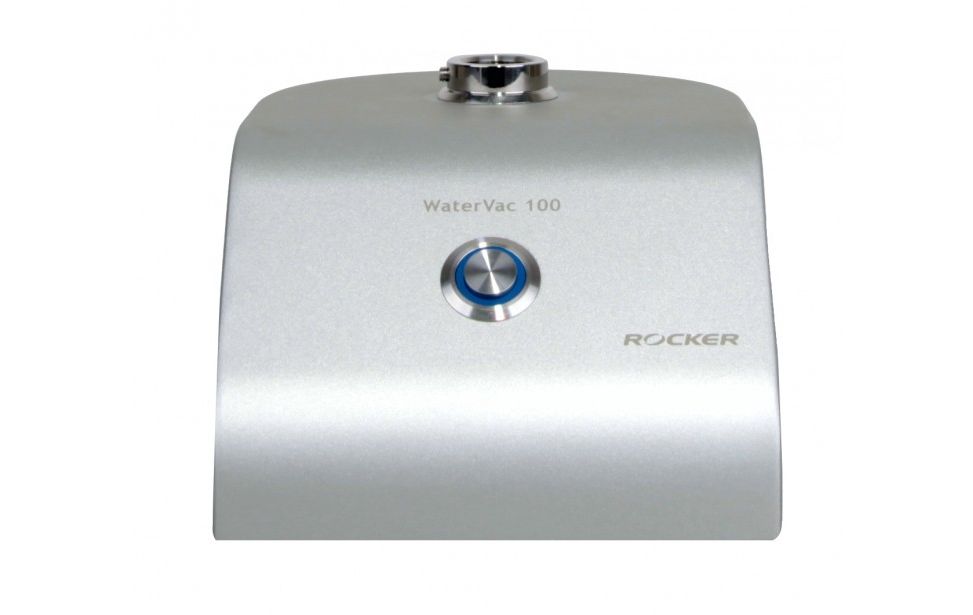

WaterVac 100 / WaterVac 100-MB / WaterVac 100-MS

Vacuum filtration system

Introduction :

The WaterVac 100 is an unique vacuum filtration system which can generate sufficient vacuum for filtration through built-in air/water pump and drain the waste liquid directly. Compared with traditional filtration equipment, WaterVac 100 doesn’t need additional suction flasks or bottles to collect the waste liquid which can help save much bench space to make it ideal for work in Laminar Flow Cabinet.

The WaterVac 100 is ideal for sample filtration in many laboratory applications such as Microbiology Test in food, pharmaceutical, beverage industries and Suspended Solid test for municipal, surface, ground and drinking water. Also meets Membrane Filter (MF) Technique filtration parameters described in U.S. EPA, ISO and ASTM standards .

Benefits :

- Save Space
No need of suction flask and waste bottle saving much bench space

- Save Time
No need of taking time to empty waste bottle

- Safety
No worry about waste liquid being sucked into pump

- Versatile
Replaceable funnel base design makes it compatible with various kinds of filter holder

- Easy Operation
Simply put on membrane on filter holder and push on/off button to start filtration easily.

Applications :
- MF Technique for analyzing aqueous-based fluids for microbial contamination.
- Suspended Solid test for municipal, surface, ground and drinking water.
- General filtration which no need to collect filtrate

Specification :
- Max. vacuum : 540 mmHg
- Max. flowrate (air) : 2.2 LPM
- Max. flowrate (clean water) : 0.5 LPM
- Weight : 1.16 Kg
- Power : DC 12 V, 1.5A,
- Transformer : 100-240VAC, 50/60Hz
- Max. ambient temperature : 5 - 40 °C
- Dimension : 170 x 120 x 96 mm (LxWxH)

Materials :
- Housing material - stainless steel with powder painting
- Valve plate - EPDM(Ethylene Propylene Diene Monomer)
- Diaphragm - EPDM(Ethylene Propylene Diene Monomer)
- Fluid Path inlet / outlet port – Stainless steel # 316
- O-ring - FKM
- Fluid path hose - silicone tube
- Draining hose - silicone , Ø4 / Ø8mm, 2 meter.

Ordering lnformation :

- 190100- 01, WaterVac 100 vacuum filtration system (needs adaptor) with US plug

- 190100-02, WaterVac 100 vacuum filtration system (needs adaptor) with EU plug

- 190110-01, WaterVac 100-MS with US plug (include silicon stopper No.8 adaptor)

- 190110-02, WaterVac 100-MS with EU plug (include silicon stopper No.8 adaptor)

- 190120-01, WaterVac 100-MB with US plug (with Rocker's SS filter holder base, need funnel)

- 190120-02, WaterVac 100-MB with EU plug with Rocker's SS filter holder base, need funnel)

- 190100-10, Silicone stopper No.8 adaptor

- 190100-20, Rocker's SS filter holder base

- 190100-73, SUS 316 Adaptor for Millipore 100/250ml plastic funnel

- 190100-74, SUS 316 Adaptor for Sartorius 16A07 plastic funnel

- 190100-75, SUS 316 Adaptor for Pall 4870(100ml), 4871(250ml) filter funnel

- 190100-76, SUS 316 Hose barb adaptor(Ø4-8mm)

- 167103-61, Rocker's stainless steel funnel ,100ml

- 167103-63, Rocker's stainless steel funnel ,300ml

- 167103-65, Rocker's stainless steel funnel ,500ml

- 200300-01, MF 3, 300ml Magnetic Filter Holder

- 200500-01, MF 5, 500ml Magnetic Filter Holder

- 167100-20, Pall A/E glass fiber membrane (1μm), 100/PK

- 167100-52, Pall GN-6 MCE membrane (0.45μm), 200/PK
