Description

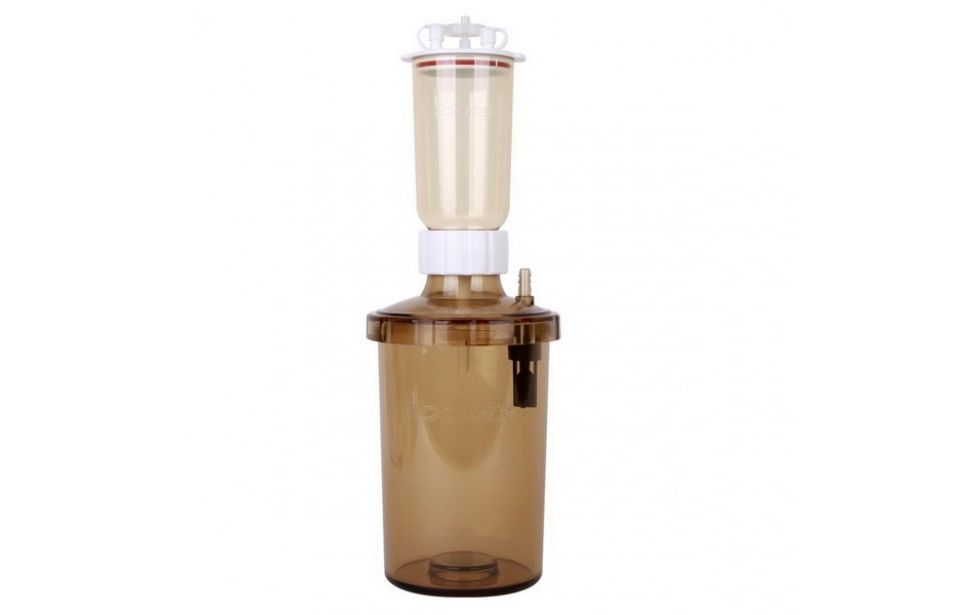

LF 30

Filtration Set

Complete Set Include :
- 300 ml PES filter holder
- 1200 ml PC waste bottle with cover
- Overflow protection
- Silicon stopper (No.16)
- Cap with suction fitting

Features :

- Spin-lock connection facilitates fast and stable installation without clamp.
- Excellent smash, high temperature resistance and autoclavable.
- Built-in overflow protection to keep the filtrate from overflowing when waste bottle is full.
- Funnel graduated in 50ml, receiver in 100ml increments for easy measurement.

The waste battle and filter holder offer excellent smash and high temperature resistance and autoclavable.

Applications :
- General filtration
- Waste suction

Material :

- Filter funnel - PES
- Funnel support base - PC
- Membrane support - PP
- Syringe filter - PTFE
- Receiver flask - PC

Specification :

- Funnel capacity : 300 ml
- Flask capacity : 1200 ml

- Filter diameter: 47mm / 50mm
- Effective filtration area : 12.5 cm²
- Hose barb : 5/16 inch
- Syringe filter : 25 mm, 0.2 μm

Ordering Information :

- 197010-30, LF 30, 47 mm Filtration Set

- 197000-01, 300ml PES filter holder includes: 194225-01 Syringe filter, 197000-36 PP lid kit, 197000-34 PES funnel (300 ml), 197000-37 Support screen, 197000-35 PC support base, 167110-17 Silicone stopper (No.16)

- 197000-11-PC, PC waste bottle with cover, 1200 ml
- 197000-40, Black PP cap
- 197000-32-PC, PC cover
- 197000-39, Overflow protection
- 197000-31-PC, PC bottle, 1200 ml
