Description

LF 33

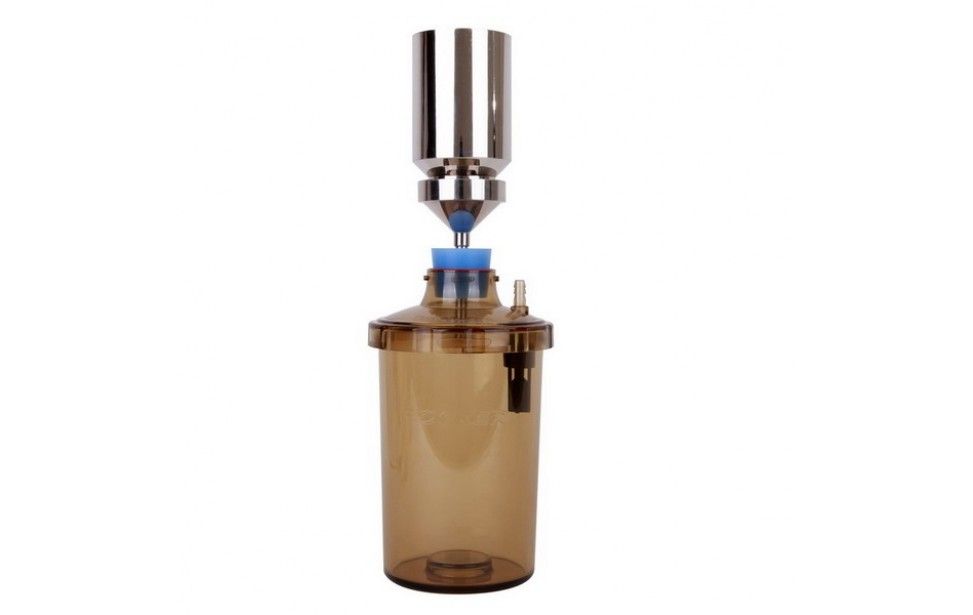

Filtration Set

Complete Set Include :
- 100 ml Stainless Steel filter holder
- 1200 ml PC waste bottle with cover
- Overflow protection
- Silicon stopper (No.16)
- Cap with suction fitting

Features :

- Spin-lock connection facilitates fast and stable installation without clamp.
- Stainless steel funnel offers excellent chemical resistance and can be fastly sterilized by flame.
- Built-in overflow protection to keep the filtrate from overflowing when waste bottle is full.

Applications :
For filtration requiring the sterilization such as microbiology test or use for purification of corrosive liquid, solvent etc.

Material :

- Filter funnel - SUS316
- Funnel support base - SUS316
- Membrane support - SUS316
- Water bottle - PC

Specification :

- Funnel capacity : 300 ml
- Flask capacity : 1200 ml

- Filter diameter: 47mm / 50mm
- Effective filtration area : 9.6 cm²
- Hose barb : 5/16 inch
- Funnel graduation : 100 ml

Ordering Information :

- 197010-33, LF 33, 47 mm Filtration Set
- 167103-30, 300 ml Stainless steel filter holder
- 167103-63, Stainless steel funnel, 300 ml
- 167100-31, Stainless steel support screen
- 167103-60, Stainless steel support base
- 167110-17, Silicone stopper (No.16)
- 197000-11-PC, PC waste bottle with cover, 1200 ml
- 197000-40, Black PP cap
- 197000-32-PC, PC cover
- 197000-39, Overflow protection
- 197000-31-PC, PC bottle, 1200 ml
