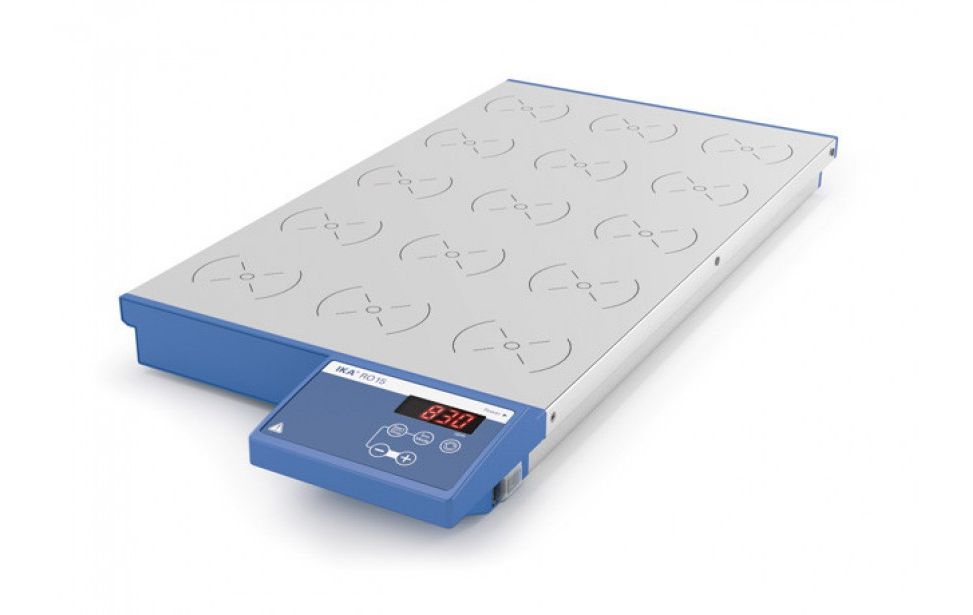

RO 15

Magnetic Stirrers

15-position digital magnetic without heating, designed for synchronous heating and stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. Speed remains constant, even when load changes. The closed and compact design allows easy cleaning and protects the equipment against the penetration of liquids. Additionally, a removable transparent anti-slip mat is included.

- Adjustable reverse operation

- Wear free magnetic coils

- Error code display

- Easy operation with touch keypad

- Suitable for continuous operation

- Speed range: 0 - 1200 rpm

Technical data :

- Stirring bar length min. : 25mm

- Depth : 570mm

- Speed max. : 1200rpm

- Stirring quantity max. per stirring position (H2O) : 0.4l

- Speed deviation of individual stirring positions : 0%

- Height : 60mm

- Set-up plate dimensions : 280 x 470mm

- Current consumption : 1500mA

- Power input : 40W

- Weight : 7kg

- Width : 280mm

- Stirring position distance : 90mm

- DC Voltage : 24V=

- Speed min. : 0rpm

- Number of stirring positions : 15

- Protection class according to DIN EN 60529 : IP 40

- Set-up plate material : stainless steel 1.4301

- Stirring bar length max. : 30mm

- Permissible ambient temperature min. : 5°C

- Frequency : 50/60Hz

- Voltage : 100 - 240V

- Permissible relative humidity : 80%

- Permissible ambient temperature max. : 40°C

- Speed control : 10 RPM Steps
