Description

Color Squid White

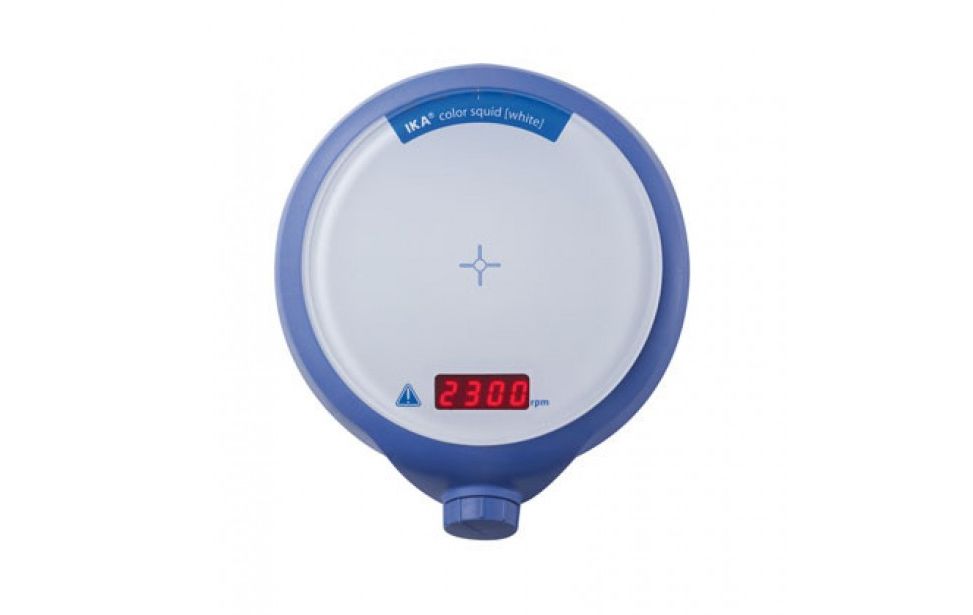

Small magnetic stirrer with glass surface different motives.

- Digital speed display (LED)

- Electronically controlled motor for more capacity

- Higher speed range from 0 - 2.500 rpm

- Max. stirring quantity 1 l

- Outstanding chemical resistance due to glass top and synthetic bottom made of TPC-ET

- Recyclable materials

Technical data :

- Permissible ambient temperature min. : 5°C

 -Permissible ambient temperature max. : 40°C

- Weight : 0.54kg

- Height : 45mm

- Depth : 160mm

- Permissible relative humidity : 80%

- Voltage : 100 - 240V

- Current consumption : 300mA

- DC Voltage : 12V=

- Power input : 4W

- Frequency : 50/60Hz

- Width : 145mm

- Setting accuracy speed : 50rpm

- Speed display set-value : LED

- Protection class according to DIN EN 60529 : IP 54

- Direction of rotation : right

- Speed control : Turning knob

- Set-up plate material : glass

- Stirring quantity max. per stirring position (H2O) : 1l

- Motor rating output : 2W

- Set-up plate dimensions : Ø 115mm

- Stirring bar length max. : 30mm

- Speed min. : 0rpm

- Speed max. : 2500rpm

- Number of stirring positions : 1
