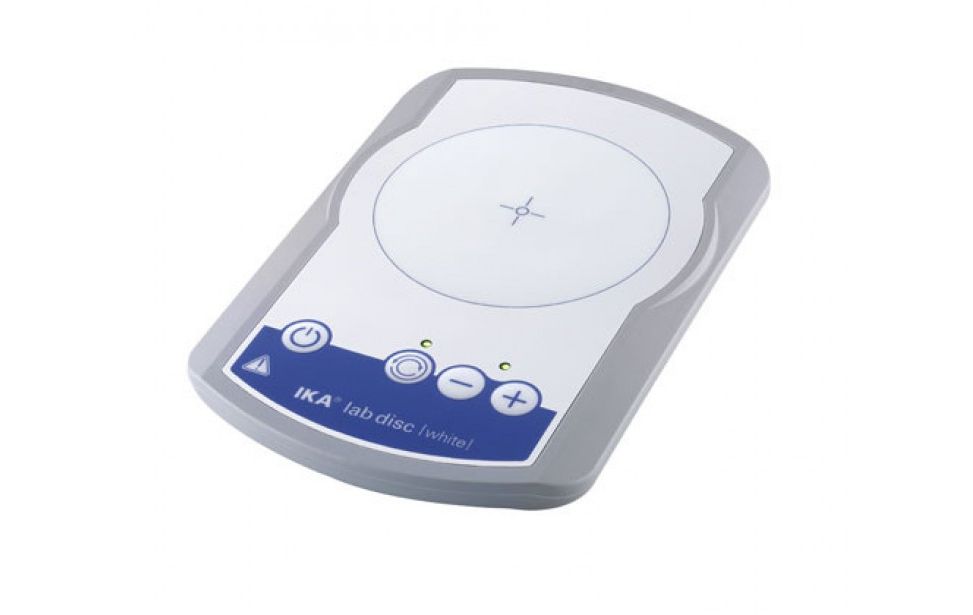

Lab Disc White
Ultra-flat compact magnetic stirrer, guaranteed with modern magnet coil technology. Wear-free drive with no moving parts. To ensure better mixing, the lab disc can reverse direction of rotation automatically every 30 seconds.
- High IP protection class (IP 65)
- Set-up plate and casing made from chemically resistant materials
- Slip-proof, safe stand
- Max. stirring quantity (H2O): 800 ml
- Speed range: 15 - 1500 rpm
Technical data :
- Set-up plate dimensions : Ø 100mm
- Stirring bar length max. : 25mm
- Speed min. : 15rpm
- Speed max. : 1500rpm
- Width : 117mm
- Depth :180mm
- Power input : 5W
- Weight : 0.3kg
- Height : 12mm
- Motor rating output : 3W
- Motor rating input : 5W
- Permissible ambient temperature min. : 5°C
- Protection class according to DIN EN 60529 : IP 65
- Set-up plate material : polyester
- Permissible ambient temperature max. : 40°C
- Permissible relative humidity : 80%
- Stirring quantity max. per stirring position (H2O) : 0.8l
- Frequency : 50/60Hz
- Voltage : 100 - 240V
- Number of stirring positions : 1
