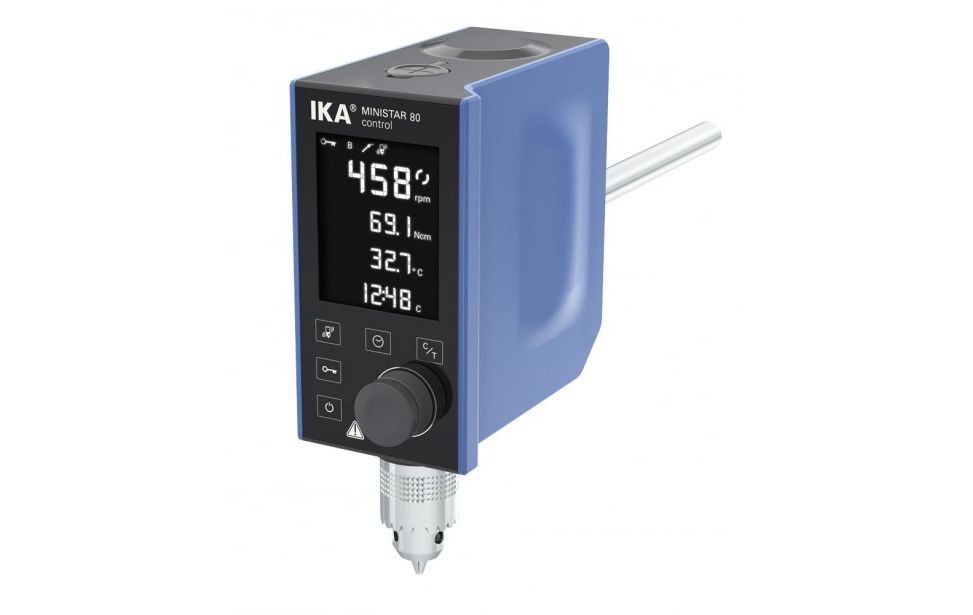

MINISTAR 80 control

Overhead Stirrers

The new MINISTAR series by IKA: Developed using the latest cutting-edge technology, this high-tech overhead stirrer with its compact design is ideal for special applications.
Combining high performance with particular excellence, they require minimum space and come with a lifetime guarantee.

- Hardened glass enclosed, fast response display for maximum visibility and chemical resistance

- State-of-art vibration sensors detect deviations from permissible thresholds and automatically stop the process

- Clear display for all essential information at a glance

- Integrated timer / counter for the control of kinetic sensitive reactions and reminders

- Viscosities up to 60,000 mPas and volumes of up to 50 l

- Continuously adjustable speed between 0/30 – 500 rpm

- USB interface, e.g. for documenting parameters using labworldsoft® or installing firmware updates

- Intuitive and simple handling; touch-sensitive surface for long service life

- Temperature reading on display

- Chemical resistant housing

- Key lock function

- Microprocessor-controlled speed governor for constant rotational speed, even with changes in viscosity

Technical data :

- Viscosity max. : 60000mPas

- Speed min. : 0/30rpm, 30rpm

- Motor rating output : 46W

- Torque max. at stirring shaft : 80Ncm

- Torque max. at stirring shaft at 60 1/min (overload) : 80Ncm

- Torque max. at stirring shaft at 1.000 1/min : 80Ncm

- Torque max. at stirring shaft at 100 1/min : 80Ncm

- Motor rating input : 60W

- Stirring quantity max. per stirring position (H2O) : 50l

- Accuracy of temperature measurement : ±0.5 + tolerance PT1000 (DIN IEC 751 Class A)K

- Time setting max. : 6000min

- Limit deviation temperature sensor : ≤ ± (0.15 + 0.002xITI)K

- Output max. at stirring shaft : 42W

- Communication distance (depend onbuilding) max. : 150m

- Speed range I: speed min. (at 50 Hz) : 30rpm

- Speed range I: speed min. (at 60 Hz) : 30rpm

- Depth : 154mm

- Width : 70mm

- Height : 193mm

- Weight : 1.72kg

- Current consumption : 2900mA

- Power input : 69W

- Torque I max. : 80Ncm

- Deviation of torque measurement I : 8±Ncm

- Chuck range max. diameter : 8mm

- Speed range I: speed max. (at 60 Hz) : 500rpm

- Hollow shaft, inner diameter : 8.5mm

- Nominal torque : 0.8Nm

- Temperature measuring range max. : 350°C

- Time setting min. : 0min

- Deviation of speed measurement n > 300rpm : 1±%

- Deviation of speed measurement n < 300rpm : 3±rpm

- Connection for ext. temperature sensor : PT1000

- Temperature display : yes

- Motor principle : Brushless DC

- Housing material : alu-cast coating / thermoplastic polymer

- Torque measurement : trend

- Torque display : yes

- Fastening on stand : extension arm

- Hollow shaft (push-through - when stopped) : yes

- Timer : yes

- Protection class according to DIN EN 60529 : IP 54

- USB interface : yes

- Speed display : LCD

- Stirring element fastening : chuck

- Timer display : LCD

- Speed control : electronic, Turning knob

- Permissible ambient temperature min. : 5°C

- Chuck range min. diameter : 0.5mm

- Speed range I: speed max. (at 50 Hz) : 500rpm

- Extension arm diameter : 13mm

- Extension arm length : 160mm

- Temperature measurement resolution : 0.1K

- Setting accuracy speed : 1±rpm

- Temperature measuring range min. : -10°C

- DC Voltage : 24V=

- Permissible relative humidity : 80%

- Permissible ambient temperature max. : 40°C

- Voltage : 100 - 240V

- Frequency : 50/60Hz

- Speed max. : 500rpm

- Permissible ON time : 100%
