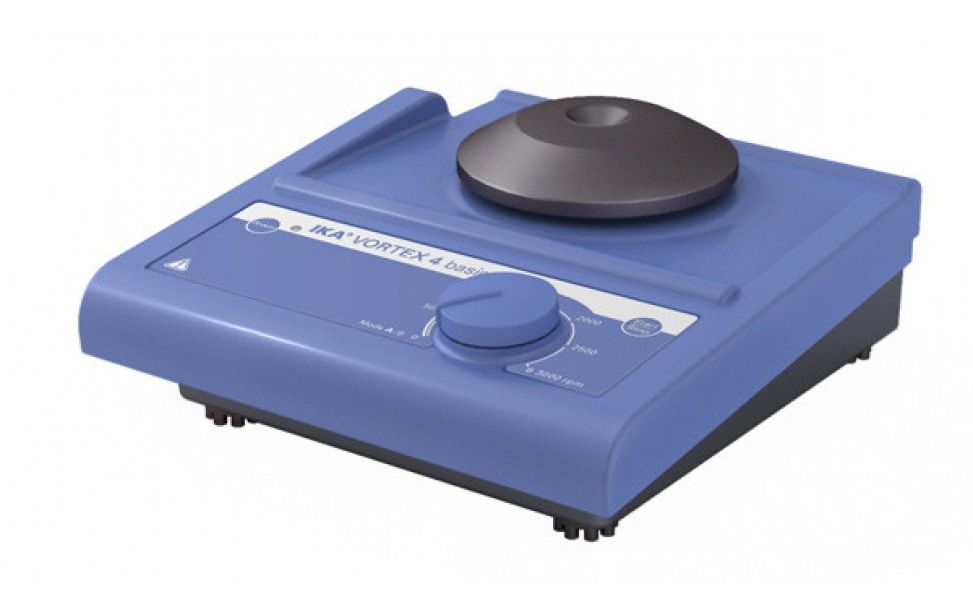

Vortex 4 basic

Vortex Mixer

Compact, universal small shaker suitable for shaking tasks with small vessels and microtiter plates.

- Wide range of attachments

- Attachment detection

- Continuous or touch operation (with standard attachment)

- Two operating modes:

   Mode A (safe mode with attachment detection) the maximum speed of 3,000 rpm is only reached with the standard attachment in touch mode. When using other attachments the speed is limited to 1,300 rpm.
   Mode B (without attachment detection) a speed of 3,000 rpm is possible with all attachments.

- Stable in all speed ranges

- Sturdy zinc die cast casing

Technical data :

- Current consumption : 800mA

- Shaker diameter : 4.5mm

- Motor rating input : 10W

- DC Voltage : 24V=

- Power input : 20W

- Frequency : 50/60Hz

- Permissible ON time : 100%

- Motor rating output : 8W

- Speed max. : 3000rpm

- Width : 176mm

- Depth : 190mm

- Weight : 3kg

- Height : 63mm

- Permissible shaking weight (incl. Attachment) : 0.5kg

- Speed min (adjustable) : 200rpm

- Voltage : 100 - 240V

- Permissible relative humidity : 80%

- Protection class according to DIN EN 60529 : IP 21

- Touch function : yes

- Shaking table lock : no

- Type of movement : orbital

- RS 232 interface : no

- Analog output : no

- Working with microtiter plates : yes

- Number of microtiter plates : 1

- Permissible ambient temperature min. : 5°C

- Permissible ambient temperature max. : 40°C

- Speed min. : 0rpm

- Timer display : scale

- Operating mode : continuous operation

- Speed display : scale

- Timer : no
