Description

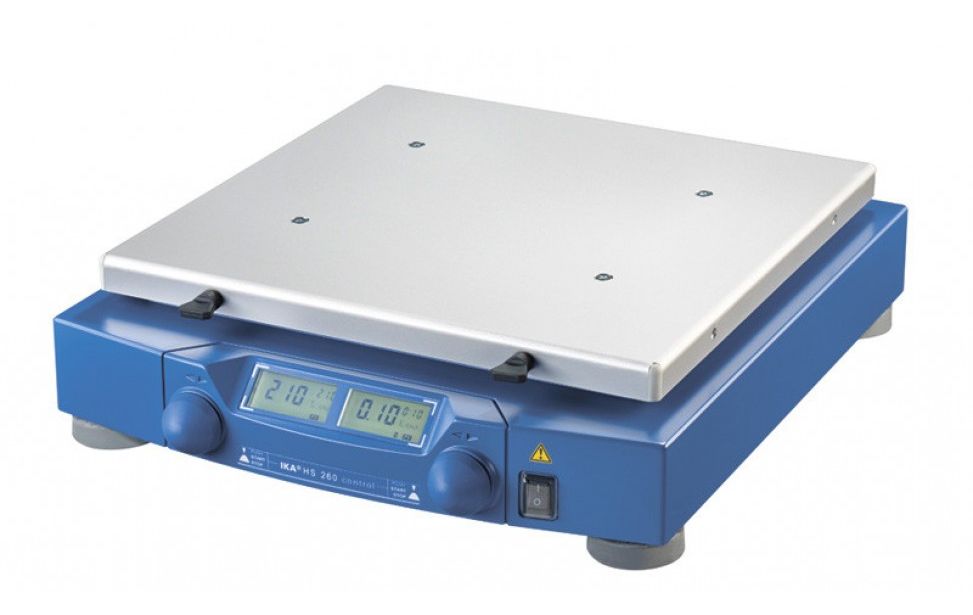

HS 260 control

Shakers

Compact, flat reciprocal shaker with ideal swivel motion, for a maximum shaking weight of 7.5 kg.

- Electronic adjustment of speed and timer

- Digital display makes it possible to read the speed, timer function and operating modes

- Electronic time switching clock: 0 - 9 h 59min or continuous operation (endless)

- With integrated endpoint positioning (for automated robot-controlled sampling)

- All functions can be controlled and documented with labworldsoft® software

- Wide range of attachment combinations makes it possible to use almost all shapes and sizes of vessels

- Attachments are not included, please order separately

Technical data :

- Width : 360mm

- Depth : 420mm

- Permissible shaking weight (incl. Attachment) : 7.5kg

- Power input : 45W

- Weight : 8.8kg

- Permissible ambient temperature max. : 50°C

- Time setting min. : 1min

- Time setting max. : 599min

- Speed min. : 10rpm

- Voltage : 220 - 240/100 - 120V

- Height : 100mm

- Shaker diameter : 20mm

- Speed max. : 300rpm

- Permissible ON time : 100%

- Motor rating output : 10W

- Analog output : yes

- Speed display : LCD

- Protection class according to DIN EN 60529 : IP 21

- Operating mode : timer and continuous operation

- RS 232 interface : yes

- Timer display : LCD

- Shaking table lock : yes

- Frequency : 50/60Hz

- Motor rating input : 45W

- Permissible relative humidity : 80%

- Permissible ambient temperature min. : 5°C

- Type of movement : reciprocating

- Timer : yes
