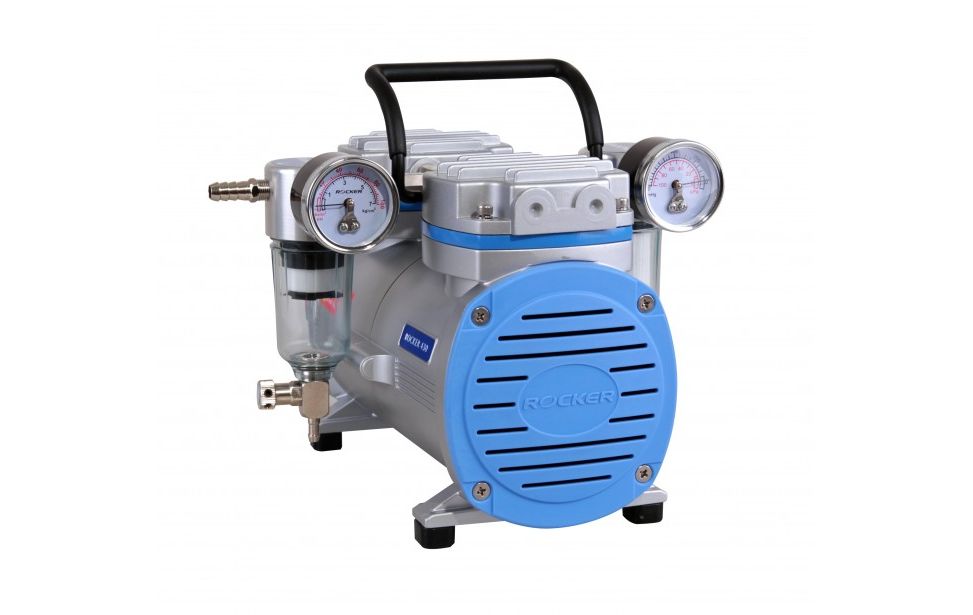

Rocker 430

Vacuum Pump

Feature :

- No air pollution, maintenance free

Rocker series pumps are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.

- Prote™ overflow protection

Rocker 430 pump is equipped with Prote™ overflow protection which can prevent a large amount of liquid from being sucked into the pump.

- Moisture trap with filter cartridge

Rocker 430 pump is equipped with filter cartridge in air inlet and outlet to filter particle and moisture to prolong the life of pump

- Vacuum and pressure regulators

Rocker 430 pump is equipped with vacuum and pressure regulators to adjust vacuum and pressure.

- Thermal protection device

Every motor of Rocker series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.

International safety certification :

- CE certification

- IP 30 protection class

- ROHS certification

Applications :

- Filtration for microbiology test

- Air sampling

- Suspended solid test

- Aeration

- Vacuum filtration

Specification :

• Max. power: 125W

• Max. current: 0.6A

• Max. vacuum: 145 mbar

• Max. pressure: 80 psi

• Max. flow rate: 28 L/min

• Motor rotation speed: 1450 RPM

• Horse power: 1/6 HP

• Noise level: 52 dB

• Hose barb: ID8 (5/16 inch)

• Net weight: 5.5Kg

• Dimension (LxWxH): 24.7 x 23.5 x 20.4 cm

• Vacuum Gauge: Yes

• Vacuum Regulator: Yes

• Overflow protection: Yes

• Thermal protection: Yes

Ordering Information :

167430-22, Rocker 430, Oil Free Vacuum / Pressure Pump, AC220V, 50Hz
