PRODUCT |  GENESYS 40

  •  Product name : GENESYS 40
  •  Category : Spectrophotometer » Thermo Scientific
  •  Catalog : GENESYS_40_support.pdf

Description

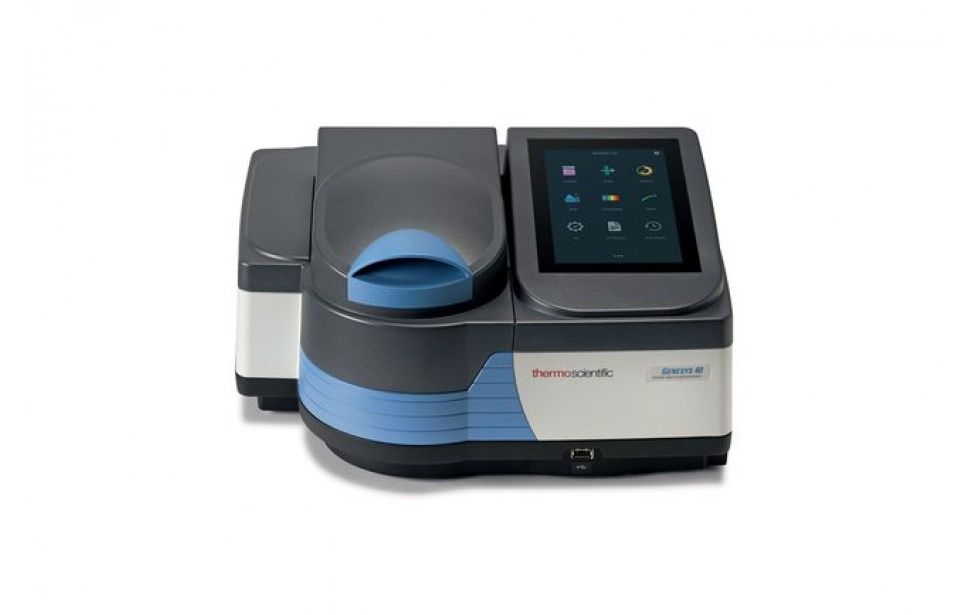

GENESYS 40 Visible Spectrophotometer, Cat. No. 840-297000

The GENESYS 40 Dual Beam Vis Spectrophotometer is a visible spectral region version in this instrumental class. Both feature data resolution from 0.2 nm to 5 nm.



Features:

- 7-inch high-resolution touchscreen user interface

- Local control for speed and reliability

- Networking capable (Wi-Fi ready)

- Large sample compartment with front access



Designed for :

- Chemistry labs

- Routine measurements

- Moderate throughput requirements



Specifications :

Product Size

-

Baseline Flatness

±0.005A

Compartments

Accessible from top, front or side

Able to accommodate cells up to 100mm cells

Available accessory for test tubes up to 25 mm diameter and 150 mm height

Removable, washable sample compartment liner with magnetic placement and hold-down

Connections

Single USB-A supports flash memory devices for method and data storage

Duplex USB-A on side supports connection to a Windows™ computer running optional remote control software, keyboard, mouse

Export data to network or PC via USB, Ethernet, or Wi-Fi

Description

GENESYS 40 Visible Spectrophotometer

Detector Type

Dual Silicon Photodiodes

Dimensions (L x W)

35.5 x 38.5 x 19.5 cm

Display

7-inch color touchscreen, fixed, high definition, 800 × 1280 pixels

Drift

(At 500 nm after 1 hour warmup) <0.0005A/Hr

Electrical Requirements

External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100–240 volts, 50–60 Hz.

Keypad

Touchscreen

Lamp

Tungsten-Halogen (>1000 hours)

Noise

(RMS at 500 nm 60 consecutive measurements)

≤0.00020A at 0A at 260 and 500 nm

≤0.00030A at 1A at 260 and 500 nm

≤0.00040A at 2A at 260 and 500 nm

Optical Design

Dual beam

Photometric Accuracy Instrument

±0.002A at 0.5A
±0.004A at 1.0A
±0.008A at 2.0A

Photometric Display

-3A to +5A

Photometric Range

–3A to +3.5A

Photometric Repeatability

±0.001A at 1A measured at 1.0A at 546 nm

Printer

Snap-on printer available

Resolution

0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm

Spectral Bandwidth

5 nm

Stray Light

<0.05%T at 340 nm and 400 nm

Wavelength Accuracy

±0.5 nm

Wavelength Range

325 nm – 1100 nm

Wavelength Repeatability

< ±0.2 nm

Wavelength Scan Speed

Automatic – up to 1800 nm/min

Weight (Metric)

7.5 kg

Warranty

2 years standard with 1 year extension upon registration of the instrument with Thermo Fisher Scientific within 6 months of purchase
