Description

Furnaces

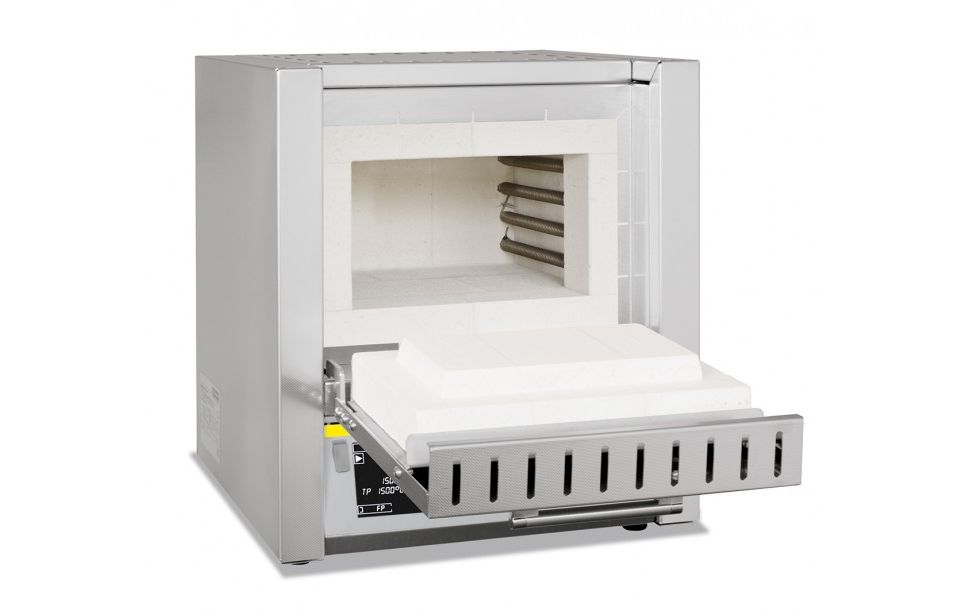

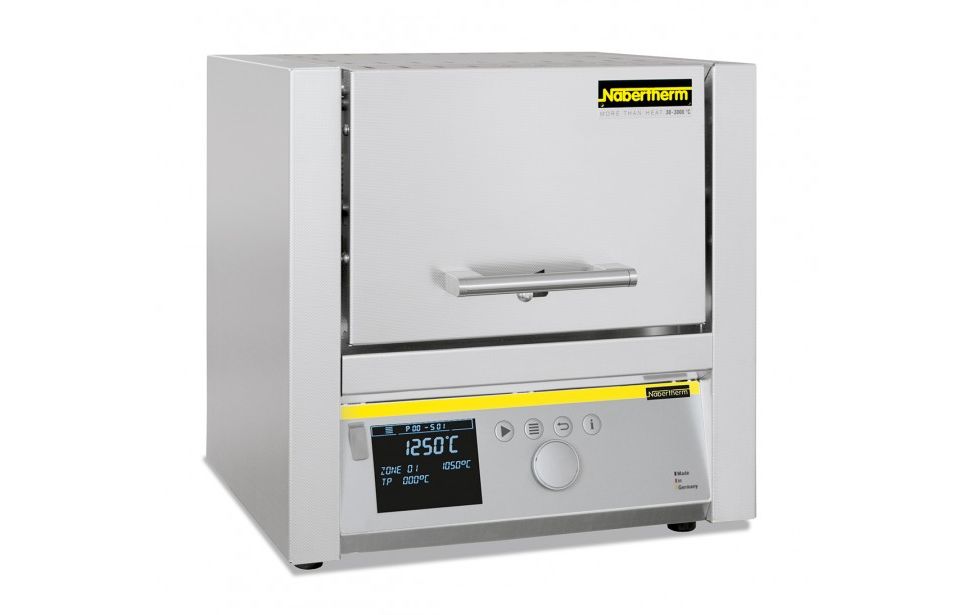

Muffle Furnaces with Brick Insulation and Flap Door or Lift Door



Heating elements on support tubes radiating freely into the furnace chamber provide for particularly short heating times for these muffle furnaces. Thanks to their robust lightweight refractory brick insulation, they can reach a maximum working temperature of 1300 °C. These muffle furnaces thus represent an interesting alternative to the familiar L(T) 3/11 models, when you need particularly short heating times or a higher application temperature.



- Tmax 1300 °C

- Heating from two sides

- Heating elements on support tubes ensure free heat radiation and a long service life

- Multi-layer insulation with robust lightweight refractory bricks in the furnace chamber

- Housing made of sheets of textured stainless steel

- Dual shell housing for low external temperatures and stability

- Optional flap door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator

- Adjustable air inlet in the furnace door

- Exhaust air outlet in rear wall of furnace

- Solid state relays provide for low-noise operation

- Defined application within the constraints of the operating instructions

- NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive



Additional equipment :

- Chimney, chimney with fan or catalytic converter

- Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load

- Protective gas connection to purge with non-flammable protective or reaction gases

- Manual or automatic gas supply system

- Process control and documentation via VCD software package for monitoring, documentation and control



Model

Tmax

Inner dimensions in mm

Volume

Outer dimensions in mm

Connected

Electrical

Weight

Minutes



°C

w

d

h

in l

W

D

H

load kW

connection*

in kg

to Tmax2

L, LT 5/13

1300

200

170

130

5

490

450

580+3201

2.4

1-phase

42

45

L, LT 9/13

1300

230

240

170

9

530

525

630+3501

3.0

1-phase

60

50

L, LT 15/13

1300

260

340

170

15

530

625

630+3501

3.5

1-phase

70

60

1Including opened lift door (LT models) *Please see page 60 for more information about supply voltage
2If connected at 230 V 1/N/PE rsp. 400 V 3/N/PE
