Description

Furnaces

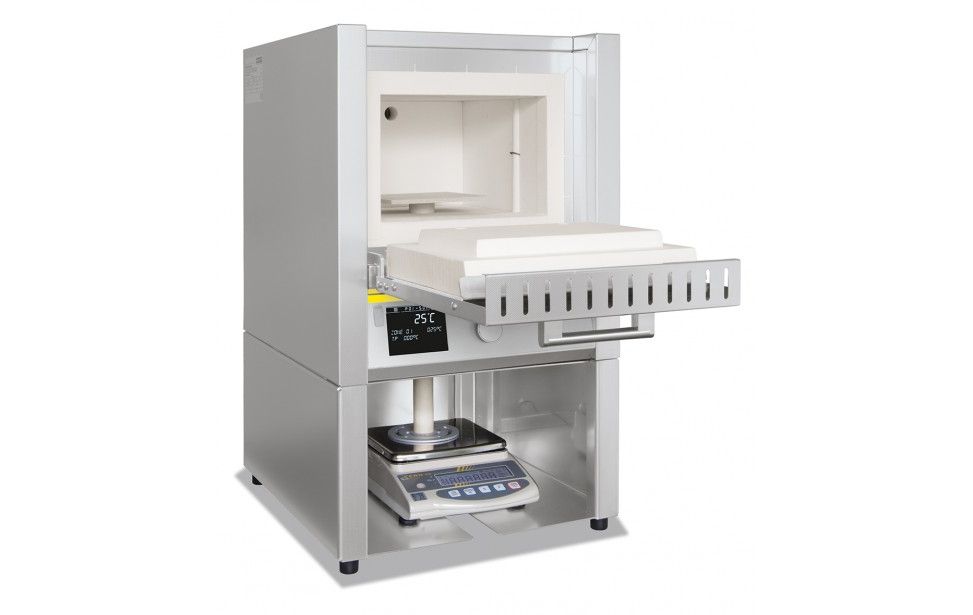

Weighing Furnace incl. Scale and Software for Determination of Combustion Loss



This weighing furnace with integrated precision scale and software, was designed especially for combustion loss determination in the laboratory. The determination of combustion loss is necessary, for instance, when analyzing sludges and household garbage, and is also used in a variety of technical processes for the evaluation of results. The difference between the initial total mass and the combustion residue is the combustion loss. During the process, the software included records both the temperature and the weight loss.



- Tmax 1100 °C or 1200 °C

- Heating from two sides

- Ceramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replace

- Insulation made of non-classified fiber material

- Housing made of sheets of textured stainless steel

- Optional flap door (L) which can be used as work platform or lift door (LT) with hot surface facing away from the operator

- Adjustable working air inlet in the door

- Exhaust air outlet in rear wall of furnace

- Solid state relays provide for low noise operation

- Delivery includes base, ceramic plunger with base plate in the furnace lining, precision scale and software package

- 4 scales available for different maximum weights and scaling ranges

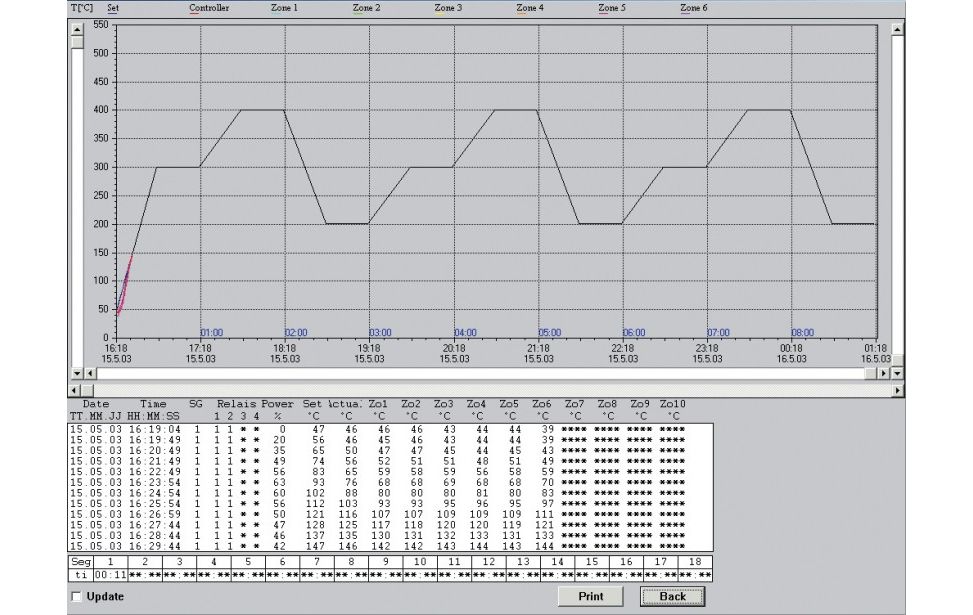

- Process control and documentation for temperature and combustion loss via VCD software package for monitoring, documentation and control

- Defined application within the constraints of the operating instructions



Additional equipment :

- Chimney, chimney with fan or catalytic converter

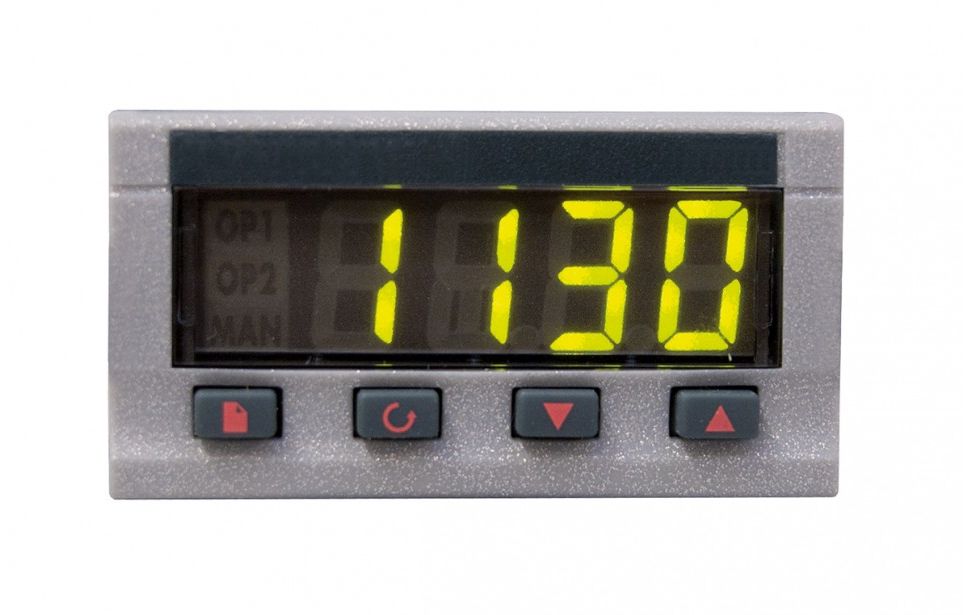

- Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load



Model

Tmax

Inner dimensions in mm

Volume

Outer dimensions in mm

Connected

Electrical

Weight

Minutes

flap door

°C

w

d

h

in l

W

D

H

load kW

connection*

in kg

to Tmax2

L 9/11/SW

1100

230

240

170

9

415

455

740

3.0

1-phase

50

75

L 9/12/SW

1200

230

240

170

9

415

455

740

3.0

1-phase

50

90

Model

Tmax

Inner dimensions in mm

Volume

Outer dimensions in mm

Connected

Electrical

Weight

Minutes

Lift door

°C

w

d

h

in l

W

D

H1

load kW

connection*

in kg

to Tmax2

LT 9/11/SW

1100

230

240

170

9

415

455

740+240

3.0

1-phase

50

75

LT 9/12/SW

1200

230

240

170

9

415

455

740+240

3.0

1-phase

50

90

1Including opened lift door *Please see page 60 for more information about supply voltage
2If connected at 230 V 1/N/PE rsp. 400 V 3/N/PE

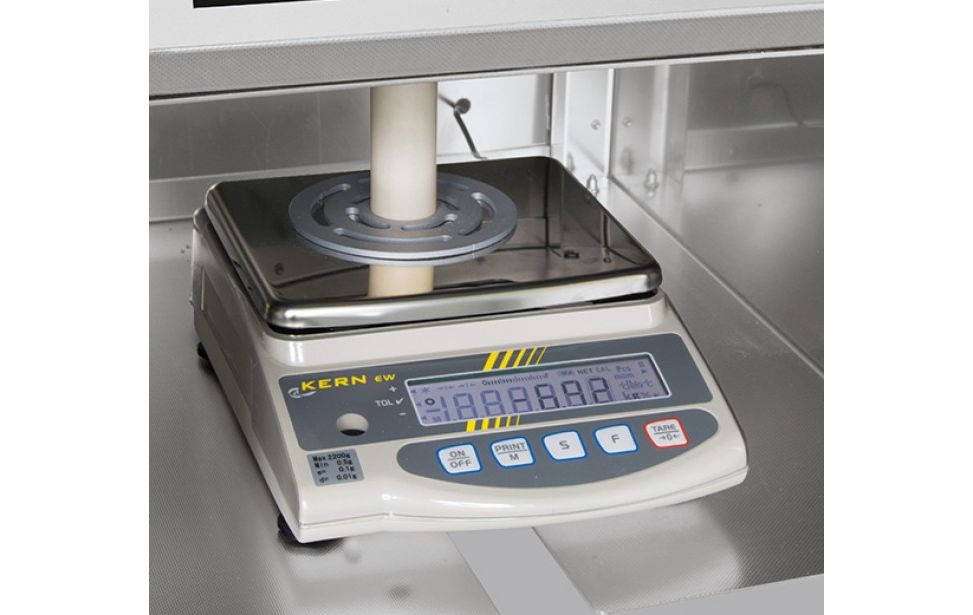

Scale

Readability

Weight range

Weight of plunger

Calibration value

Minimum load

type

in g

in g

in g

in g

in g

EW-2200

0.01

2200 incl. plunger

850

0.1

0.5

EW-4200

0.01

4200 incl. plunger

850

0.1

0.5

EW-6200

0.01

6200 incl. plunger

850

-

1.0

EW-12000

0.10

12000 incl. plunger

850

1.0

5.0
