PRODUCT |  MACRO IRHD System

  •  Product name : MACRO IRHD System
  •  Category : Hardness Test » Hildebrand
  •  Catalog : MACRO_IRHD_System_support.pdf

Description

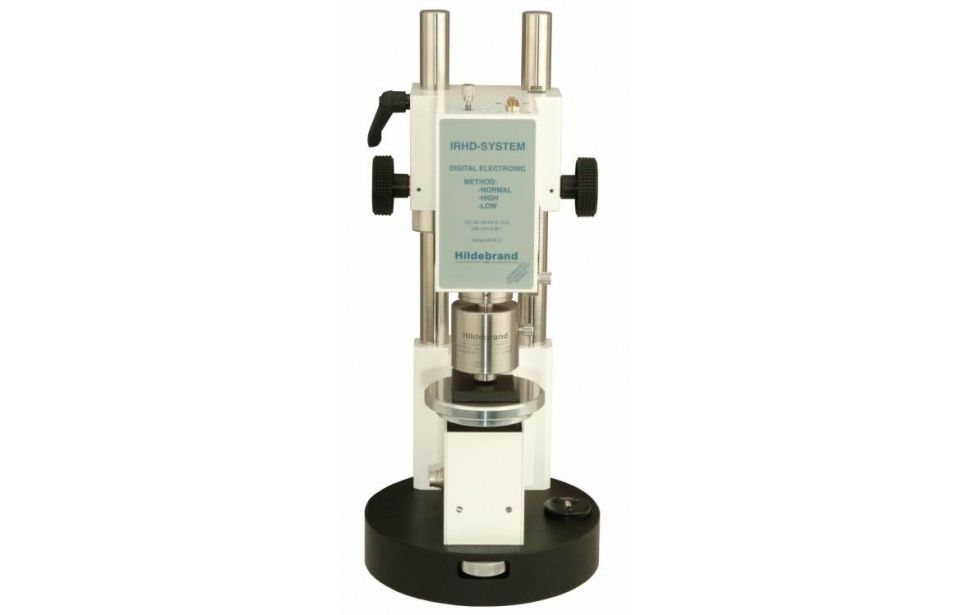

MACRO IRHD System

Hardness test



Durometer Hardness System provides hardness readings on elastomers and plastics with a specimen thicker than 6 mm according to IRHD and Durometer hardness. It complies to international standards DIN ISO 48, ISO 48, ASTM D 1415 and DIN 53505.



Available inserts for IRHD :

- Ball 2,5 mm (IRHD N)

- Ball 5,0 mm (IRHD L)

- Ball 1,0 mm (IRHD H)

- Insert Durometer A



You can fit the inserts without tools into the measuring head. An electronic identification of each insert is housed in the measuring head. The corresponding software for each insert is set up automatically. You cannot mix up the inserts. Therefore this system eliminates operator errors. The patented IRHD N, H, L / Durometer Hardness System is working fully automatically with a PC and the Hildebrand Software.



The Software controls the operation of the system. It is working under MS-Windows and offers unique features. Hardness value, graph, statistics, test report are only a few features of this software. An ASCII-output file is provided. The modular construction makes it possible to change the measuring head. An additional measuring head "MICRO IRHD" is available.



Features :

- Dimensions IRHD unit : Ø 200 mm x 470 mm

- Controller : 290 mm x 260 mm x 75mm

- Net weight : 17,5 kg

- Resolution: 0,1 IRHD

- Standards : DIN ISO 48, ISO 48, ASTM D 1415



Delivery contents :

- Dust cover

- Calibration certificate issued by Hildebrand
