PRODUCT |  Freeze Dryer

  •  Product name : Freeze Dryer
  •  Category : Freeze Dryers » Innotech
  •  Catalog : Freeze_Dryer_support.pdf

Description

Freeze Dryer

Table Top Type



The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.

Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.



Features :

1. LCD touch screen.

2. With historical data inquiry function.

3. With USB interface to export the data.

4. Large capacity ice condenser trap and without coil inside.

5. With cascade refrigeration technology.

6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.

7. Ice condenser trap and operation panel are made by stainless steel.

8. Drying chamber is transparent which is visual and safe.

9. Shelves are stainless steel, which can be adjustable per the requirements



With a view models as follows :

Model

BK-FD10S

BK-FD10P

BK-FD10T

BK-FD10PT

Type

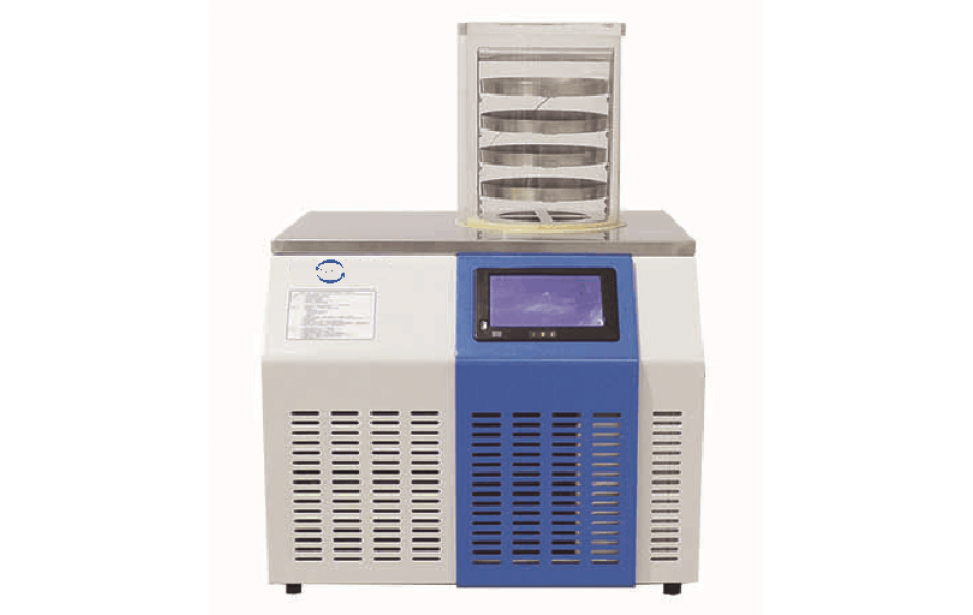

Standard chamber

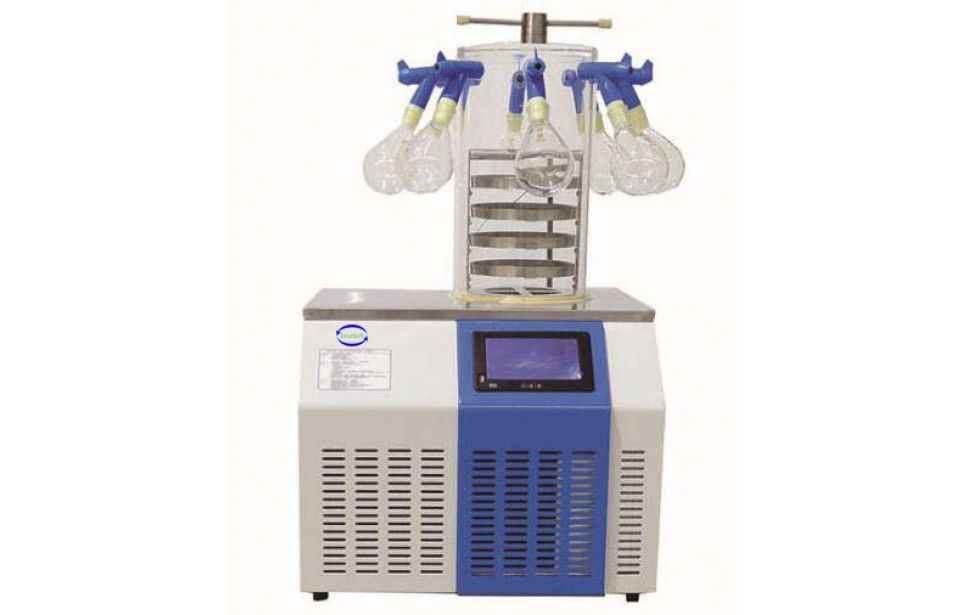

Standard chamber

with 8 port manifold

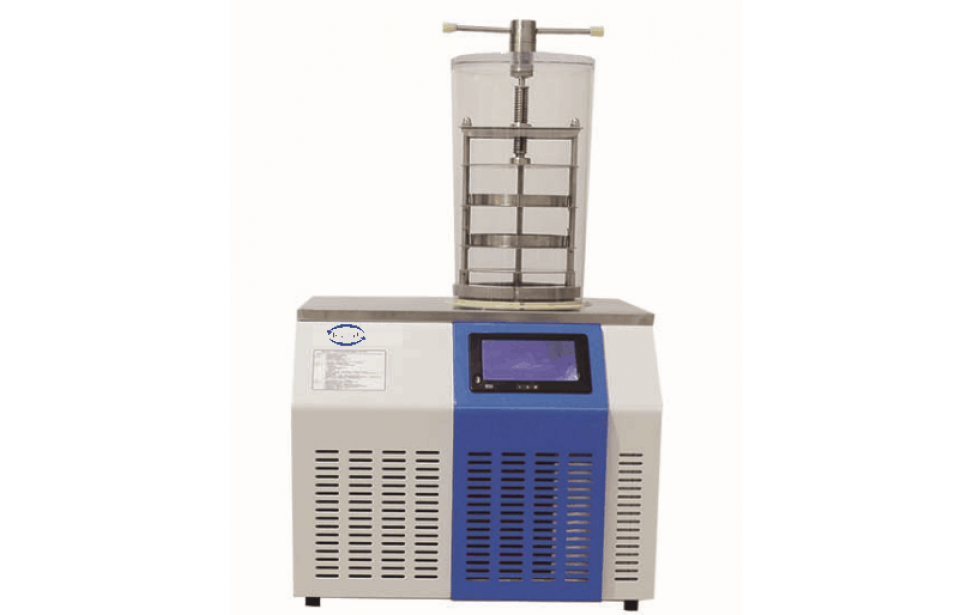

Stoppering

chamber

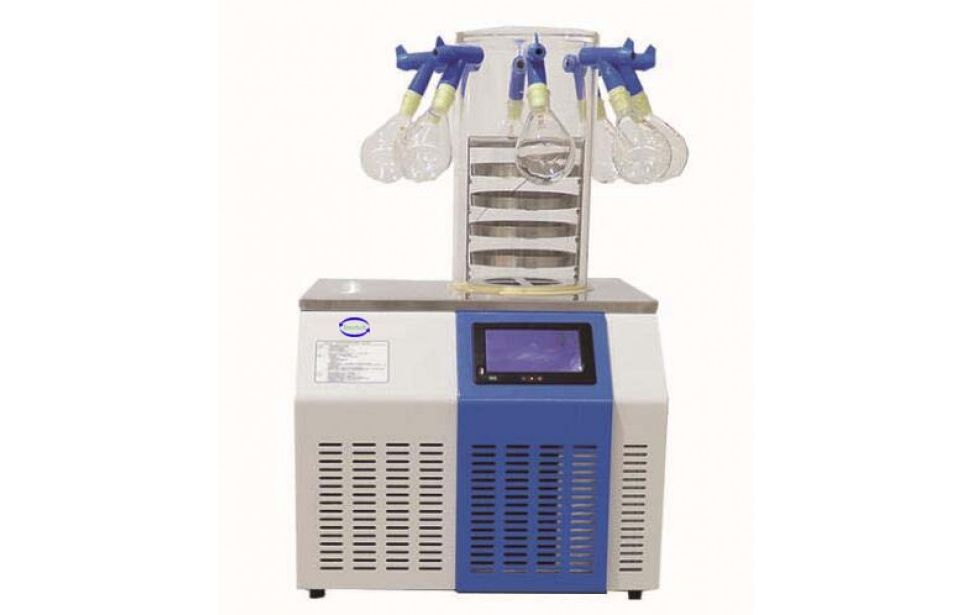

Stoppering
chamber with 8 port manifold

Freeze Drying Area

0.12 m2

0.09 m2

Tray

4 pcs

3 pcs

Height Between Trays

50mm

68mm

Cold Trap Temperature

≤-56?

Cold Trap Capacity

9.5L

Cold Trap Size (Diameter*H)

Φ215*260mm

Vacuum Degree

<10 Pa

Water Capture Capacity

3 Kg/24h

Tray Size (D*H)

Φ200*20mm

Φ180*20mm

Freeze Drying Time

24h

Loading Capacity/Shelf (Liquid)

0.3L

Total Loading Capacity (Liquid)

1.2L

0.9L

Drying Chamber Size (Diameter*H)

Φ260*310mm

Φ260*450mm

Total Qty. Of Vial Φ22

260

195

Total Qty. Of Vial Φ16

480

360

Total Qty. Of Vial Φ12

920

690

Refrigerant

R600a+R290+R23

Cooling System

Air cooling

Power Supply

220V/50Hz,60Hz (single phase)

110V/60Hz (single phase)

Power Consumption

1.3KW

Standard Accessory

Vacuum pump 2L/S, 8m3/h (for all models)

Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT)

Optional Function & Accessory

Conical-mouth flask and wide-mouth flask(for BK-FD10P/PT)

Import vacuum pump

External Size (W*D*H), mm

640*610*550/810

640*610*550/950

640*610*550/990

Package Size(W*D*H),

mm/Gross Weight

Main Body

720*705*730?83kg?

Drying Chamber

/Vacuum Pump

590*705*530 (40kg)

590*705*530

(44kg)

590*705*530

(50kg)

590*705*530

(53kg)
