PRODUCT |  UV Air Sterilizer

  •  Product name : UV Air Sterilizer
  •  Category : Sterilizer » Innotech
  •  Catalog : UV_Air_Sterilizer__support.pdf

Description

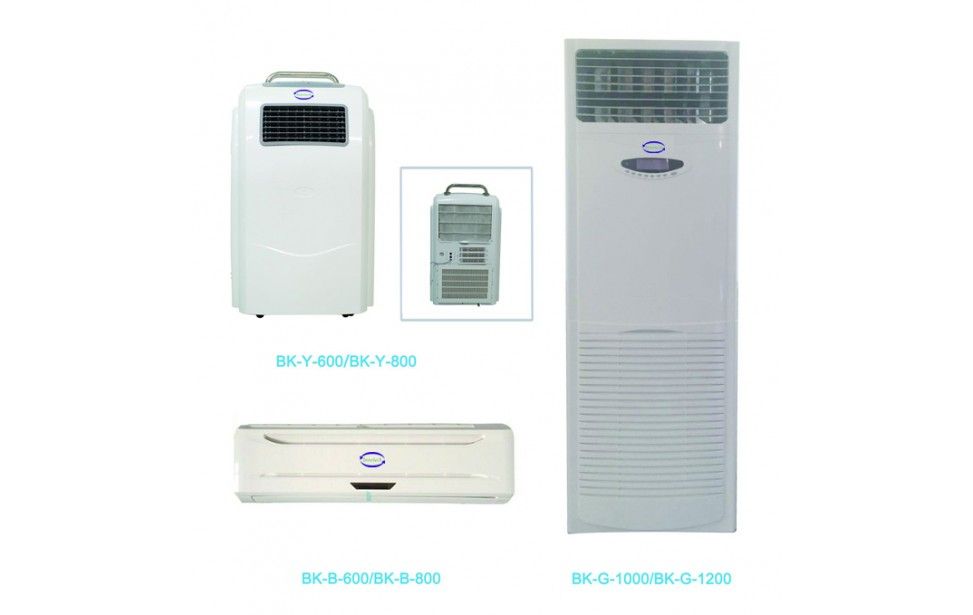

UV Air Sterilizer



Application:

It can be used in Class II, Class III, Class IV hospital room, blood station, food and beverage factory, pharmaceutical factory, school, catering and other public places.



Feature:

- Air purification composite filter which has primary filter, activated carbon filter, photocatalyst filter.

- Long service life, easy maintenance, convenient installation. Service life of UV lamp ≥ 8000h.

- Fast and effective sterilization of various bacteria and virus.

- Air dynamic disinfection, allow existence of people when working.

- Power-off memory function.

- Two working modes: sterilization & negative ion air supply. Optional working modes: ozone air supply (BK-Y-600 & BK-Y-800 mobile air sterilizer).

- Adjustable high/medium/low air volume, adjustable wind direction.


Specifications :

Model

BK-Y-600

BK-Y-800

BK-B-600

BK-B-800

BK-G-1000

BK-G-1200

Sterilization Space

≤100m3

≤128m3

≤138m3

Air Circulation

≥600m3/h

≥800m3/h

≥600m3/h

≥800m3/h

≥1000m3/h

≥1200m3/h

Ultraviolet Leakage of Machine

≤5μw/cm2(30cm distance with machine)

Ozone Concentration

≤7.4X10-3mg/m3 (20cm distance with machine)

Display

LCD display

LED display

LCD display

Temperature Range

0~39? ( Screen displays10~35°C temperature range?

Temperature Accuracy

±1°C

Timing Function

24 hours

8 hours

Noise

≤55dB

Power Supply

AC220V, 50/60Hz?AC110V, 50/60Hz.

Consumption

≤350W

≤400W

External Size (mm)

900x540x420

885x280x200

1000x330x220

600x330x1895

Package Size (mm)

577x487x960

940x340x250

1050x400x300

650x400x1950

Net Weight (kg)

20

10

12

43

Gross Weight (Kg?

25

16

17

50
