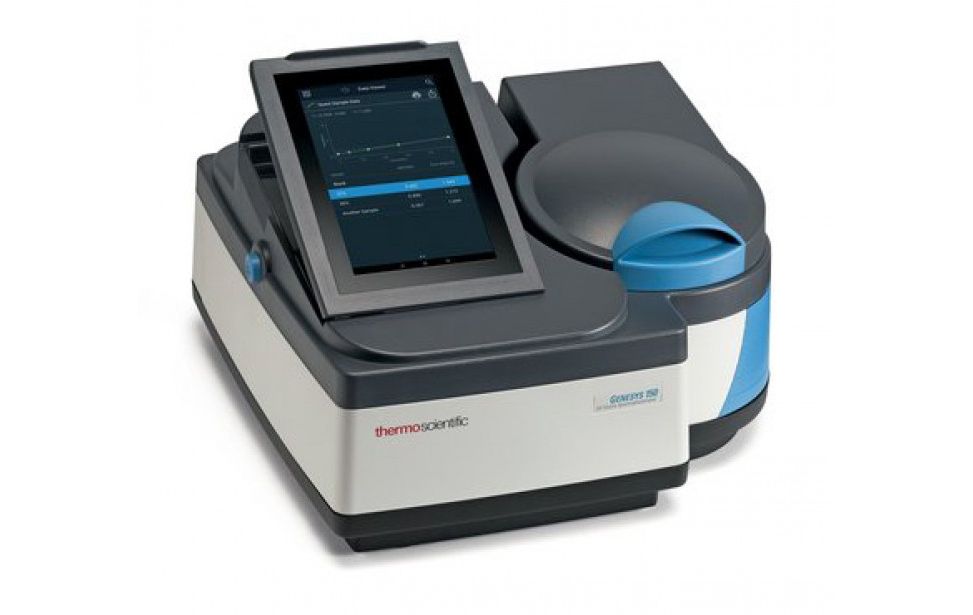

PRODUCT |  GENESYS™ 140/150

  •  Product name : GENESYS™ 140/150
  •  Category : Spectrophotometer » Thermo Scientific
  •  Catalog : GENESYS™_140150_support.pdf

Description

GENESYS™ 140/150 Vis/UV-Vis Spectrophotometers

Perform quantitative measurements in routine industrial QA/QC or university chemistry labs with the automated and network-ready Thermo Scientific™ GENESYS™ 150 UV-Visible and GENESYS 140 Vis Spectrophotometers. Optimized for usability and performance, this platform features a high-resolution color touchscreen, Wi-Fi networking, and a rugged design built for repetitive, heavy use environments. Regarded worldwide for reliability, accuracy and reproducibility, GENESYS spectrophotometers meet today’s expectations for advanced technology in a compact, robust package.



Description :

The GENESYS 150 UV-Vis Spectrophotometer provides automation for high-throughput options and room-light resistance, allowing lid-open operation for improved speed and convenience. A full line of accessories, including automated cell changers and cell holders, sipper, and fiber optic probes are designed to simplify sampling and accommodate high throughput measurements and temperature control.

The GENESYS 140 Vis Spectrophotometer is a visible spectral region version in the instrumental class. Both instruments feature data resolution from 0.2 nm to 5 nm.



Features :

- 7-inch high-resolution touchscreen user interface

- Onboard methods, reporting and data export

- Networking capable (Wi-Fi ready)

- Room light resistance for "open-lid" operation

- Sipper accessory

- Removable, washable sample compartment liner with magnetic placement and hold-down

- Accommodates cells up to 100 mm pathlength

- (Optional) 8-position cell changer with switchable turret

- (Optional) 4-position cell changer (long path cells)

- (Optional) Peltier-thermostatted single cell holder (20 °C - 60 °C)

- (Optional) Accessory for test-tubes up to 25 mm diameter and 150 mm height



Designed for :

- Advanced teaching labs

- R&D departments

- Applications requiring high throughput or temperature control



WITH A VIEW MODELS AS FOLLOWS :



GENESYS 140 Visible Spectrophotometer, Cat. No. 840-308000

Product Size

-

Baseline Flatness

±0.005A

Compartments

8-position cell changer (standard):
Also accommodates (optional):
4-position cell changer (long path cells)

Peltier thermostatted cell holder (20-60 °C)

Sipper accessory

Connections

Single USB-A supports flash memory devices for method and data storage

Duplex USB-A on side supports connection to a Windows™ computer running optional remote control software, keyboard, mouse

Export data to network or PC via USB, Ethernet, or Wi-Fi
Print via USB, Ethernet or Wi-Fi

Description

GENESYS 140 Visible Spectrophotometer

Detector Type

Dual Silicon Photodiodes

Dimensions (L x W x H)

35.5 x 38.5 x 19.5 cm

Display

7-inch color touchscreen, tiltable, high definition, 800 × 1280 pixels

Drift

(At 500 nm after 1 hour warmup) <0.0010A/Hr

Electrical Requirements

External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100–240 volts, 50–60 Hz.

Keypad

Touchscreen

Lamp

Tungsten-Halogen (>1000 hours)

Noise

(RMS at 500 nm 60 consecutive measurements)

≤0.00020A at 0A at 260 and 500 nm

≤0.00030A at 1A at 260 and 500 nm

≤0.00040A at 2A at 260 and 500 nm

Optical Design

Dual beam

Photometric Accuracy Instrument

±0.002A at 0.5A

±0.004A at 1.0A

±0.008A at 2.0A

Photometric Display

-3A to +5A

Photometric Range

–3A to +3.5A

Photometric Repeatability

±0.001A at 1A measured at 1.0A at 546 nm

Printer

Snap-on printer available

Spectral Bandwidth

5 nm

Stray Light

<0.05%T at 340 nm and 400 nm

Wavelength Accuracy

±0.5 nm

Wavelength Data Interval

0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm

Wavelength Range

325 nm – 1100 nm

Wavelength Repeatability

< ±0.2 nm

Wavelength Scan Speed

Automatic – up to 1800 nm/min

Weight (Metric)

7.5 kg



GENESYS 150 Visible Spectrophotometer, Cat. No. 840-300000

Product Size

-

Baseline Flatness

±0.002A

Compartments

8-position cell changer (standard)

Also accommodates (optional):
4-position cell changer (long path cells)

Peltier thermostatted cell holder (20-60 °C)

Sipper accessory

Fiber optic probe coupler

Connections

Single USB-A supports flash memory devices for method and data storage

Duplex USB-A on side supports connection to a Windows™ computer running optional remote control software, keyboard, mouse

Export data to network or PC via USB, Ethernet, or Wi-Fi
Print via USB, Ethernet or WI-Fi

Description

GENESYS 150 Visible Spectrophotometer

Detector Type

Dual Silicon Photodiodes

Dimensions (L x W x H)

35.5 x 38.5 x 19.5 cm

Display

7-inch color touchscreen, tiltable, high definition, 800 × 1280 pixels

Drift

(At 500 nm after 1 hour warmup) <0.0005A/Hr

Electrical Requirements

External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100–240 volts, 50–60 Hz.

Keypad

Touchscreen

Lamp

Xenon Flash Lamp (>5 years typical, 3 years guaranteed)

Noise

(RMS at 500 nm 60 consecutive measurements)

≤0.00020A at 0A at 260 and 500 nm

≤0.00030A at 1A at 260 and 500 nm

≤0.00040A at 2A at 260 and 500 nm

Optical Design

Dual beam

Photometric Accuracy Instrument

±0.002A at 0.5A

±0.004A at 1.0A

±0.008A at 2.0A

Photometric Display

-3A to +5A

Photometric Range

–2A to +3.5A

Photometric Repeatability

±0.001A at 1A measured at 1.0A at 546 nm

Printer

Snap-on printer available

Spectral Bandwidth

2 nm

Stray Light

< 1.0%T 198 nm (KCl) , <0.05%T at 220 nm (NaI), <0.03%T at 340 nm (NaNO2)

Wavelength Accuracy

±0.5 nm

Wavelength Data Interval

0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm

Wavelength Range

190 nm – 1100 nm

Wavelength Repeatability

< ±0.2 nm

Wavelength Scan Speed

Slow, medium and fast - up to 1600 nm/min

Weight (Metric)

7.5 kg
