PRODUCT |  BioMate™ 160

  •  Product name : BioMate™ 160
  •  Category : Spectrophotometer » Thermo Scientific
  •  Catalog : BioMate™_160_support.pdf

Description

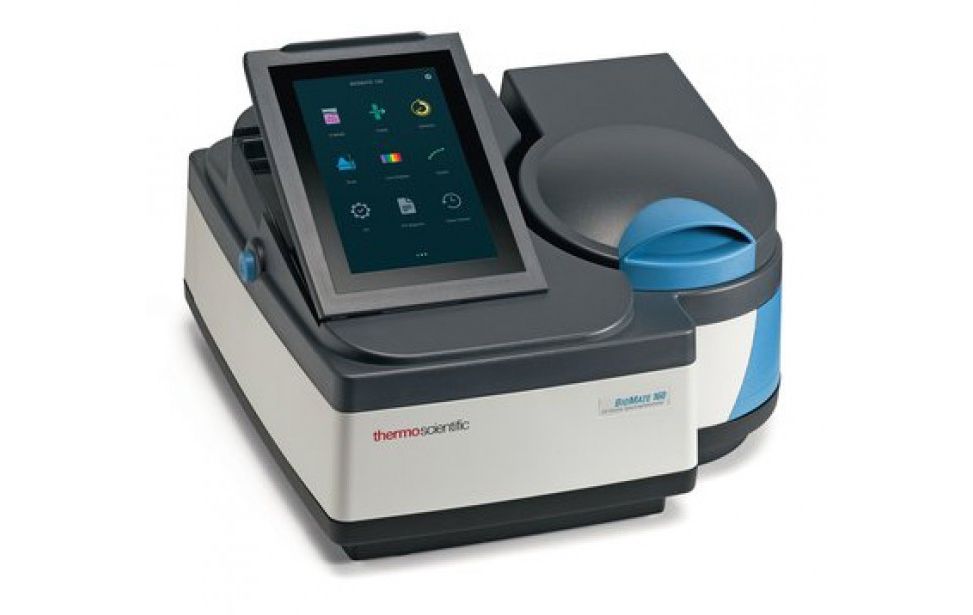

BioMate™ 160 UV-Vis Spectrophotometer

Perform quantitative measurements in life science laboratories with the automated and network-ready Thermo Scientific™ BioMate™ 160 UV-Visible Spectrophotometer. The BioMate 160 Spectrophotometer offers pre-programmed assay methods for nucleic acid and protein concentration as well as cell culture measurements. Optimized for usability and performance, this platform features a high-resolution color touchscreen, Wi-Fi networking, and a rugged design



The BioMate UV-Vis Spectrophotometer provides automation for high-throughput options and room-light resistance, allowing lid-open operation for improved speed and convenience. Software includes pre-programmed life science methods such as Nucleic Acid A260; Protein A280 and A205; Protein Colorimetric assays and OD600.



A full line of accessories, including automated cell changers and cell holders, sipper, and fiber optic probes are designed to simplify sampling and accommodate high throughput measurements and temperature control.



Features:

- 7-inch high-resolution touchscreen user interface

- Pre-programmed life science methods

- Networking capable (WiFi ready)

- Room light resistance for "open-lid" operation

- Sipper accessory

- Removable, washable sample compartment liner with magnetic placement and hold-down

- Accommodates cells up to 100 mm pathlength

- (Optional) 8-position cell changer with switchable turret

- (Optional) 4-position cell changer (long path cells)

- (Optional) Peltier-thermostatted single cell holder (20 °C - 60 °C)

- (Optional) Accessory for test-tubes up to 25 mm diameter and 150 mm height



Designed for:

- Advanced teaching labs

- R&D departments

- Applications requiring high throughput or temperature control



Specification :

Product Size

-

Baseline Flatness

±0.002A

Compartments

Accommodates (optional):

8-position cell changer

4-position cell changer (long path cells)

Peltier thermostatted cell holder (20-60 °C)

Sipper accessory

Fiber optic probe coupler

Connections

Single USB-A supports flash memory devices for method and data storage
Duplex USB-A on side supports connection to a Windows™ computer running optional remote control software, keyboard, mouse
Export data to network or PC via USB, Ethernet, or Wi-Fi
Print via USB, Ethernet or Wi-Fi

Description

BioMate 160 UV-Visible Spectrophotometer

Detector Type

Dual Silicon Photodiodes

Dimensions (L x W x H)

35.5 x 38.5 x 19.5 cm

Display

7-inch color touchscreen, tiltable, high definition, 800 × 1280 pixels

Drift

(At 500 nm after 1 hour warmup) <0.0005A/Hr

Electrical Requirements

External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100–240 volts, 50–60 Hz.

Keypad

Touchscreen

Lamp

Xenon Flash Lamp (>5 years typical, 3 years guaranteed)

Noise

(RMS at 500 nm 60 consecutive measurements)

≤0.00020A at 0A at 260 and 500 nm

≤0.00030A at 1A at 260 and 500 nm

≤0.00040A at 2A at 260 and 500 nm

Optical Design

Dual beam

Photometric Accuracy Instrument

±0.002A at 0.5A

±0.004A at 1.0A

±0.008A at 2.0A

Photometric Display

-3A to +5A

Photometric Range

–2A to +3.5A

Photometric Repeatability

±0.001A at 1A measured at 1.0A at 546 nm

Printer

Snap-on printer available

Spectral Bandwidth

2 nm

Stray Light

<1.0%T 198 nm (KCl)
<0.05%T at 220 nm (NaI)
<0.03%T at 340 nm (NaNO2)

Wavelength Accuracy

±0.5 nm

Wavelength Data Interval

0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm

Wavelength Range

190 nm – 1100 nm

Wavelength Repeatability

< ±0.2 nm

Wavelength Scan Speed

Slow, medium and fast - up to 1600 nm/min

Weight (Metric)

7.5 kg
