PRODUCT |  GENESYS™ 180

  •  Product name : GENESYS™ 180
  •  Category : Spectrophotometer » Thermo Scientific
  •  Catalog : GENESYS™_180_support.pdf

Description

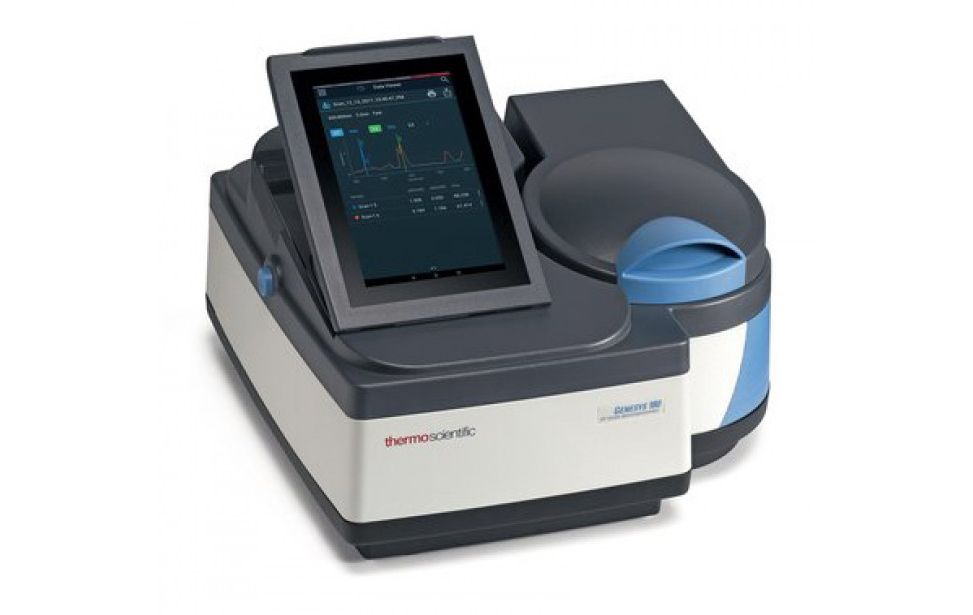

GENESYS™ 180 UV-Vis Spectrophotometer

Perform high throughput quantitative UV-Vis measurements where a double beam is required as a reference cell position with the  Thermo Scientific™ GENESYS™ 180 UV-Visible Spectrophotometer. Optimized for usability and performance, this platform features a high-resolution color touchscreen, Wi-Fi networking, and a rugged design built for repetitive, heavy use environments. Regarded worldwide for reliability, accuracy and reproducibility, GENESYS spectrophotometers meet today’s expectations for advanced technology in a compact, robust package.



The GENESYS 180 UV-Vis Spectrophotometer provides double beam operation for laboratories requiring a reference cell position for applications such as kinetics. An 8-cell carousel comes standard for high-throughput applications. The spectrophotometer includes room-light resistance, allowing lid-open operation for improved speed and convenience. A full line of accessories, including automated cell changers and cell holders, sipper, and fiber optic probes for measurments outside of the sample compartment are designed to simplify sampling and accommodate high throughput measurements and temperature control.



Features:

- Double Beam/Reference Cell

- 7-inch high-resolution touchscreen user interface

- Standard 8-position cell changer with switchable turret

- Onboard methods, reporting and data export

- Networking capable (Wi-Fi ready)

- Room light resistance for "open-lid" operation

- Sipper accessory

- Accommodates cells up to 100 mm pathlength

- 8-position cell changer with switchable turret

- (Optional) 4-position cell changer (long path cells)

- (Optional) Peltier-thermostatted single cell holder (20 °C - 60 °C)

- (Optional) Accessory for test-tubes up to 25 mm diameter and 150 mm height



Designed for laboratories requiring double beam operation with a reference cell position



Specification :

Product Size

-

Baseline Flatness

±0.002A

Compartments

8-position cell changer (standard)
Also accommodates (optional):

4-position cell changer (long path cells)

Peltier thermostatted cell holder (20-60 °C)

Sipper accessory

Fiber optic probe coupler

Connections

Single USB-A supports flash memory devices for method and data storage

Duplex USB-A on side supports connection to a Windows™ computer running optional remote control software, keyboard, mouse

Export data to network or PC via USB, Ethernet, or Wi-Fi
Print via USB, Ethernet or Wi-FI

Description

GENESYS 180 UV-Vis Spectrophotometer

Detector Type

Dual Silicon Photodiodes

Dimensions (L x W x H)

35.5 x 38.5 x 19.5 cm

Display

7-inch color touchscreen, tiltable, high definition, 800 × 1280 pixels

Drift

(At 500 nm after 1 hour warmup) <0.0005A/Hr

Electrical Requirements

External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100–240 volts, 50–60 Hz.

Keypad

Touchscreen

Lamp

Xenon Flash Lamp (>5 years typical, 3 years guaranteed)

Noise

(RMS at 500 nm 60 consecutive measurements)

≤0.00020A at 0A at 260 and 500 nm

≤0.00030A at 1A at 260 and 500 nm

≤0.00040A at 2A at 260 and 500 nm

Optical Design

Double Beam

Photometric Accuracy Instrument

±0.002A at 0.5A

±0.004A at 1.0A

±0.008A at 2.0A

Photometric Display

-3A to +5A

Photometric Range

–2A to +3.5A

Photometric Repeatability

±0.001A at 1A measured at 1.0A at 546 nm

Printer

Snap-on printer available

Spectral Bandwidth

2 nm

Stray Light

< 1.0%T 198 nm (KCl) , <0.05%T at 220 nm (NaI), <0.03%T at 340 nm (NaNO2)

Wavelength Accuracy

±0.5 nm

Wavelength Data Interval

0.1 nm, 0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm

Wavelength Range

190 nm – 1100 nm

Wavelength Repeatability

< ±0.2 nm

Wavelength Scan Speed

Slow, medium and fast - up to 1600 nm/min

Weight (Metric)

7.5 kg
