PRODUCT | RESPIROMETRIC Sensor System 6
- Product name : RESPIROMETRIC Sensor System 6
- Category : BOD » Velp
- Catalog : RESPIROMETRIC_Sensor_System_6__support.pdf
Description

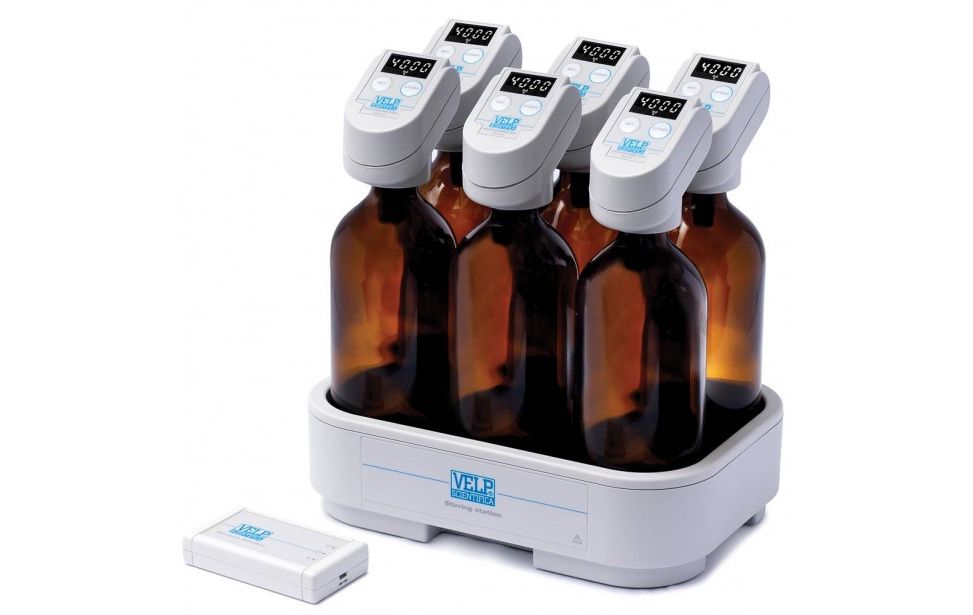

RESPIROMETRIC Sensor System 6 with RESPIROSoft and Wireless DataBox
Cat. No. : SA10200146
The compact, reliable, cloud-enabled solution for BOD determination and aerobic respirometric tests.
The VELP RESPIROMETRIC Sensor BOD is designed to provide a smart and cloud-enabled solution to laboratories of water and wastewater quality control.
BOD (Biochemical Oxygen Demand) Determination is a simple and easy way for monitoring the microorganisms’ activity in water samples with extremely reliable results.
In particular, microorganisms present or inoculated in a water sample containing biodegradable organic substance, consume oxygen for their metabolic activity and produce a corresponding volume of carbon dioxide.
The carbon dioxide gets absorbed by a strong alkali positioned in the neck of the bottle. The result of this process is a decrease in gas pressure. The BOD measures this change in gas pressure between the beginning to the end of the analysis and gives a result expressed in mg/l .
TECHNICAL DATA :
|
NUMBER OF SENSORS PER SYSTEM: |
6 |
|
SENSOR DISPLAY: |
4 LED digits |
|
MEASUREMENT: |
Electronic pressure sensor |
|
TEST TYPOLOGY: |
BOD |
|
PRESSURE RANGE: |
500 ÷ 2000 mbar (hPa) |
|
BOD SCALES: |
90, 250, 600, 999, 4000 ppm, higher values after dilution |
|
BOTTLE VOLUMES: |
500 ml |
|
DATABOX SENSOR CAPACITY: |
Up to 48 REPIROMETRIC Sensor |
|
DATABOX POWER SUPPLY: |
USB / Plug |
|
CONNECTIVITY: |
Ermes via Wi-Fi / RESPIROSoft™ via USB |
|
SAMPLING TIME: |
From 2h to 48h, depending on test duration |
|
MEASURING PERIOD: |
From 5 to 30 days |
|
DATA STORAGE: |
On sensor, RESPIROSoft™ Database, Ermes Cloud |
|
SENSOR CONSTRUCTION MATERIAL: |
Technopolymer |
|
SENSOR DIMENSIONS (WXHXD): |
50x70x70 mm |
|
SENSOR POWER: |
2 W |
|
SENSOR BATTERY TYPE: |
CR 2430 |
|
STIRRING STATION POWER SUPPLY: |
230V / 50-60Hz or 115V / 60Hz |
|
STIRRING STATION DIMENSIONS (WXHXD): |
270x300x185mm |
|
WEIGHT: |
Sensor: 80g, Stirring Station: 1Kg |
|
SAFETY CLASS: |
IEC/EN61010-1 |
|
PROTECTION DEGREE: |
IP 54-EN 60529 |
