PRODUCT |  AMI Series Magnetic Stirrers

  •  Product name : AMI Series Magnetic Stirrers
  •  Category : Magnetic Stirrer » Velp
  •  Catalog : AMI_Series_Magnetic_Stirrers_support.pdf

Description

AMI Series Magnetic Stirrers

Single-position or 4-position illuminated magnetic stirrer, particularly useful for titrations.



Rugged Design

- Control panel is shielded from liquid spills

- Epoxy-coated tough steel casing

- Designed for the longest lifespan and guaranteed by 3 years warranty



Choice of Capacities

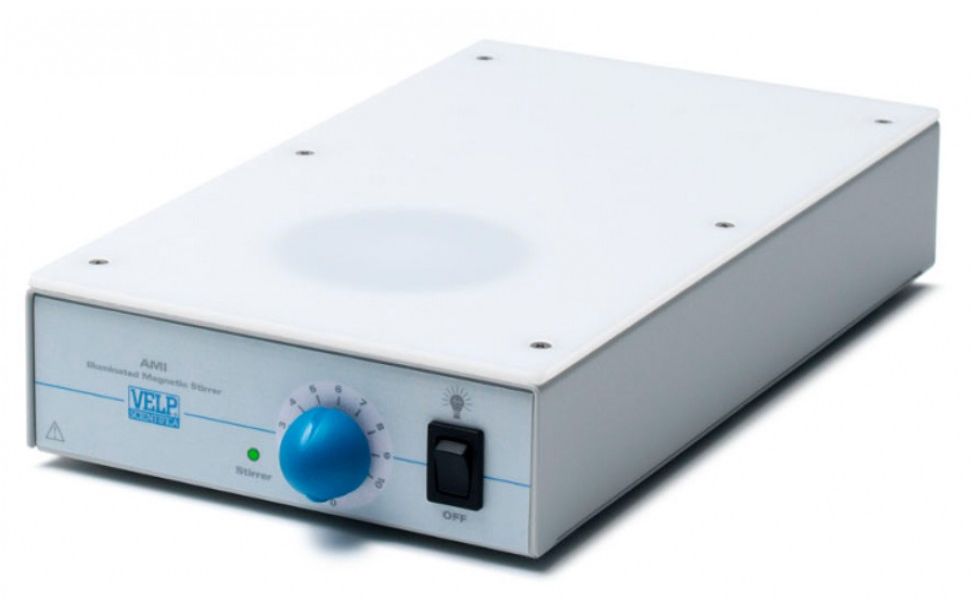

- AMI: 1 place, maximum 5 liter flask

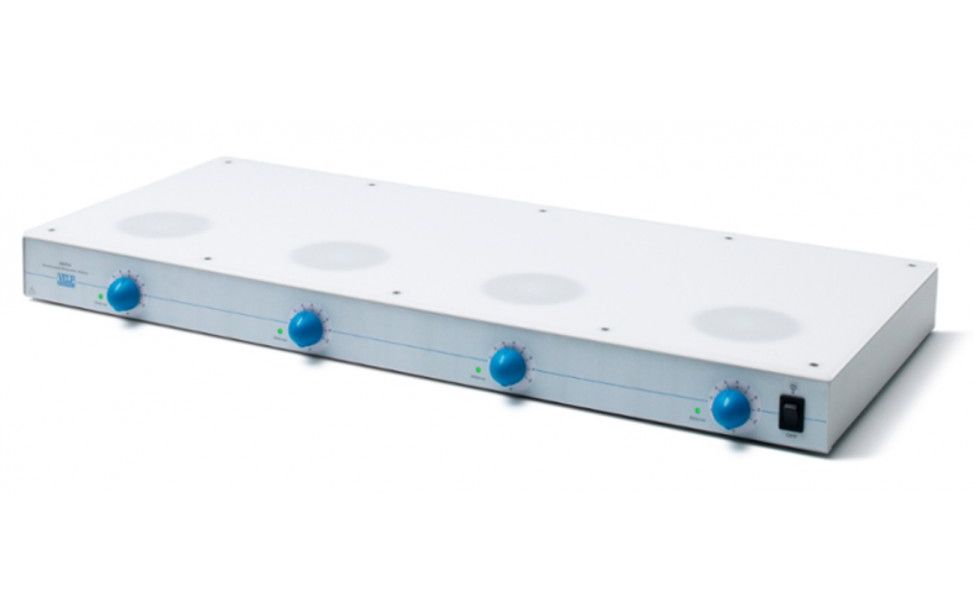

- AMI 4: 4 places, maximum 4 x 5 liter flasks (max. Ø 150 mm)



Applications Oriented

- Illuminated surface for visualization of particles and color changes

- Ideal for microtitration, in particular for subtle color changes

- Soft start but rapidly reaching set speed

- Excellent speed control (electronic), even at low speed



Convenient Operation

- Ergonomic - very low height

- 4-position model provides independent speed regulation

- Speed regulation up to 1100 rpm

- Universal mains voltage range

- Light weight



GENERAL FEATURES :

Models:

- AMI, Single-position, 100-240 V / 50-60 Hz, Cat. No. : F204A0167
- AMI 4, 4 positions, 100-240 V / 50-60 Hz, Cat. No. : F204A0168

Construction material:

epoxy painted metal structure

Stirring volume (H2O):

up to 5 liters per position

Distance between stirring position centres:

AMI 4 : 150 mm

Power:

AMI : 1.2 W
AMI 4 : 4.8 W

Weight:

AMI : 1.2 Kg (2.6 lb)
AMI 4 : 4.0 Kg (8.8 lb)

Dimensions (WxHxD):

AMI : 150x55x270 mm (5.9x2.2x10.6 in)
AMI 4 : 600x55x270 mm (23.6x2.2x10.6 in)





PERFORMANCE



Electronic speed regulation:

up to 1100 rpm

Speed regulation:

excellent speed regulation even at low number of revolutions

Stirring system:

high-power driving magnet type ''PCM'' operated by a mono-phase motor for continuous operation



This product is delivered with European plug by VELP Scientifica, with US plug by VELP Inc.
