PRODUCT |  ARE-6

  •  Product name : ARE-6
  •  Category : Magnetic Stirrer with Hotplate » Velp
  •  Catalog : ARE-6_support.pdf

Description

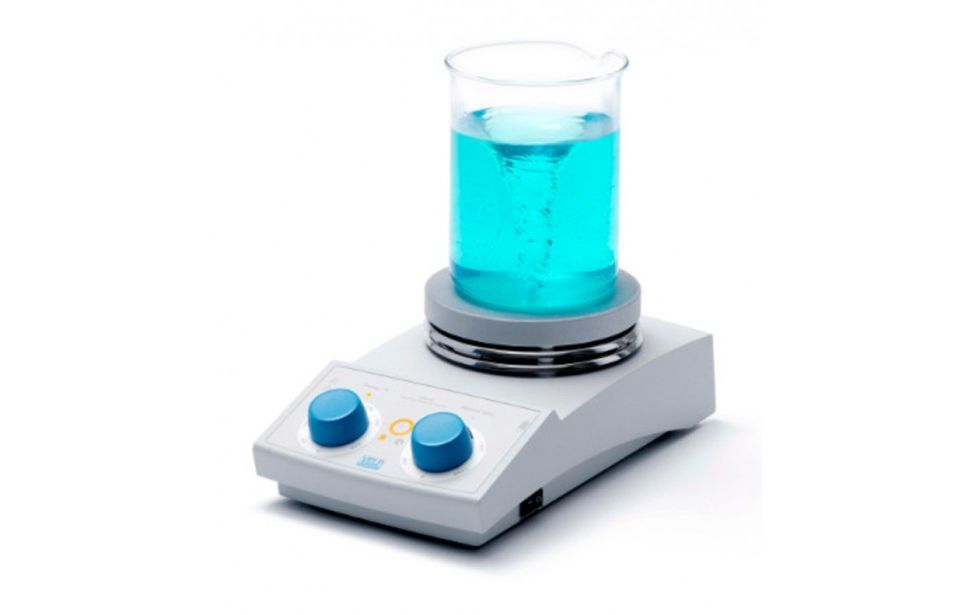

ARE-6 Advanced Aluminum Hot Plate Stirrer

Versatile hot plate stirrer with powerful motor, enhanced magnet coupling and excellent resistance to chemicals, hot top warning and safety heating switch.



Superior Safety Features

- The luminous safety heating switch prevents unintentional heat up

- The illuminated hot top icon informs the operator when the top plate temperature is above 50°C

- Resistant die-cast housing (IP 42) for maximum protections of the internal part of the instrument.

- The stirring speed ramps up gently avoiding spillages risks

- The optional and tailor-made Silicon Protective Cover protects the stirrer from spillage damages



Engineered for Performances & Usability

- The aluminum alloy plate ensures optimum heat transfer

- Accurate plate temperature control up to 370°C

- Extremely powerful brushless motor able to stir from 30 up to 1700 rpm

- The torque compensation technology SpeedServo™ maintains the rpm constant as viscosity changes

- The new Alnico Magnet provides state-of-the-art magnetic coupling and guarantees superior peripheral stirring

- Accepts up to 20 liter flasks



TECHNICAL DATA :

Model

ARE-6, 230 V / 50-60Hz, Cat. No. F20500462

User Interface

Analog

Motor

Brushless

Plate Material

Alluminum Alloy

Plate Diameter

135 mm

Stirring Volume (H2O)

Up to 20L

Stirring Speed Range

30-1700 rpm

Speed Control

Analog

Torque Compensation

SpeedServo™

Temperature Range

Room temp. - 370 °C

Heat Control

Analog

Heat Setting Resolution

Scale

Hot Top Warning System

Illuminated Icon

On/Off Safety-Heating-Switch

Yes

Protection Class

IP42

Dimensions (WxHxD)

160x105x280 mm (6.5x4.1x11 in)

Permissible Ambient Temperature

5-40 °C

Power Input

630 W

Weight

2,6 kg (5.7 lb)
