PRODUCT |  AREX-6

  •  Product name : AREX-6
  •  Category : Magnetic Stirrer with Hotplate » Velp
  •  Catalog : AREX-6_support.pdf

Description

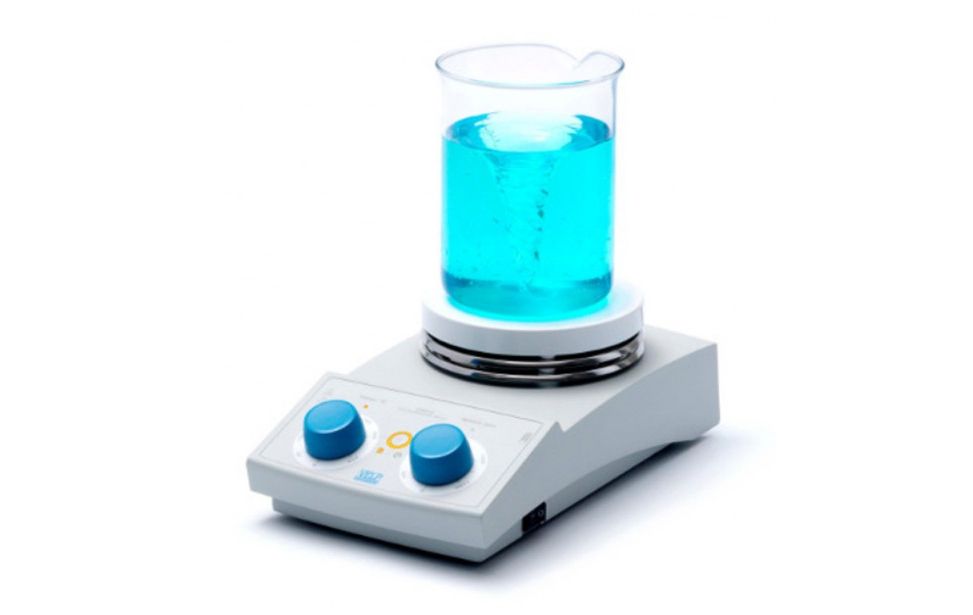

AREX-6 Advanced CerAlTop™ Hot Plate Stirrer

Safe and powerful ceramic coated aluminum hot plate stirrer upgradable with VTF and VTF EVO external digital thermoregulator for direct temperature control of the sample.



Superior Safety Features

- The luminous safety heating switch prevents unintentional heat up

- The illuminated hot top icon informs the operator when the top plate temperature is above 50°C

- Resistant die-cast housing (IP 42) for maximum protections of the internal part of the instrument.

- The stirring speed ramps up gently avoiding spillages risks

- The optional and tailor-made Silicon Protective Cover protects the stirrer from spillage damages



Engineered for Performances & Usability

- The aluminum alloy plate ensures optimum heat transfer

- Accurate plate temperature control up to 370°C

- Extremely powerful brushless motor able to stir from 30 up to 1700 rpm

- The torque compensation technology SpeedServo™ maintains the rpm constant as viscosity changes

- The new Alnico Magnet provides state-of-the-art magnetic coupling and guarantees superior peripheral stirring

- Accepts up to 20 liter flasks



Versatility and Improved Productivity

- Connection for VTF, VTF EVO digital thermoregulators for direct temperature control of the sample with 0,5 °C temperature accuracy

- The VTF and VTF EVO upgrades the AREX-6 performance potential with exclusive features of digital hot plate stirrers

- The MultiAluBlock™ and the new MonoAluBlock™ permit to perform numerous reactions saving time and bench space

- The new Hemispheric Bowls set permits to replace oil baths and mantles in order to perform clean and safe reactions with round bottom flasks

- PTFE Safety Covers are designed to minimize thermal dispersion and increase safety



TECHNICAL DATA :

Models

- AREX-6, 230 V / 50-60Hz, Cat. No. : F20500463

- AREX-6 with VTF Package, 230 V / 50-60Hz, Cat. No. : SA20500463

- AREX-6 with VTF EVO Package, 230 V / 50-60Hz, Cat. No. : SB20500463

User Interface

Analog

Motor

Brushless

Plate Material

CerAlTop™ (ceramic coated aluyminum alloy)

Plate Diameter

135 mm

Stirring Volume (H2O)

Up to 20L

Stirring Speed Range

30-1700 rpm

Speed Control

Analog

Torque Compensation

SpeedServo™

Temperature Range

Room temp. - 370 °C

Heat Control

Analog

Heat Setting Resolution

Scale

External Digital Thermoregulators Connect

VTF/VTF EVO

Hot Top Warning System

Illuminated Icon

On/Off Safety-Heating-Switch

Yes

Protection Class

IP42

Dimensions (WxHxD)

160x105x280 mm (6.5x4.1x11 in)

Permissible Ambient Temperature

5-40 °C

Power Input

630 W

Weight

2,6 kg (5.7 lb)
