PRODUCT |  AREX-6 Digital

  •  Product name : AREX-6 Digital
  •  Category : Magnetic Stirrer with Hotplate » Velp
  •  Catalog : AREX-6_Digital_support.pdf

Description

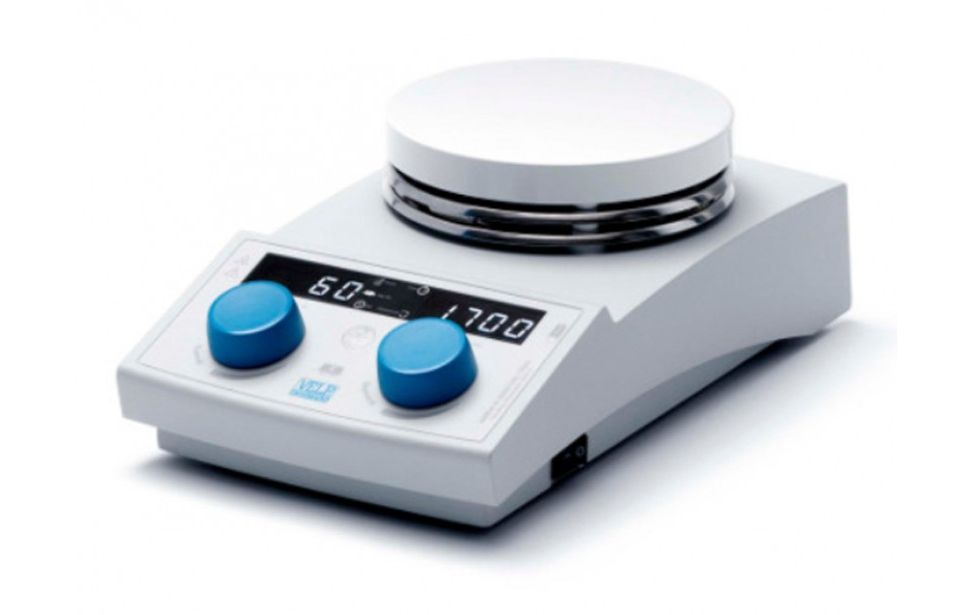

AREX-6 Digital Advanced CerAlTop™ Hot Plate Stirrer
Best in class, safe and powerful digital ceramic coated hot plate stirrer with timer. Complete of Pt100 temperature probe or VTF and VTF EVO (PRO version) digital thermoregulators for direct temperature control of the sample.

Redefining Safety Standards :
- Independent safety circuits protects the instrument in case of overtemperature
- The heat is activated by tapping the knob preventing unintentional heat up
- Hot top warning system prevents potential burning
- Adjustable temperature limit
- Probe alarm detects that the probe is not immersed in the medium and stops the heat
- Resistant die-cast housing (IP 42) for maximum protections of the internal part of the instrument.
- The fast heating CerAlTop™ plate resist to chemicals and scratches ensuring long life-span
- The stirring speed ramps up gently avoiding spillages risks
- The optional and tailor-made Silicon Protective Cover protects the stirrer from spillage damages
- The AREX-6 Digital & PRO are designed for the longest lifespan and guaranteed by 3 years warranty.

Engineered for Performance & Usability :
- PID software controlled thermoregulation for fast, accurate and stable temperature control
- Maximum temperature control accuracy up to 370°C
- Precise temperature setting with resolution of 1°C
- Extremely powerful brushless motor able to stir from 30 up to 1700 rpm (5 rpm steps)
- Accepts up to 20 liter flasks
- The torque compensation technology SpeedServo™ maintains the rpm constant as viscosity changes
- The Alnico Magnet provides state-of-the-art magnetic coupling and guarantees superior peripheral stirring
- The icons and display ensure the operator always to have a clear readout of the working conditions
- The rich advanced menu permits the operator to configure the hot plate stirrer with the most suitable setting for each Lab

Unique Features and Improved Productivity :
- Integrated timer for unattended operations
- Auto-reverse option of the stirring direction for enhanced kinetics
- The MultiAluBlock™ and the new MonoAluBlock™ permit to perform numerous reactions saving time and bench space
- The new Hemispheric Bowls set permits to replace oil baths and mantles in order to perform clean and safe reactions with round bottom flasks
- PTFE Safety Covers are designed to minimize thermal dispersion and increase safety

Choose your preferred Digital solution, take advantage to order with one code a complete solution :
- AREX-6 Digital with Pt100: includes the Pt100 temperature probe with temperature control accuracy of 1°C
- AREX-6 Digital with Pt100, Rod and Clamp: includes the Pt100 temperature probe, Support rod and clamp with temperature control accuracy of 1°C
- AREX-6 Digital PRO with VTF Digital Thermoregulator: includes the VTF and permits the connection of Pt100 (titanium or glass) probe. Temperature control accuracy of 0,5°C with VTF
- AREX-6 Digital PRO with VTF EVO Wireless Digital Thermoregulator: includes the VTF EVO, Wireless DataBox and TEMPSoft for direct control of the operations from the PC. Temperature control accuracy of 0,5°C with VTF EVO.

TECHNICAL DATA :
Models
- AREX-6 Digital with Probe – Package, 230 V / 50-60Hz, Cat. No. : SA20500461

- AREX-6 Digital with Probe, Rod and Clamp – Package, 230 V / 50-60Hz, Cat. No. : SB20500461

- AREX-6 Digital PRO with VTF – Package, 230 V / 50-60Hz, Cat. No. : SB20500460

- AREX-6 Digital PRO with VTF EVO – Package, 230 V / 50-60Hz, Cat. No. : SC20500460
User Interface
Digital
Motor
Brushless
Plate Material
CerAlTop™ (ceramic coated aluminul alloy)
Plate Diameter
135 mm
Stirring Volume (H2O)
Up to 20L
Stirring Speed Range
30-1700 rpm
Speed Accuracy
5 rpm
Speed Control
Digital
Torque Compensation
SpeedServo™
Temperature Range
Room temp. - 370 °C
Heat Control
Digital
Heat Setting Resolution
1 °C
External Digital Thermoregulators Connect
VTF/VTF EVO (AREX digital PRO)
External Probe Connection
Pt100 (AREX Digital & PRO)
Medium Heat Control Accuracy
± 0,5 °C (VTF/ VTF EVO)
± 1 °C (PT100)
Timer
Yes
Auto-Reverse
Yes
Probe Detector
Yes
Hot Top Warning System
On Display
On/Off Safety-Heating-Switch
Yes
Protection Class
IP42
Dimensions (WxHxD)
160x105x280 (6.3x4.1x11 in)
Permissible Ambient Temperature
5-40 °C
Power Input
630 W
Weight
2,6 kg (5.7 lb)
