PRODUCT |  ARE Aluminum

  •  Product name : ARE Aluminum
  •  Category : Magnetic Stirrer with Hotplate » Velp
  •  Catalog : ARE_Aluminum_support.pdf

Description

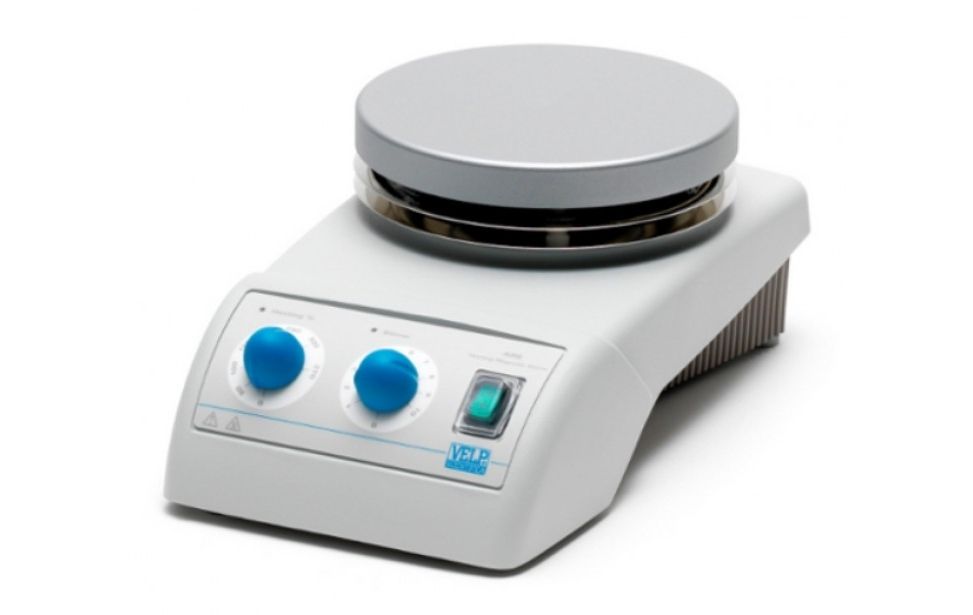

ARE Aluminum Hot Plate Stirrer

Hot plate stirrer widely used in research and development, industrial and university laboratories worldwide.



Excellent Performance :

- Uniform heat distribution with coated aluminum alloy heating plate

- Excellent resistance to chemicals

- Maximum temperature 370 °C

- Accepts up to 15 liter flasks

- Electronic speed regulation up to 1500 rpm

- Excellent speed control, even at low speeds

- SpeedServo™ ensures constant speed even when the viscosity changes

- High power PCM-type driving magnet



Safety Above All :

- IP 42 protected from liquid spills with run-off groove

- Clear communication: front panel shows °C and rpm

- LED interface enriched for alarms

- Designed for the longest lifespan and guaranteed by 3 years warranty



Ergonomic Design :

- Inclined control panel for easy access and visibility

- AluBlocks™ maximize temperature control & save handling time

- Run different tubes by combining AluBlocks™



TECHNICAL DATA :

GENERAL FEATURES



Model

ARE, 230 V / 50-60 Hz, F20500162

Construction material:

epoxy painted aluminium structure

Heating plate:

aluminum alloy coated with special protection

Heating plate diameter:

155 mm

Protection rating CEI EN 60529:

IP 42

Power:

630 W

Weight:

2.6 Kg (5.7 lb)

Dimensions (WxHxD):

165x115x280 mm (6.5x4.5x11 in)





PERFORMANCE



Electronic speed control:

up to 1500 rpm

Temperature regulation:

from room temp. to 370°C

Stirring volume (H2O):

up to 15 liters

Stirring system:

high-power driving magnet type ''PCM'' operated by a mono-phase motor for continuous operation

Counter-reaction:

constant speed
