PRODUCT |  AREX CerAlTop™

  •  Product name : AREX CerAlTop™
  •  Category : Magnetic Stirrer with Hotplate » Velp
  •  Catalog : AREX_CerAlTop™_support.pdf

Description

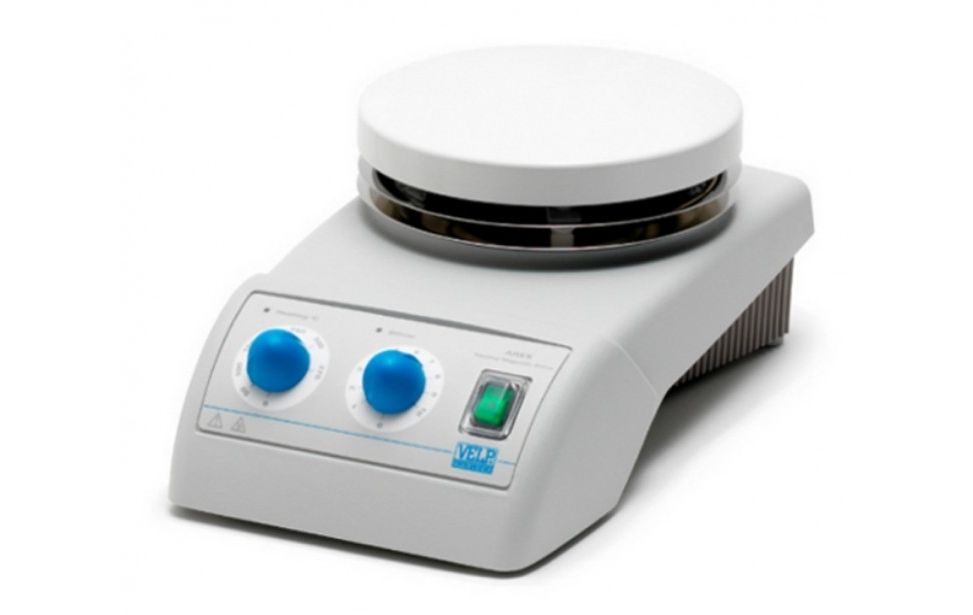

AREX CerAlTop™ Hot Plate Stirrer

Hot plate stirrer with CerAlTop™ aluminum alloy and ceramic coating, that can be connected to VTF Vertex digital thermoregulator for direct temperature control of the liquid.



Premium Quality Performance :

- Outstanding temp. uniformity with CerAlTop™ aluminum alloy heating plate

- Excellent resistance to chemicals scratches and surface abrasions

- Maximum temperature 370 °C

- Accepts up to 20 liter flasks

- Electronic speed regulation up to 1500 rpm

- Excellent speed control, even at low speeds

- SpeedServo™ ensures constant speed even when the viscosity changes

- High power PCM-type driving magnet

- Designed for the longest lifespan and guaranteed by 3 years warranty



Reliable Results :

- Connection for VTF Vertex digital thermoregulator for direct temperature control

- VTF incorporates timer for unsupervised operation and increased productivity

- Connection for VTF EVO Wireless Digital Thermoregulator

- VTF EVO allows the thermoregulation management directly from the PC. Data logging system with ramps and set point setting.



Convenient Format :

- Available stand-alone or packaged with VTF Vertex digital thermoregulator

- Control panel is IP 42 protected from liquid spills with run-off groove

- Clear communication: front panel shows °C and rpm

- LED interface enriched for alarms



Ergonomic Design :

- Inclined control panel for easy access and visibility

- AluBlocks™ maximize temperature control & save handling time

- Run different tubes by combining AluBlocks™



TECHNICAL DATA :

GENERAL FEATURES



Models

- AREX, 230 V/50-60 Hz, F20500413

- AREX with VTF – Package, 230 V/50-60 Hz, SA20500413

- AREX with VTF EVO – Package, 230 V/50-60 Hz, SB20500413

Construction material:

epoxy painted aluminium structure

Heating plate:

aluminum alloy coated with ceramic coating

Heating plate diameter:

155 mm

Vertex connection:

provided

Protection rating CEI EN 60529:

IP 42

Power:

630 W

Weight:

2.6 Kg (5.7 lb)

Dimensions (WxHxD):

165x115x280 mm (6.5x4.5x11 in)





PERFORMANCE



Electronic speed regulation:

up to 1500 rpm

Electronic temperature regulation:

from room temp. to 370°C

Sample thermoregulation:

± 0.5 °C by using the Vertex thermoregulator

Stirring volume (H2O):

up to 20 liters

Stirring system:

high-power driving magnet type ''PCM'' operated by a mono-phase motor for continuous operation

Counter-reaction:

constant speed
