PRODUCT |  VERZUS 750CCD

  •  Product name : VERZUS 750CCD
  •  Category : Hardness Testers » Innovatest
  •  Catalog :

Description

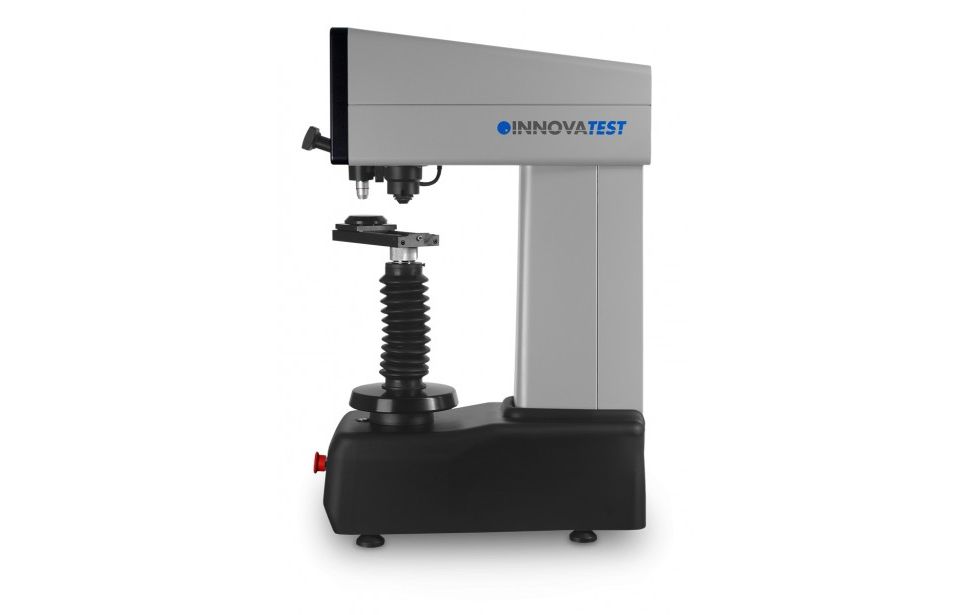

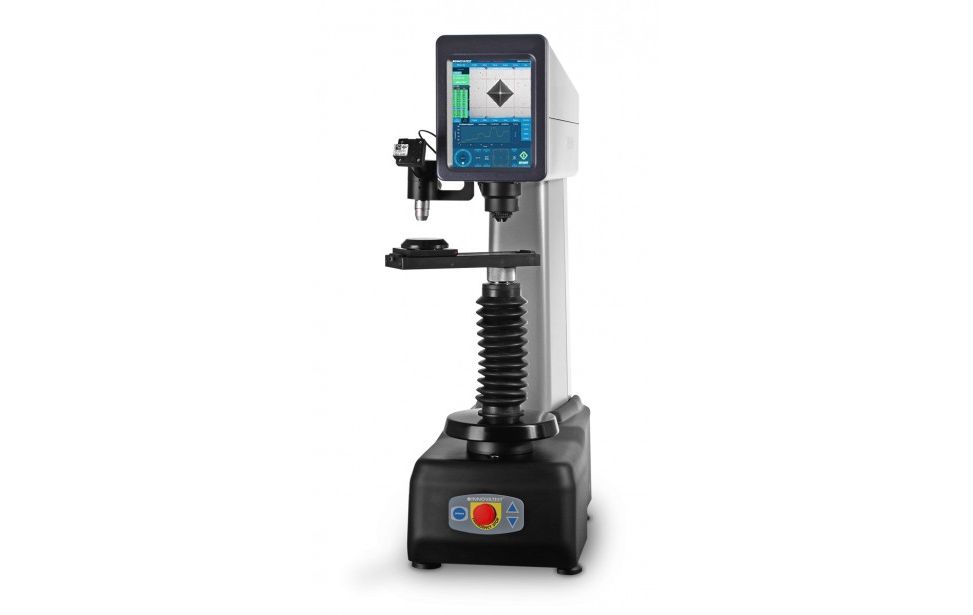

VERZUS 750CCD

UNIVERSAL HARDNESS TESTER



The VERZUS 750 series are a new generation of hardness testing instruments. The testers are constructed around a rock solid C-frame with unparalleled rigidity. The closed loop system based on a load cell and precision force actuator guarantees the best GR & R results ever seen on Rockwell hardness testers.



Features :

- Rockwell, Superficial Rockwell, Brinell, Vickers, Knoop, HBT & HVT, Ball indentation for plastic ISO 2039/1

- Load cell, closed loop force feedback system

- Load range 1Kgf to 250Kgf

- Advanced user interface

- Rockwell Scales: A, B, C, D, E, F, G, H, K, L, M, P, R, S, V, 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y

- Vickers Scales: HV/1Kgf, 2Kgf, 3Kgf, 4Kgf, 5Kgf, 10Kgf, 20Kgf, 30Kgf, 50Kgf, 100Kgf, 120Kgf;

- Brinell Scales: HB1/1Kgf, 2.5Kgf, 5Kgf, 10Kgf, 30Kgf; HB2.5/6.25Kgf, 15.625Kgf, 31.25Kgf, 62.5Kgf, 187.5Kgf; HB5/25Kgf, 62.5Kgf, 125Kgf, 250Kgf; HB10/100Kgf, 250Kgf;

- HVT Scales: HVT/5Kgf – 120Kgf;

- HBT Scales: HBT/5Kgf – 250Kgf;

- Ball indentation for plastic ISO 2039/1

- High resolution ­CCD Video system

- 8.5’’ Industrial HD Touch screen, Embedded Powerful Fanless System Controller, 2x 80GB SSD data storage drive Windows 7 Embedded, RJ45 LAN, WLAN, USB, RS-232

- IMPRESSIONS™, full tester & configuration control, graphic indent simulation, test program setting for user defined test programs, large test results storage, 2 simultaneous conversions to other hardness scales, limit settings, advanced test report generator, CSV export, graphics display engine & many more functions

- Indent ZOOM function

- Motorized elevator spindle (optional)

- Objectives 37.5x, 75x, 150x magnification

- Adjustable LED illumination

- LED Ringlight for dark field illumination (optional)

- Replaceable body parts, shock proof ABS cover

- Precision workpiece sliding table

- Large workpiece accommodation

- On-line statistics and USB output

- Meets or exceeds ISO, ASTM and JIS standards

- Wireless mouse and keyboard



(Please do not hesitate to contact us if you need brochures)
