PRODUCT |  NEXUS 8000XL Series

  •  Product name : NEXUS 8000XL Series
  •  Category : Hardness Testers » Innovatest
  •  Catalog :

Description

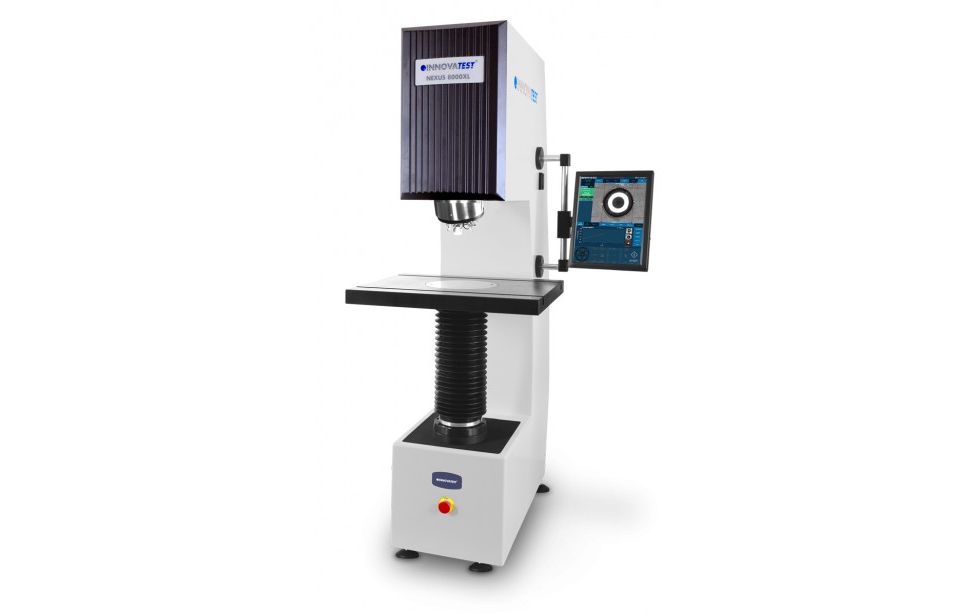

NEXUS 8000XL Series

UNIVERSAL HARDNESS TESTER



The sturdy design of the NEXUS 8000XL Series allows rough workshop conditions.The tester can be used for measuring hardness according to global standards in most of the common hardness scales.



Features :

- Rockwell, Superficial Rockwell, Brinell, Vickers, Knoop, HVT & HBT, Ball indentation for plastic ISO 2039/1

- Load cell, force feedback, closed loop system

- Load range 1Kgf - 250Kgf (8001XL), 3Kgf until 750Kgf (8002XL), 10Kgf until 3000Kgf (8003XL)

- Rockwell Scales: A, B, C, D, E, F, G, H, K, L, M, P, R, S, V, 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y

- Vickers Scales: HV/1Kgf, 2Kgf, 3Kgf, 4Kgf, 5Kgf, 10Kgf, 20Kgf, 30Kgf, 50Kgf, 100Kgf, 120Kgf;

- Brinell Scales: HB1/1Kgf, 2.5Kgf, 5Kgf, 10Kgf, 30Kgf; HB2.5/6.25Kgf, 15.625Kgf, 31.25Kgf, 62.5Kgf, 187.5Kgf; HB5/25Kgf, 62.5Kgf, 125Kgf, 250Kgf, 750Kgf; HB10/100Kgf, 250Kgf, 500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf;

- HVT Scales: HVT/5Kgf – 120Kgf;

- HBT Scales: HBT/5Kgf – 3000Kgf;

- Ball indentation for plastic ISO 2039/1 (scales depending on model)

- Descending test head with 6, 7 or 8 position turret, standard 3 indenters, 3 objectives

- 15’’ Industrial HD Touch screen, Embedded Powerful Fanless System Controller, 2x 80GB SSD data storage drive Windows 7 Embedded, RJ45 LAN, WLAN, USB, RS-232

- IMPRESSIONS™, full tester & configuration control, graphic indent simulation, test program setting for user defined test programs, large test results storage, 3 simultaneous conversions to other hardness scales, limit settings, advanced test report generator, CSV export, graphics display engine & many more functions

- Indent ZOOM function

- High accuracy depth measuring system

- Built-in driver pack for X-Y or Jominy stages

- Workpiece accommodation: maximum test height 490mm or 520mm (XLM), maximum depth 285mm

- Standard workpiece clamping attachment

- Meets or exceeds, ISO, ASTM and JIS standards

- Wireless mouse and keyboard

- Motorized spindle (optional)



(Please do not hesitate to contact us if you need brochures)
