PRODUCT |  FENIX 200 AR

  •  Product name : FENIX 200 AR
  •  Category : Hardness Testers » Innovatest
  •  Catalog :

Description

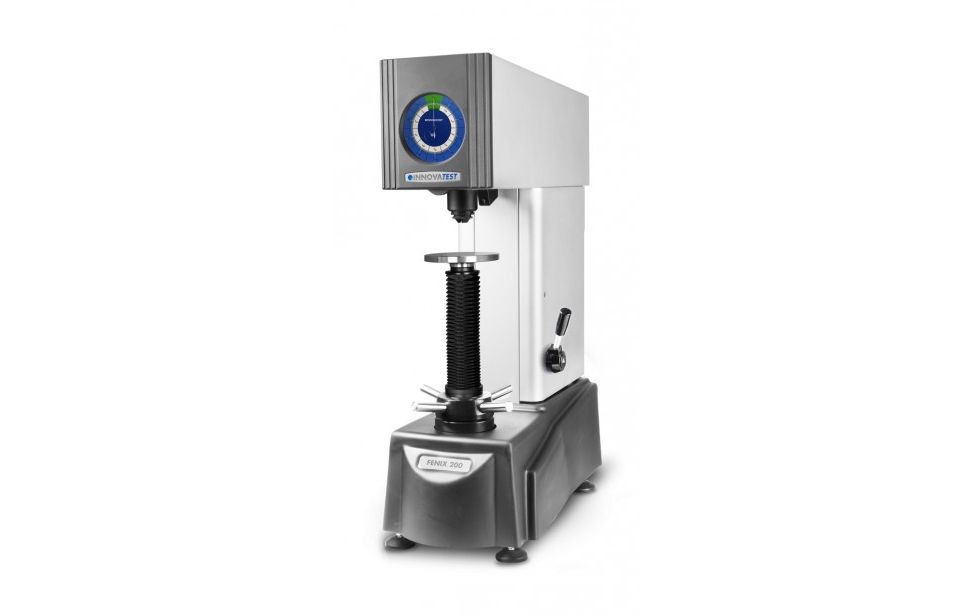

FENIX 200 AR

ROCKWELL HARDNESS TESTER



Fast & affordable Rockwell testing

Quality long life mechanics, readings from a precision analogue indicator.
Load applied from a dead weight force actuator, with solid test load selector design.
The newly designed C frame made out of steel (no casting) provides 100% more rigidity compared to traditional casted designs and assures excellent GR & R results, even after years of use.

The internal system can be easily serviced by removing the side and top covers, no need to turn the machine around.



Features :

- Rockwell scales A, B, C, D, E, F, G, H, K, L, M, P, R, S, V

- Test loads, pre-load 10kgf, main-load 60, 100, 150kgf

- Adjustable hydraulic force speed damper

- Adjustable dial indicator with 0.5 HR Rockwell units

- Throat depth 150mm

- Working height 240mm

- Rockwell EN-ISO 6508, ASTM E-18, JIS Z 2245

- Machine weight (net) 126kg

- Machine dimensions H765mm/W270mm/D555mm



(Please do not hesitate to contact us if you need brochures)
