PRODUCT |  NEXUS 610RSB

  •  Product name : NEXUS 610RSB
  •  Category : Hardness Testers » Innovatest
  •  Catalog :

Description

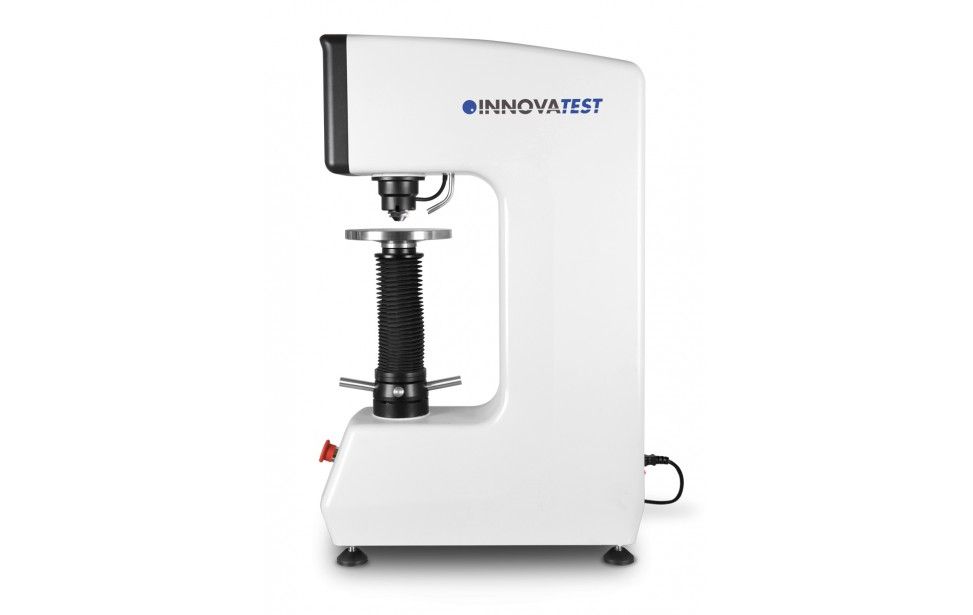

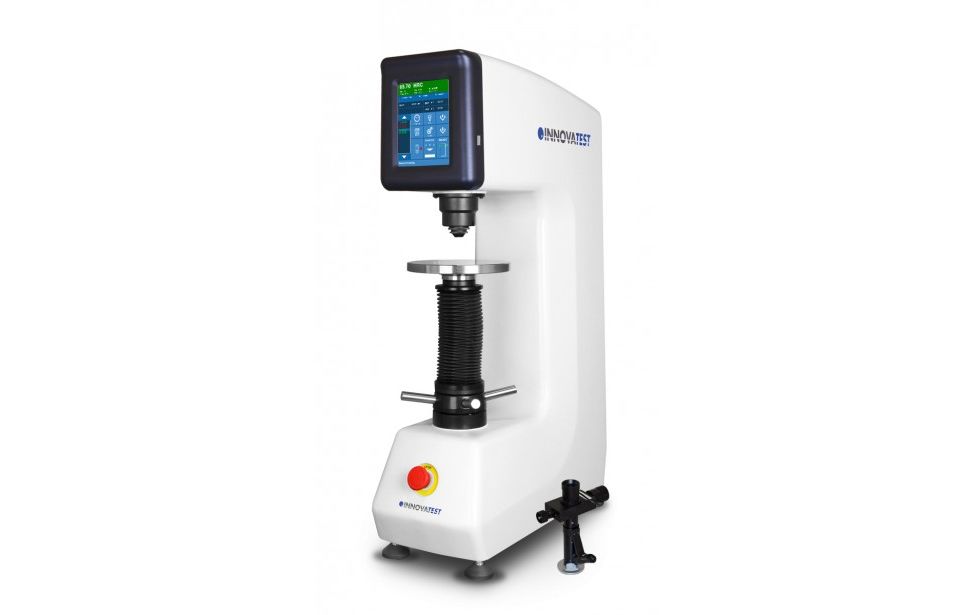

NEXUS 610RSB

ROCKWELL HARDNESS TESTER



The NEXUS 610 series are a new generation of hardness testing instruments. The testers main body is a fine casted rigid structure which incorporates a load cell, closed loop force actuator that provides continuous force feedback information to the advanced electronics set.



Features :

- Rockwell, Superficial Rockwell

- Load cell, force feedback, closed loop system

- Load range 3Kgf to 150Kgf

- Automatic force setting

- Rockwell Scales: A, B, C, D, E, F, G, H, K, L, M, P, R, S, V, 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y

- External Brinell microscope

- 6.5” Full color multi-function touch screen, embedded micro system controller; Windows 7 Embedded, shape correction settings for curved surfaces, Go/No Go function with visual, large memory for measurements with statistic results, report generator, testing program storage

- Easy calibration function

- Unmatched GR & R results in its class

- Excellent accuracy

- Standard workpiece clamping attachment

- Meets or exceeds ISO, ASTM and JIS standards

- Printer & USB (3x), RJ45-LAN, W-LAN (optional), Wi-Fi onboard (optional), Bluetooth (optional) output

- Wireless mouse and keyboard

- Large workpiece accommodation

- Software service over the internet with pre-installed “INNOVATEST® Team Viewer”



(Please do not hesitate to contact us if you need brochures)
