PRODUCT |  NEMESIS 9000RS

  •  Product name : NEMESIS 9000RS
  •  Category : Hardness Testers » Innovatest
  •  Catalog :

Description

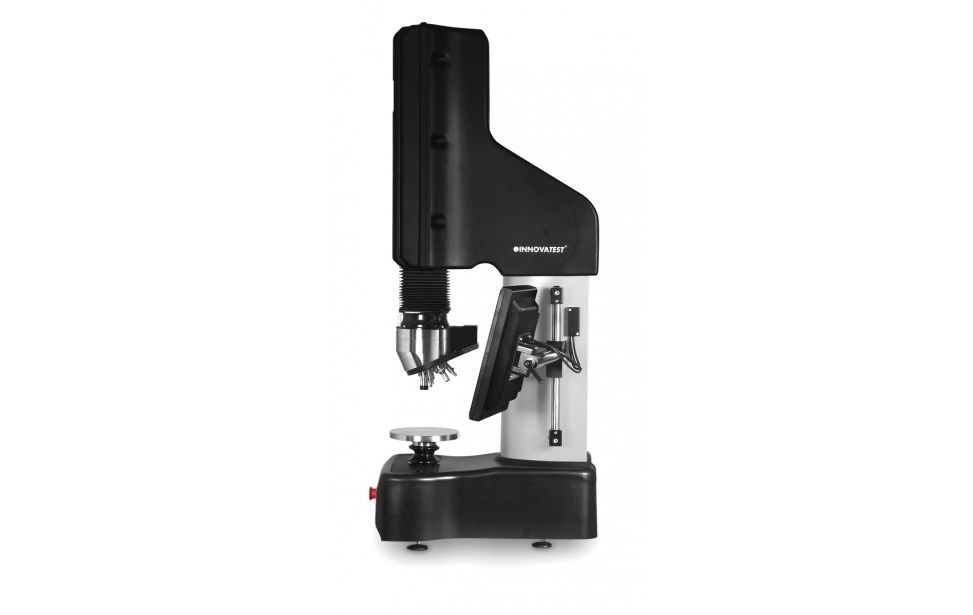

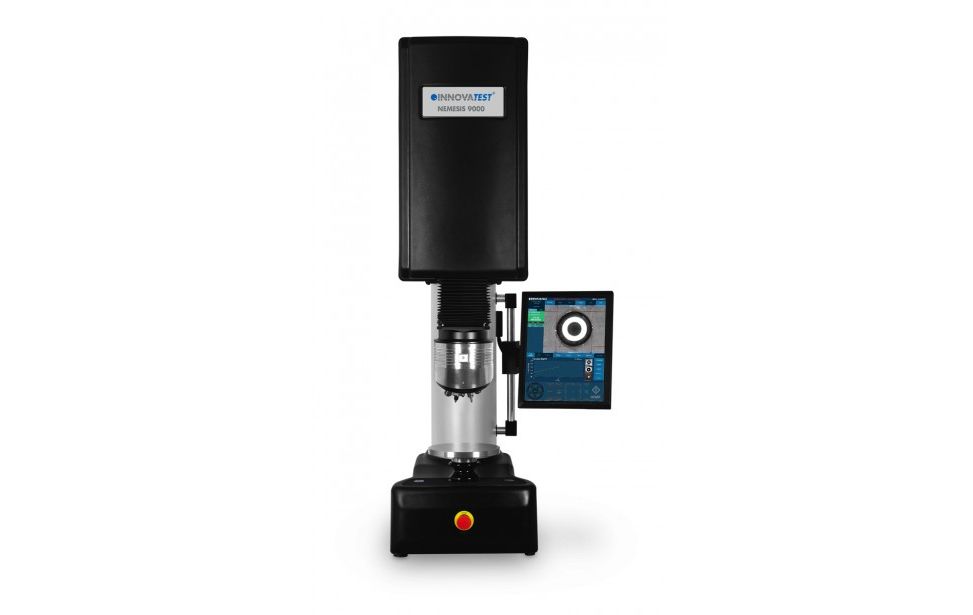

NEMESIS 9000RS

ROCKWELL HARDNESS TESTER



Development of high speed production Rockwell hardness testing. Modern design, innovated technology, multi-purpose hardness testing instrument, based on the application of precision mechatronic components.



Features :

- Reference class standardization Rockwell hardness testing machine

- Load cell, force feedback, closed loop system

- Load range 1Kgf to 250Kgf

- Automatic force setting

- Descending testhead fixed workpiece position

- Rockwell Scales: A, B, C, D, E, F, G, H, K, L, M, P, R, S, V, 15N, 30N, 45N, 15T, 30T, 45T, 15W, 30W, 45W, 15X, 30X, 45X, 15Y, 30Y, 45Y,
- HBT Scales: 5Kgf - 250Kgf;
- HVT Scales: 5Kgf - 120Kgf
- Ball indentation for plastic ISO 2039/1

- Certified depth measuring system, accuracy 0.1µm or 0.02µm (9000RSLAB)

- 15” Industrial HD Touch screen, Embedded Powerful Fanless System Controller, 2x 80GB SSD data storage drives, Windows 7 Embedded, RJ45 LAN, WLAN, USB, RS-232

- IMPRESSIONS™, full tester & configuration control, graphic indent simulation, test program setting for user defined test programs, large test results storage, 5 simultaneous conversions to other hardness scales, limit settings, advanced test report generator, CSV export, graphics display engine & many more functions

- Embedded 5 axis CNC controller (standard)

- Connection for 1 axis or 2 axis CNC motorized X, or X-Y Jominy stages (standard)

- Jominy sample holders (optional)

- Meets or exceeds ISO, ASTM and JIS standards

- Standard workpiece clamping attachment

- Replaceable body parts, shock proof ABS cover

- Wireless mouse and keyboard

- Extra large workpiece accommodation



(Please do not hesitate to contact us if you need brochures)
