PRODUCT |  IBS-DSC & IBS-SSC

  •  Product name : IBS-DSC & IBS-SSC
  •  Category : Laminar Air Flow » Innotech
  •  Catalog :

Description

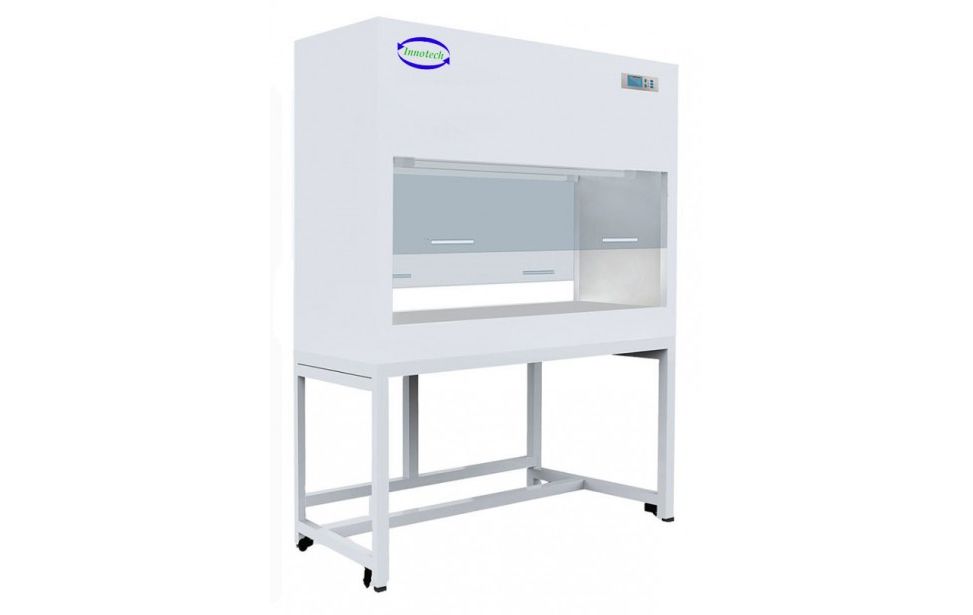

IBS-DSC & IBS-SSC

Vertical Laminar Flow Cabinet - Double Sides Type



Laminar Flow Cabinet-sample protection only, is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.

Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.



TECHNICAL PARAMETERS :

Model

IBS-DSC

BBS-SSC

External Size (WxDxH)

1040x660x1770mm

1440x660x1770mm

Internal Size (WxDxH)

940x560x545mm

1340x560x545mm

Work Surface Height

750mm

Display

LED Display

AirflowVelocity

Average of 0.3~0.5m/s

Material

Main Body : Cold-rolled steel with anti-bacteria powder coating

Work Table: 304 stainless steel

Pre-filter

Polyester fiber, washable

HEPA Filter

99.999% efficiency at 0.3um

Noise

<60dB

Front Window

Manual, 5mm toughened glass, anti-UV

Max Opening

310mm

310mm

UV Lamp

18Wx1

30Wx1

Emission of 253.7 nanometers

LED Lamp

12Wx1

16Wx1

Consumption

350W

600W

Caster

Universal caster with leveling feet

Power Supply

AC 220V±10%, 50/60 Hz; 110V±10%, 60 HZ

Standard Accessory

LED lamp, UV lampx2, Base stand

Optional Accessory

Electric height adjustable base stand

Gross Weight

150kg

186kg

Package Size (WxDxH)

1190x890x1340mm

1590x890x1340mm



(Please do not hesitate to contact us if you need brochures)
