PRODUCT |  IBS-DDS & IBS-SDS

  •  Product name : IBS-DDS & IBS-SDS
  •  Category : Laminar Air Flow » Innotech
  •  Catalog :

Description

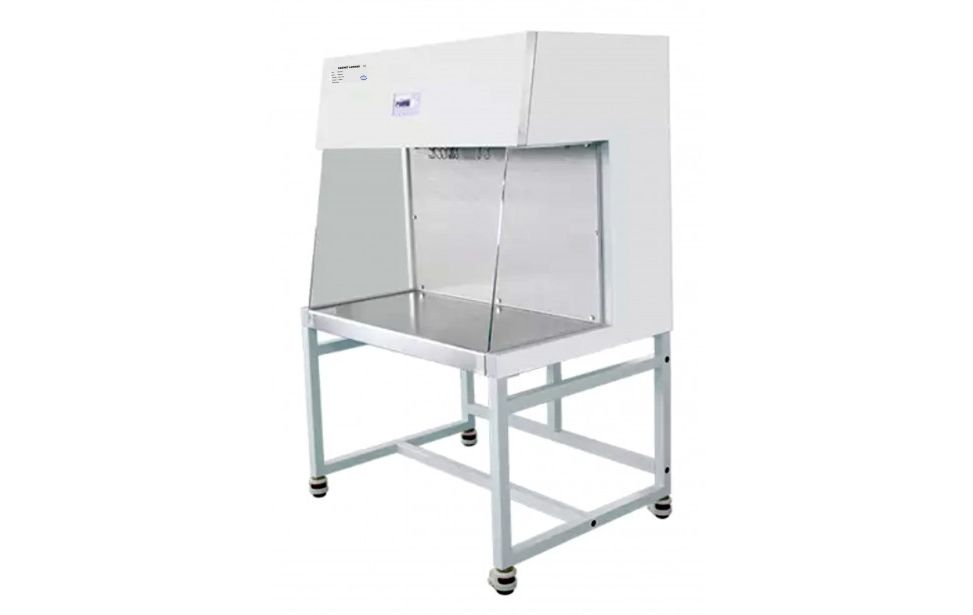

IBS-DDS & IBS-SDS

Horizontal Laminar Flow Cabinet



Laminar Flow Cabinet –sample protection only, is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.

Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.



TECHNICAL PARAMETERS :

Model

IBS-H1100

(Previous name : IBS-DDS)

IBS-H1500

(Previous name : IBS-SDS)

External Size (WxDxH)

1100x808x1690mm

1500x808x1690mm

Internal Size (WxDxH)

1000x500x600mm

1400x500x600mm

Work Surface Height

750mm

Display

LED Display

Airflow Velocity

Average of 0.30~0.45m/s

Material

Main Body : Cold-rolled steel with anti-bacteria powder coating

Work Table : 304 stainless steel

Side Windows : 5mm toughened glass, anti-UV

Pre-filter

Polyester fiber, washable

HEPA Filter

99.999% efficiency at 0.3um

Noise

<60dB

LED Lamp

12Wx1

16Wx1

UV Lamp

20Wx1

30Wx1

Emission of 253.7 nanometers

Consumption

200W

300W

Waterproof socket

Two, total load≤500W

Caster

Universal caster with leveling feet

Power Supply

AC220V±10%; 50/60Hz; 110V±10%, 60Hz

Standard Accessory

LED lamp, UV lampx2,Base stand, Waterproof socketx2

Gross Weight

165kg

179kg

Package Size (WxDxH)

1230x1000x1890mm

1630x1000x1890mm



(Please do not hesitate to contact us if you need brochures)
