Description

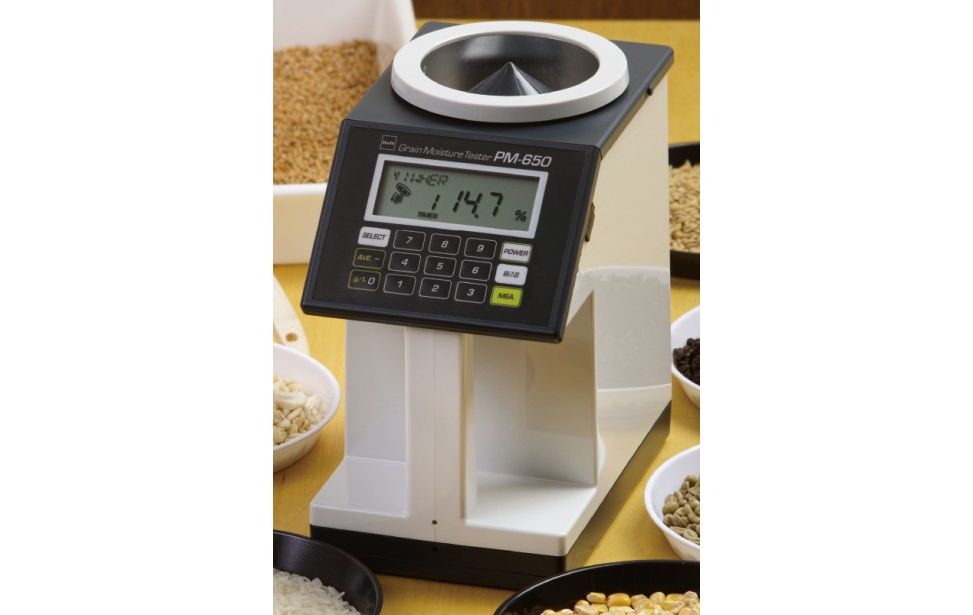

PM-650

Instant Moisture Meter for Grains, Seeds, Coffee and other small products

Kett has developed a variety of highly successful moisture meters for portable use. The PM-650 is the latest in our product line and is indispensable for the grain, seed, and coffee industries. The PM-650, version 6501 is a general purpose instrument for worldwide use. It will measure a wide variety of applications including wheat, corn, sunflowers, hazelnuts, coffee, tea. etc. Up to 150 applications may be installed.

• Wide Measurement Range :

The PM-650 can measure the moisture content in grain and seed samples between 1-40% depending on the grain and the PM-650 version.

• Automatic density and temperature correction :

The capacitance principle is affected by both density and temperature. The PM-650 includes an integrated scale and thermistor to automatically compensate for variation in both, ensuring accurate moisture measurement each time.

• Sample density (g/l) is provided :

The PM-650 automatically calculates the sample density (sample weight/volume).

• Printer and data output options :

The PM-650 can be connected to an optional thermal printer or PC.

• Stable load cell :

Improvements in the load cell provide even better weight measurement stability when compared with our earlier models.

• Versatile operation :

Lightweight, easy to hold, large buttons, audible and display icons make the PM-650 an instrument anyone can use, in almost any environment.

Specification :

- Measuring principal : Capacitance (Dielectric) (50MHz)

- Applications : Grains, Seeds, etc. (application dependent)

- Measurement range : 1-40% (sample dependent)

- Precision : Standard error of 0.5% or less versus drying method (all samples with moisture content of less than 20%)

- Sample volume : 240mL

- Operating temp. range : 0-40?

- Functions : Automatic weight correction by integrated weight scale, Automatic temperature correction by integrated thermistor, Auto-power off, Autodisplay for battery level icon, Average

- Display : Digital LCD

- Power supply : Batteries (1.5V alkaline “AA” size x 4)

- Power consumption : 240mW

- Dimensions & weight : 125(W) x 205(D) x 215(H) mm, approx.1.3kg

- Standard Accessories : Funnel, manual hopper(sample cup), brush, batteries (1.5V alkaline AA size x 4), operating manual.
