PRODUCT | 461880
- Product name : 461880
- Category : Vibration Meter » Extech
- Catalog : 461880_support.pdf
Description

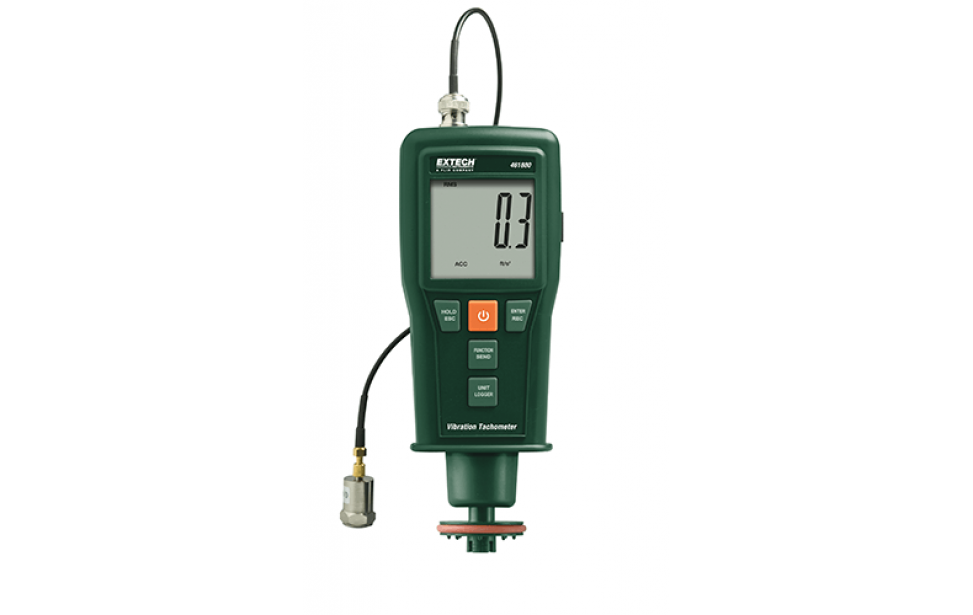

461880
Vibration Meter + Laser/Contact Tachometer
Measures Acceleration, Velocity and Displacement plus RPM and Linear Surface Speed
Features :
- Remote vibration sensor with magnetic adapter on 39"(1m) cable
- Wide frequency range of 10Hz to 1kHz
- RMS or Peak Value measurement modes
- Manual/Auto store/recall up to 1000 readings
- Data Hold and Auto shut-off
- Contact and Non-Contact (Laser) tachometer functions
- Uses a laser for greater distance non-contact measurements up to 4.9ft (1.5m)
- Large LCD with characters on display reverse direction depending on contact, photo, or vibration mode
- Windows® 95/98/NT/2000/XP compatible software (included) allows captured readings to be downloaded to your PC for further analysis
|
Specifications |
Range |
|
Vibration Meter |
|
|
Acceleration |
656ft/s² , 200m/s² , 20.39g (peak) |
|
Velocity |
7.87in/s, 200mm/s, 19.99cm/s (peak) |
|
Displacement |
0.078in, 2mm (peak-to-peak) |
|
Resolution |
1ft/s² , 0.1m/s² , 0.01g; 0.01in/s, 0.1mm/s, 0.01cm/s; 0.001in, 0.001mm |
|
Basic accuracy |
±(5%+2 digits) |
|
Tachometer |
|
|
Photo |
10 to 99,999rpm |
|
Contact |
0.5 to 19,999rpm |
|
Surface Speed |
0.2 to 6,560ft/min (0.05 to 1,999.9m/min) |
|
Basic accuracy |
±(0.05%+1 digit) |
|
Dimensions |
7.4 x 3 x 1.8" (188 x 75.5 x 46.8mm) |
|
Weight |
1.12lbs (507g) |
