PRODUCT |  407860

  •  Product name : 407860
  •  Category : Vibration Meter » Extech
  •  Catalog : 407860_support.pdf

Description

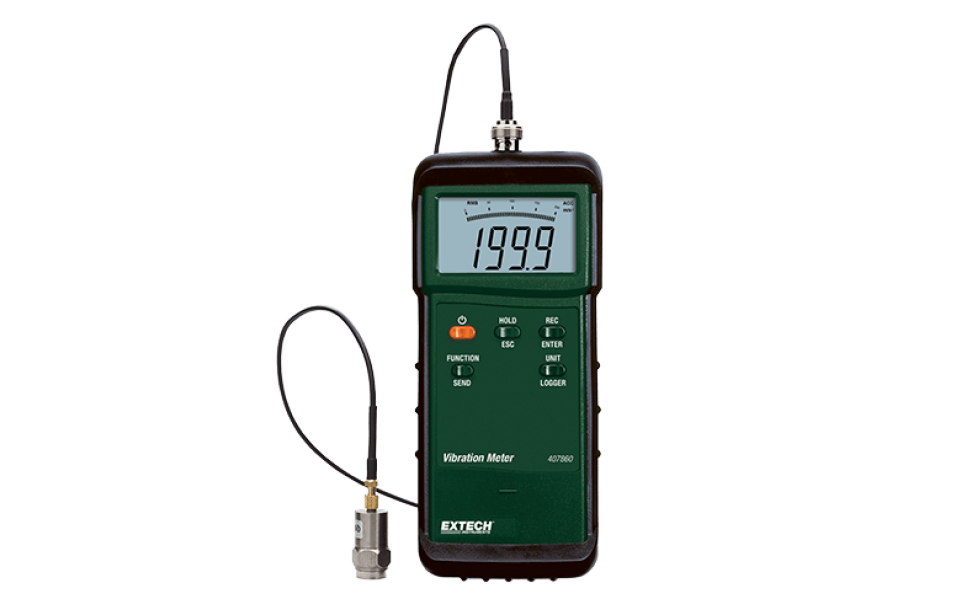

407860

Heavy Duty Vibration Meter



Measure Acceleration, Velocity, and Displacement plus built-in PC interface



Features :

- Ranges - Acceleration: 200m/s², Velocity: 200mm/s, Displacement: 2mm

- Remote vibration sensor with magnetic adapter on 39" (1m) cable

- Record mode stores the maximum and minimum values for later recall

- Wide frequency range of 10Hz to 1kHz

- Resolution to 0.5m/s², 0.5mm/s, and 0.005mm

- Basic accuracy of ±(5% + 2 digits)

- RMS or Peak Value measurement modes

- Data Hold, Auto shut-off

- 9V battery power or optional AC adaptor

- Complete with remote sensor, magnetic mount, 9V battery, protective rubber holster with stand, and hard carrying case



Specifications

Range

Acceleration (max res)

656ft/s² (2ft/s²) or 200m/s² (0.5m/s²)

Velocity (max res)

7.87in/s (0.02in/s) or 200mm/s (0.5mm/s)

Displacement (max res)

0.078in (0.001in) or 1.999mm (0.001mm)

Basic accuracy

±5%

Dimensions (meter)

7.1x2.9x1.3" (180x72x32mm)

Weight (with probe)

0.87lbs (395g)
