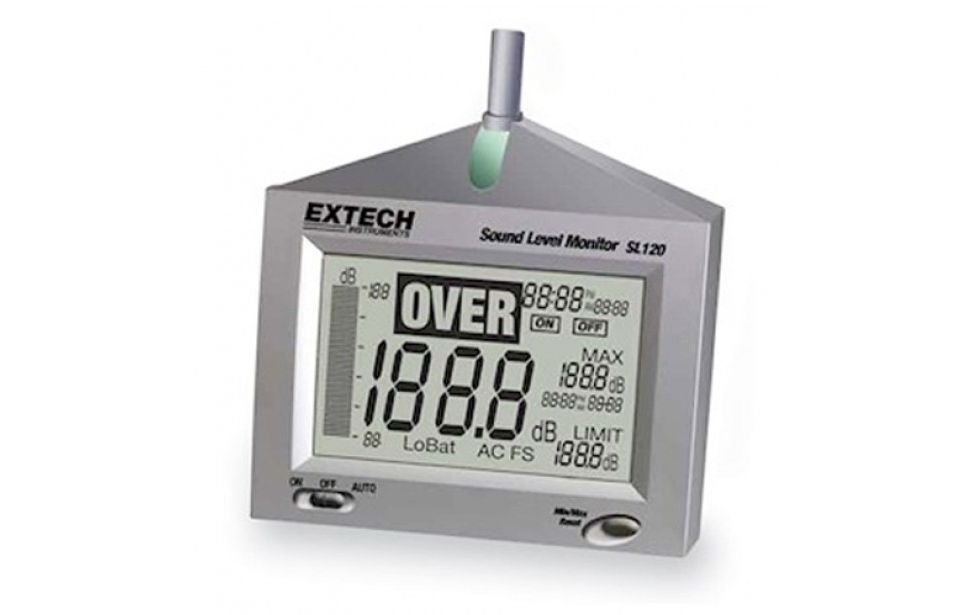

SL120
Sound Level Monitor with Alarm
Unique programmable limit provides a warning when sound level exceeds the setpoint
Specifications :
- Display : 4.6 x 3.125" multifunction LCD
- Frequency bandwidth : 31.5 Hz to 8 kHz
- Microphone : 0.5" Electret Condensor Microphone (remoteable)
- Measurement ranges : 30 to 80dB, 60 to 110dB, 80 to 130dB
- Frequency weighting : ‘A’ and ‘C’ (Programmable)
- Response time : Fast (125ms) / Slow (1s) (Programmable)
- Resolution : 0.1dB
- Alarm output : 3.5mm Mono Phone Plug, Maximum: 3.4mA @ 5 VDC
- Minimum Output Voltage : 2.5 VDC
- Battery life : 240hrs continuous (approx); 30 days @ 8hrs/day
- Dimensions / Weight : 8.75x7.1x1.25" / 0.63 lbs. (22x18x3.2mm / 285g)
