PRODUCT | CG204
- Product name : CG204
- Category : Thickness Gauge » Extech
- Catalog : CG204_support.pdf
Description

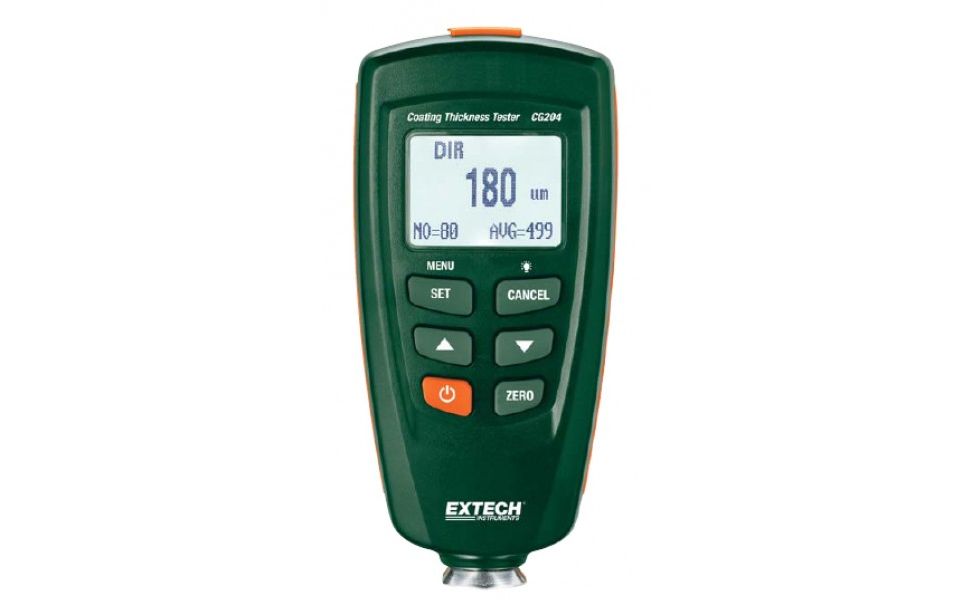

CG204
Coating Thickness Tester
Automatic recognition of ferrous and non-ferrous substrates
|
Specifications |
Ferrous Probe (magnetic induction) |
Non-Ferrous Probe (eddy current) |
|
Range (max res) |
0 to 1250µm (0.1µm); 0 to 49mils (0.004mils) |
0 to 1250µm (0.1µm); 0 to 49mils (0.004mils) |
|
Basic Accuracy |
±3% |
±3% |
|
Min. Curvature Radius |
1.5mm (59.06mils) |
3mm (118.1mils) |
|
Minimum Diameter |
7mm (275.6mils) |
5mm (196.9mils) |
|
Minimum Thickness |
0.5mm (19.69mils) |
0.3mm (11.81mils) |
|
Dimensions/Weight |
4.7x2.4x1.25" (120x6 x32mm)/ 6.17oz (175g) |
|
