PRODUCT | Auto Series Plus
- Product name : Auto Series Plus
- Category : Laboratory Hydraulic Presses Machine » Carver
- Catalog : Auto_Series_Plus_support.pdf
Description

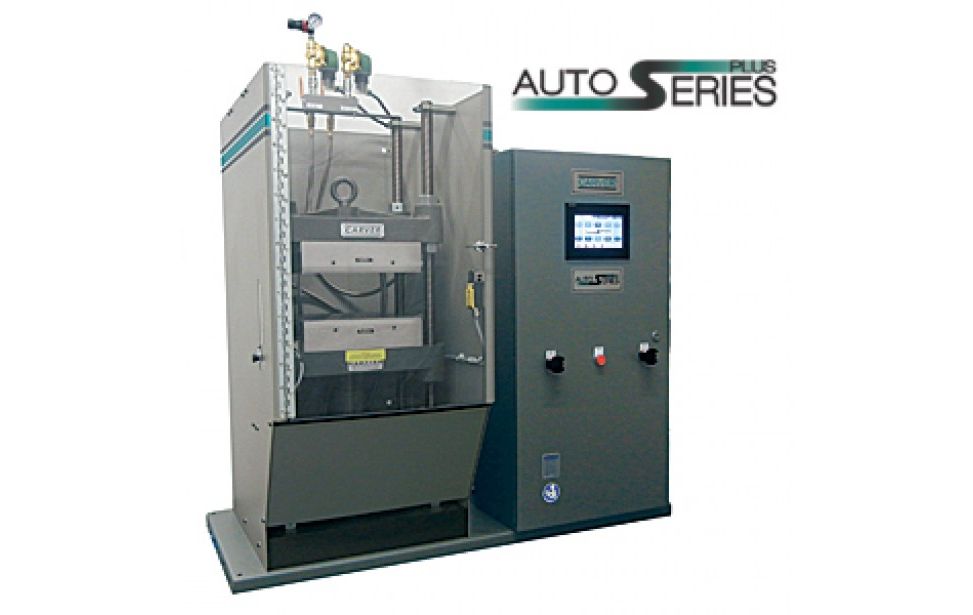

Carver Bench Top Standard Auto Series Plus Model Presses: 15, 25, 30 and 48 Ton Capacity
Carver Auto Series Plus automatic laboratory presses feature a large 7” color touch screen operator interface, enhanced platen temperature control with auto-tuning, ramp heating capability, strorage of up to 250 recipes and real-time trending of force and temperature. Optional features include seven day timer for auto platen heat-up, data logging for cycle parameters, and access to logged data through Wi-Fi. 48 ton models include a wrap-around floor stand.
Auto Series Plus press models are available with 15 to 48 tons of clamping force and 6" x 6" to 19” x 19” platens. These benchtop presses are used in quality control and research and development for test sample preparations, destructive testing, molding, laminating and fluid extraction.
Specifications :
|
Model |
Catalog Number |
Max. Clamp Force, Tons (lb) |
Heated Platens |
Platen Size (in) |
Ram Stroke (in) |
Daylight Opening (in) |
Overall Size W x D xH (in) |
Weight (lb) |
Voltage Supply |
|
Two-Post Model |
|||||||||
|
Auto C-PL |
3888 |
15 |
No |
6 x 6 |
6 |
.75 to 16 |
42.50 x 24 x 45 |
625 |
115/230 |
|
Auto C-PL,H |
3889 |
15 |
Yes |
6 x 6 |
6 |
0 to 13 |
42.50 x 24 x 45 |
670 |
115/230 |
|
Auto M-PL |
3890 |
25 |
No |
9 x 9 |
6 |
.75 to 16 |
42.50 x 24 x 45 |
625 |
115/230 |
|
Auto MH-PL,H |
3891 |
25 |
Yes |
9 x 9 |
6 |
0 to 12 |
42.50 x 24 x 45 |
690 |
230 |
|
Four-Post Model |
|||||||||
|
AutoFour/1512-PL |
3892 |
15 |
No |
12 x 12 |
6 |
1 to 17 |
50 x 29.25 x 46 |
995 |
115/230 1 phase |
|
AutoFour/1512-PL,H |
3893 |
15 |
Yes |
12 x 12 |
6 |
0 to 12 |
50 x 29.25 x 46 |
1,200 |
230 1 phase |
|
AutoFour/1515-PL |
4530 |
15 |
No |
15 x 15 |
6 |
8 to 17 |
50 x 29.25 x 46 |
1,500 |
115/230 1 phase |
|
AutoFour/1515-PL,H |
4531 |
15 |
Yes |
15 x 15 |
6 |
2 to 12 |
50 x 29.25 x 46 |
1,775 |
230 1 phase |
|
AutoFour/3012-PL |
3894 |
30 |
No |
12 x 12 |
6 |
1 to 17 |
50 x 29.25 x 46 |
995 |
115/230 1 phase |
|
AutoFour/3012-PL,H |
3895 |
30 |
Yes |
12 x 12 |
6 |
0 to 12 |
50 x 29.25 x 46 |
1,200 |
230 1 phase |
|
AutoFour/3015-PL |
4532 |
30 |
No |
15 x 15 |
6 |
8 to 17 |
50 x 29.25 x 46 |
1,500 |
115/2301 phase |
|
AutoFour/3015-PL,H |
4533 |
30 |
Yes |
15 x 15 |
6 |
2 to 12 |
50 x 29.25 x 46 |
1,775 |
230 1 phase |
|
48 Ton Auto Series - Design includes wrap around Floor Stand |
|||||||||
|
AutoFour/4815-PL |
5400 |
48 |
No |
15 x 15 |
4 |
6 to 19 |
55 x 36 x 72 |
3,074 |
115/230 1 phase |
|
AutoFour/4815-PL,H |
5401 |
48 |
Yes |
15 x 15 |
4 |
0 to 15 |
55 x 36 x 72 |
3,384 |
230 1 phase |
|
AutoFour/4818-PL |
5402 |
48 |
No |
18 x 18 |
4 |
6 to 19 |
55 x 36 x 72 |
3,074 |
115/230 1 phase |
|
AutoFour/4818-PL,H |
5403 |
48 |
Yes |
18 x 18 |
4 |
0 to 15 |
55 x 36 x 72 |
3,444 |
230 1 phase |
|
Available Options |
|||||||||
|
Item Description |
Catalog # |
||||||||
|
Floor Stand: 51" L-R x 23.5" F-B x 24" H, Wt. 385# for all standard Auto Series Presses (Excluding 48 Ton Models) |
223321D |
||||||||
|
Floor Stand: 51" L-R x 23.5" F-B x 24" H, Wt. 385#, w/6" Casters for all standard Auto Series Presses (Excluding 48 Ton Models) |
223319C |
||||||||
|
Auto cooling option; including manifolds and hoses |
List separate when requesting quote or placing order. |
||||||||
|
Temperature Calibration by instruments traceable to NIST on heated presses |
1525.00003 (sold per controller) |
||||||||
|
Force Calibration Certificate using equipment traceable to NIST |
1525.00001 |
||||||||
|
Additional kits available |
Consult Factory for details |
||||||||
