Description

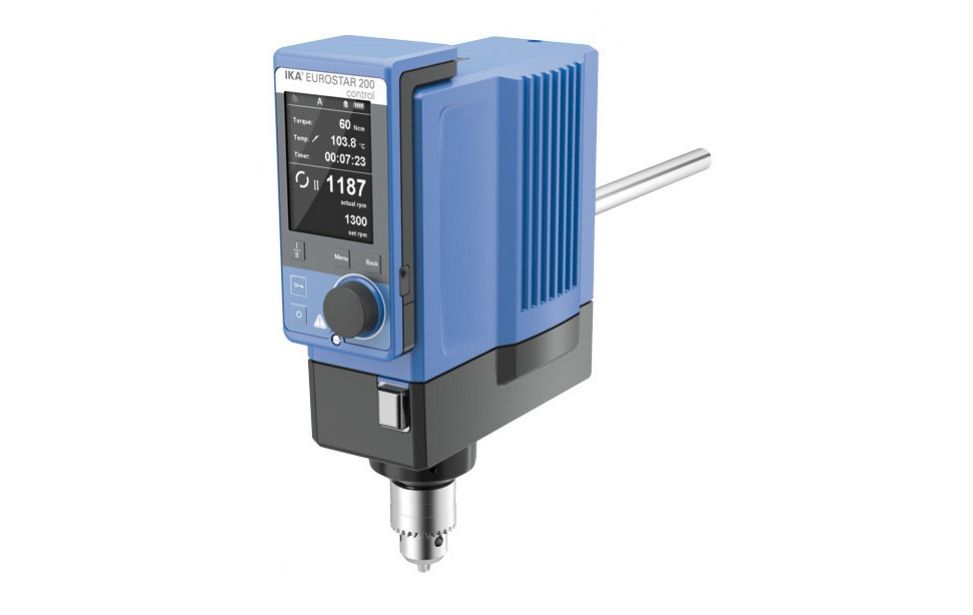

EUROSTAR 200 control

Overhead Stirrers

Extremely powerful laboratory stirrer for highly viscous applications and intensive mixing for quantities up to 100 l (H2O). It is designed with a removable wireless controller and a digital TFT display. It automatically adjusts the speed through microprocessor controlled technology within the speed range of 0/6 - 2000 rpm (two speed ranges). The stirrer comes equipped with a RS 232 and a USB interface to control and document all parameters. An integrated torque trend display is provided for the measurement of viscosity changes. Safety circuits installed ensures automatic cut-off in an anti-stall or overload conditions. Continuous comparison of shaft speed to desired speed is maintained and variations are adjusted automatically. This guarantees a constant speed even with changes in viscosities of the sample.

- Multilingual TFT display

- Programmable functions

- Integrated temperature measurement

- Interval operation

- Timer function

- Adjustable safety circuit

- Locked function

- Infinitely adjustable speed

- Push-through agitator shafts

- Overload protection

- Short-term overload operation

- Slim casing

- Quiet operation

- Error code display

- H 67.60 temperature sensor and WH 11 WiCo holder included in delivery

Technical data :

- Motor rating input : 135W

- Depth : 231mm

- Width : 91mm

- Motor rating output : 84W

- Output max. at stirring shaft : 84W

- Speed range I: speed min. (at 50 Hz) : 6rpm

- Torque max. at stirring shaft : 200Ncm

- Communication distance (depend onbuilding) max. : 150m

- Limit deviation temperature sensor : ≤ ± (0.15 + 0.002xITI)K

- Deviation of speed measurement n < 300rpm : 3±rpm

- Extension arm length : 220mm

- Deviation of speed measurement n > 300rpm : 1±%

- Stirring quantity max. per stirring position (H2O) : 100l

- Accuracy of temperature measurement : ±0.5 + tolerance PT1000 (DIN IEC 751 Class A)K

- Time setting max. : 6000min

- Speed range I: speed max. (at 50 Hz) : 400rpm

- Speed range II: speed min. (at 50 Hz) : 30rpm

- Torque II max. : 40Ncm

- Torque I max. : 200Ncm

- Deviation of torque measurement I : 20±Ncm

- Deviation of torque measurement II : 6±Ncm

- Height : 297mm

- Power input : 130W

- Weight : 4.9kg

- Speed min. : 0/6rpm

- Nominal torque : 2Nm

- Speed range I: speed max. (at 60 Hz) : 400rpm

- Speed range I: speed min. (at 60 Hz) : 6rpm

- Speed range II: speed min. (at 60 Hz) : 30rpm

- Speed range II: speed max. (at 60 Hz) : 2000rpm

- Hollow shaft, inner diameter : 10.3mm

- Plug-in coupling (Ø) : 10mm

- Extension arm diameter : 16mm

- Viscosity max. : 100000mPas

- Housing material : alu-cast coating / thermoplastic polymer

- Motor principle : Brushless DC

- Connection for ext. temperature sensor : PT1000

- Speed display : TFT

- Torque display : yes

- Timer display : TFT

- Torque measurement : trend

- Temperature display : yes

- Speed control : electronic, stepless

- USB interface : yes

- RS 232 interface : yes

- Protection class according to DIN EN 60529 : IP 40

- Stirring element fastening : chuck

- Fastening on stand : extension arm

- Hollow shaft (push-through - when stopped) : yes

- Intermittent operation : yes

- Chuck range max. diameter : 10mm

- Chuck range min. diameter : 0.5mm

- Speed range II: speed max. (at 50 Hz) : 2000rpm

- Setting accuracy speed : 1±rpm

- Temperature measurement resolution : 0.1K

- Voltage : 230V

- Temperature measuring range max. : +350°C

- Time setting min. : 1min

- Speed max. : 2000rpm

- Permissible ambient temperature max. : 40°C

- Permissible ambient temperature min. : 5°C

- Permissible relative humidity : 80%

- Frequency : 50/60Hz

- Temperature measuring range min. : -10°C

- Permissible ON time : 100%

- Timer : yes
