Description

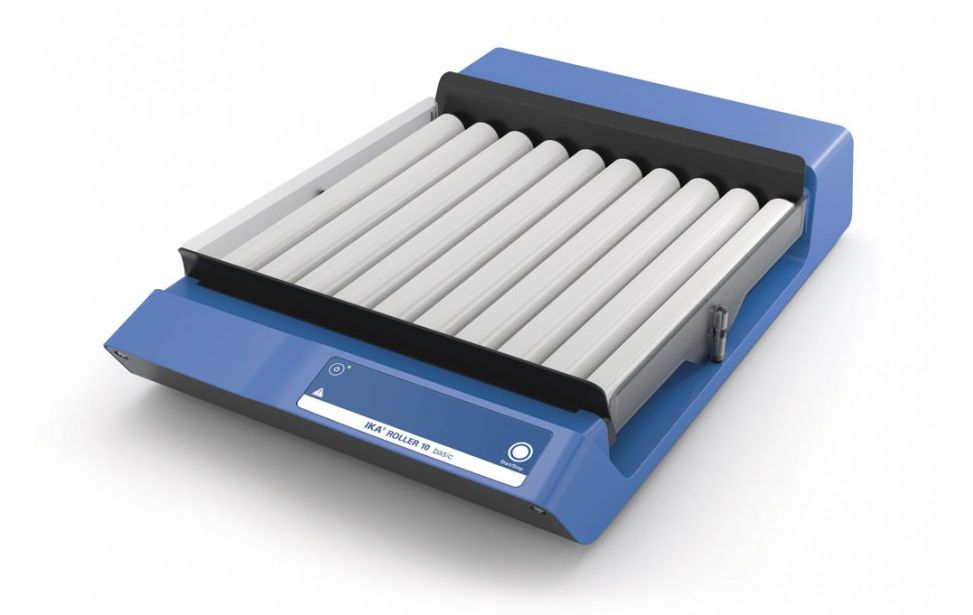

ROLLER 10 basic

Shakers

Roller shaker with 10 rolls provides smooth rocking and rolling action at a fixed speed. Used for mixing blood samples, solid and liquid suspensions and viscous samples. The unit can be used with all conventional tubes and cylindrical bottles. Easily removable attachments provide for quick cleaning in case of sample spills.

- Usable at 4 to 50 °C in incubators

- Suitable for continuous operation

- Removable rolls enable shaking of larger tubes

- Easy operation with touch keypad

- Shaking diameter: 24,5 mm (height)

- Speed range: 30 rpm (fixed)

Technical data :

- Current consumption : 1000mA

- Permissible ambient temperature min. : 4°C

- Power input : 24W

- Weight : 6kg

- DC Voltage : 24V=

- Permissible ON time : 100%

- Permissible ambient temperature max. : 50°C

- Speed fix : 30rpm

- Rolls, Ø : 32mm

- Depth : 545mm

- Height : 115mm

- Width : 380mm

- Rolls, max stroke at roll end : 16mm

- Rolls, luffing angle fixed : 3°

- Rolls, length : 327mm

- Working area length : 350mm

- Frequency : 50/60Hz

- Voltage : 100 - 240V

- Protection class according to DIN EN 60529 : IP 21

- Speed display : none

- Timer display : none

- Shaking table lock : no

- USB interface : no

- RS 232 interface : no

- Analog output : no

- Operating mode : continuous operation

- Touch function : no

- Speed min. : 0rpm

- Permissible relative humidity : 80%

- Rolls, number : 10

- Unit stackable : yes

- Type of movement : rolling

- Rolls, changeable, removable : yes

- Timer : no
