Description

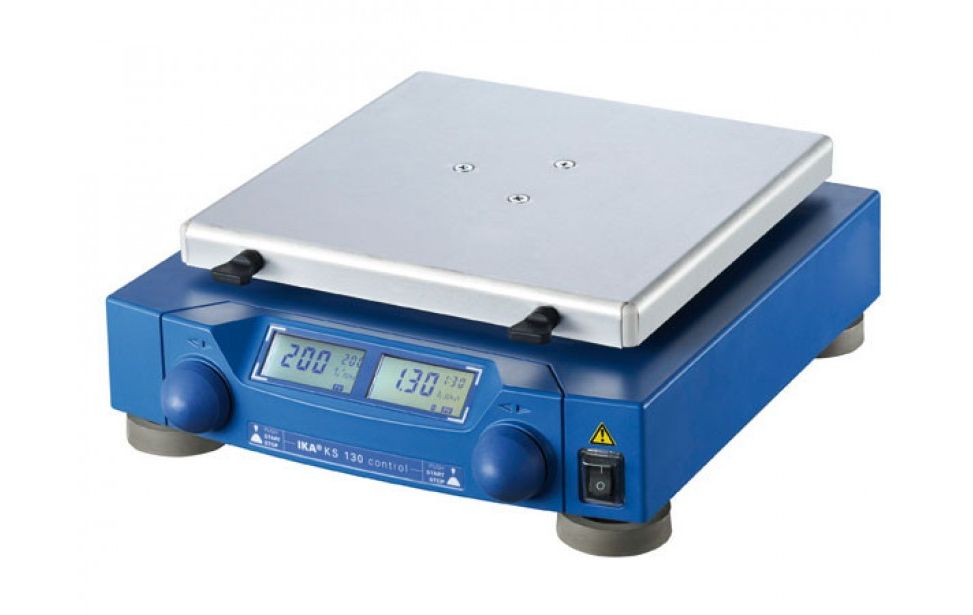

KS 130 control

Shakers

Small, quiet orbital shaker ensures long life with ideal swivel motion, for a maximum shaking weight of 2 kg.

- Electronic adjustment of speed and timer

- A digital display makes it possible to read the speed, timer function and operating modes

- Electronic time switching clock: 0 - 9 h 59min or continuous operation (endless)

- With integrated end point positioning (for automated robot-controlled sampling)

- All functions can be controlled and documented with labworldsoft®

- Wide range of attachment combinations makes it possible to use almost all shapes and sizes of vessels

- Attachments are not included in delivery, please order separately

Technical data :

- Width : 270mm

- Depth : 316mm

- Speed min (adjustable) : 80rpm

- Permissible ON time : 100%

- Shaker diameter : 4mm

- Permissible shaking weight (incl. Attachment) : 2.0kg

- Height : 98mm

- Permissible ambient temperature max. : 50°C

- Weight : 9.8kg

- Voltage : 220 - 240/100 - 120V

- Time setting max. : 599min

- Time setting min. : 1min

- Power input : 45W

- Speed max. : 800rpm

- Motor rating output : 10W

- Analog output : yes

- Speed display : LCD

- Protection class according to DIN EN 60529 : IP 21

- Operating mode : timer and continuous operation

- RS 232 interface : yes

- Type of movement : orbital

- Timer display : LCD

- Shaking table lock : yes

- Frequency : 50/60Hz

- Motor rating input : 45W

- Permissible relative humidity : 80%

- Permissible ambient temperature min. : 5°C

- Speed min. : 0rpm

- Timer : yes
