PRODUCT | ROTAX 6.8
- Product name : ROTAX 6.8
- Category : Overhead Stirrer / Mixer » Velp
- Catalog : ROTAX_6.8_support
Description

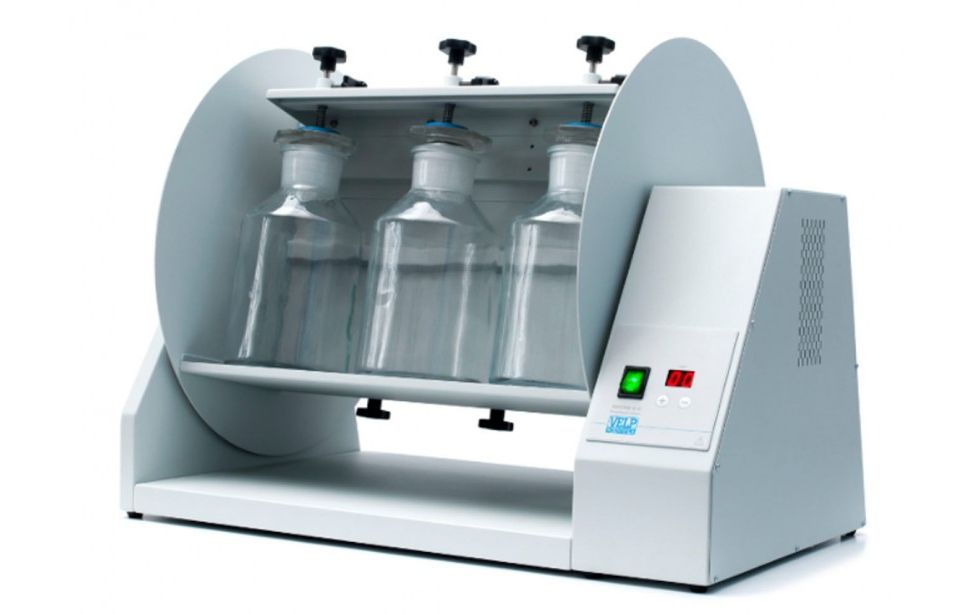

ROTAX 6.8 Overhead Mixer
Overhead mixer that offers excellent performance for all the applications where rotating, shaking and mixing are required.
Applications
Evaluation of pollutants solubility in water, from sludges, sediments and solid wastes by waste treatment plants, waste water treatment plants, laboratories for waste analysis, laboratories for environmental analysis (sludge, sediments)
Accurate Control
- Electronic speed regulation up to 30 rpm
- LCD speed display
- Complies with UNI 10802 and DIN 38414 standards
Convenient & Safe Operation
- Accepts 6 x 2 L or 8 x 1 L bottles (with adapter)
- Rotation stops automatically if blocked
Robust Design
- Strong resistance to chemical and mechanical corrosion
GENERAL FEATURES :
|
Models: |
- ROTAX 6.8, 230 V / 50–60 Hz, Cat. No. : F10600118 - ROTAX 6.8, 115 V / 50–60 Hz, Cat. No. : F10610118 |
|
Construction material: |
epoxy painted metal structure |
|
Number of bottles supported: |
6 bottles of 2-liter capacity |
|
Display: |
LCD |
|
Bottle maximum height: |
1l bottle: 270 mm |
|
Bottle minimum height: |
1l bottle: 200 mm |
|
Bottle maximum diameter: |
1l bottle: 110 m |
|
Power: |
100 W |
|
Power supply: |
115 V or 230 V / 50-60 Hz |
|
Weight: |
30 kg (66 lb) |
|
Dimensions (WxHxD): |
665x520x470 mm (26.2x20.5x18.5 in) |
|
|
|
|
PERFORMANCE |
|
|
Electronic control of speed rotation: |
from 0 to 30 rpm |
|
Resolution: |
1 rpm |
