EA15

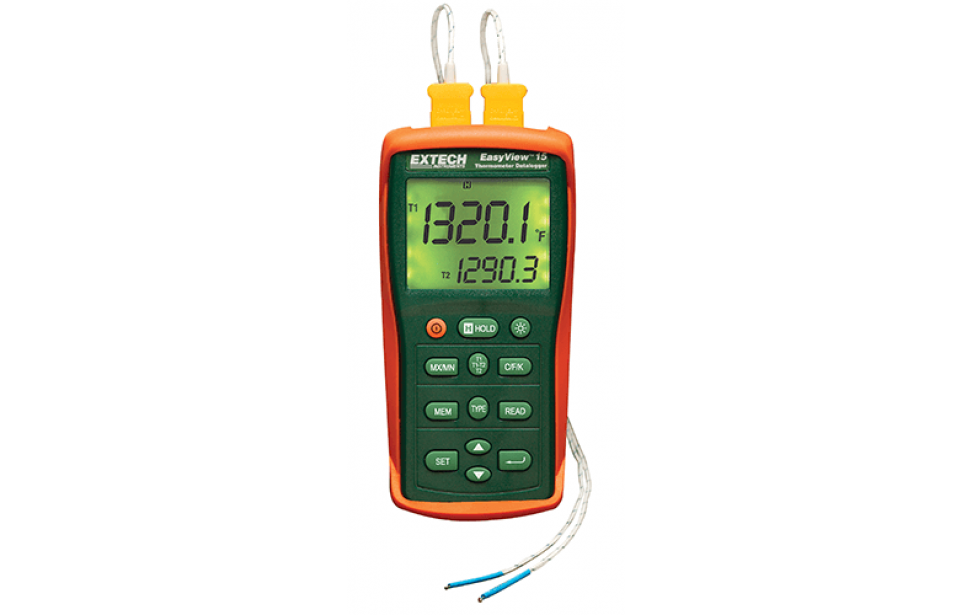

EasyView™ Dual Input Temperature Datalogger
Temperature datalogger compatible with 7 types of thermocouples
EA15 is an EasyView Dual Input Temperature Datalogger capable of-200 Degrees to 1999 Degrees Fahrenheit and -200 Degree to 1360 Degree Celsius measurements. Timer function displays elapsed time plus the time when minimum and maximum readings are taken. Records Max/Min readings for later recall. Built-in datalogger stores up to 8800 data sets. Complete with built-in stand, protective holster, two Type K bead wire temperature probes and batteries.
|
Specifications |
Range |
|
Thermocouple Type J |
-200 to 1994°F (-150 to 1090°C) |
|
Thermocouple Type K |
-200 to 1999.9°F (-150 to 1370°C) |
|
Thermocouple Type T |
-200 to 752°F (-150 to 400°C) |
|
Thermocouple Type E |
-200 to 1598°F (-150 to 870°C) |
|
Thermocouple Type R |
35 to 1999.9°F (2 to 1767°C) |
|
Thermocouple Type S |
35 to 1999.9°F (2 to 1767°C) |
|
Thermocouple Type N |
-200 to 1999.9°F (-150 to 1300°C) |
|
Resolution |
0.1° |
|
Basic Accuracy |
±0.05% rdg (+1.5°F/+0.75°C) Types J,K,E,T,N |
|
±0.05% rdg (+4°F/+2°C) Types R,S |
|
|
Dimensions |
6 x 2.8 x 1.5" (152 x 72 x 37mm) |
|
Weight |
8.3oz (235g) |
