PRODUCT |  HB-2

  •  Product name : HB-2
  •  Category : COD Thermoreactor » Wealtec
  •  Catalog : HB-2_support.pdf

Description

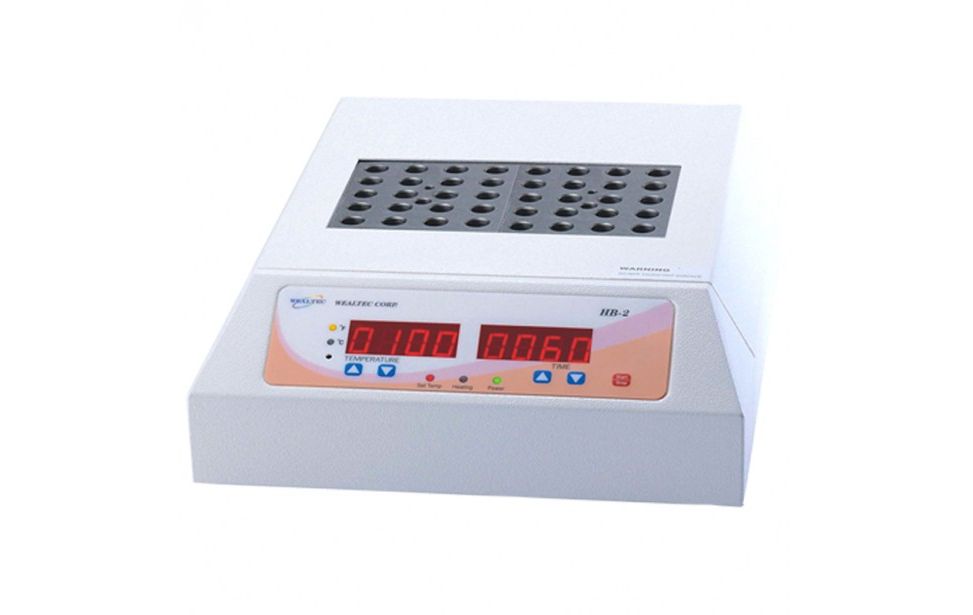

Block Heater (HB-2)

HB-1, dry bath, is a temperature controlled heating block, with wide temperature working range from room temperature to 200°C, less than 1°C deviation. Over temperature cutoff safety design as standard, OFFSET function included. The unit target for nucleic acid / protein denaturation, hot start PCR, enzyme reaction, melting agar, immunoassay, and COD reaction. Various blocks suitable for different size tubes.



Features :

Low cost, safe heating device at laboratory

Selectable wide variety aluminum block

No more external temperature probe

COD reactor.



Specification :

- Temperature range : 30 °C to 200 °C

- Temperature stability : 1 °C @ 100 °C by 120 minutes test

- Temperature uniformity : < 0.5 °C @ 100 °C

- Temperature accuracy : < 1 °C @ 100 °C (@230V/50Hz, 115V/60Hz)

- Temperature controller : Pre-calibrated

- Display and control : Two large size four digital LED display

- Temperature calibration : Built-in and pre-calibrated

- Heating rate : < 18 minutes from ambient to 100 °C @ 230V, 50Hz

- Number of blocks : 2

- Heat power (Watt) : 500W

- Over temperature cutoff : 212 °C

- Timer : 0-999 minutes

- Power : 120/60Hz; 230V/50Hz, voltage variation < 2%

- Cabin dimensions (mm) : 102 x 78 x 46 (W x D x H)

- Physical dimensions (mm) : 310 x 250 x 80 (W x D x H)

- Weight w/o block (kg) : 4.8

- Certification : CE

The spec is subject to change without prior notice.



With a view models as follows :

- HB-2 Block Heater Cat. No. : 1092107, with block extractor and two optional aluminum blocks, 120V

- HB-2 Block Heater Cat. No. : 1092108, with block extractor and two optional aluminum blocks, 230V

- HB-2 Block Heater Cat. No. : 1092021, w/o block, 120V

- HB-2 Block Heater Cat. No. : 1092022, w/o block, 230V
